Mini Crane – 360-Degree Rotating Crane

Are you looking for a compact, flexible, and cost-effective solution for lifting goods and materials? The Mini Crane is the optimal choice.

The equipment can rotate 360 degrees and offers high load capacity, meeting the lifting needs of various types of materials. In particular, mini cranes are affordable and help significantly reduce costs compared to traditional cranes.

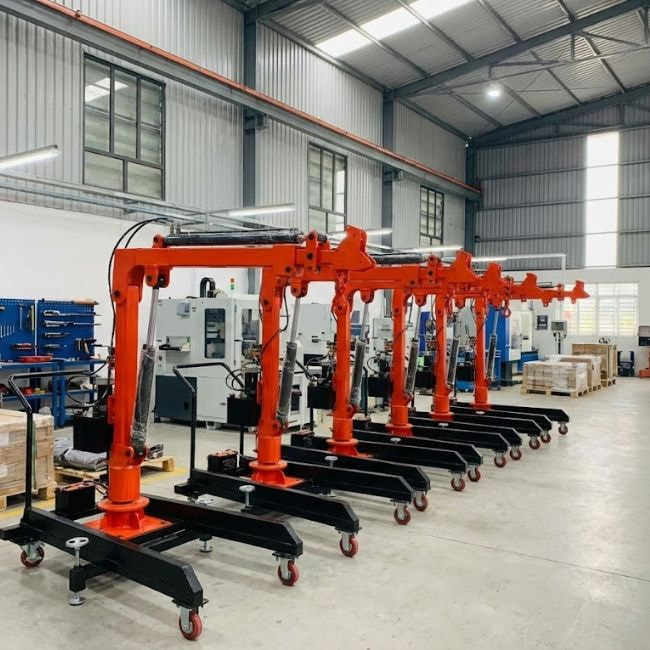

What Is a Mini Crane?

A mini crane, also known as a 360-degree rotating crane, is a compact lifting device designed for handling goods and materials using a crane arm. It features a small footprint, flexible mobility, and easy operation. Mini manual cranes are commonly used in industries such as manufacturing, construction, agriculture, and services to lift loads ranging from several hundred kilograms to several tons.

Key Advantages of Mini Cranes

✔️ Compact size, easy to move and install in confined spaces.

✔️ The crane arm can rotate 360 degrees, allowing lifting from multiple positions.

✔️ Simple structure, easy to operate and control.

✔️ The hook crane can handle high loads, suitable for lifting various materials.

✔️ Significantly more affordable than truck-mounted cranes that cost hundreds of millions of VND.

Disadvantages of 360-Degree Rotating Mini Cranes

Although the product offers many benefits, there are some limitations to consider:

❌ Limited lifting capacity compared to traditional cranes. Typically, 360-degree mini cranes have a maximum capacity of 2–3 tons, making them unsuitable for extremely heavy or bulky materials.

❌ Lower lifting height compared to larger cranes.

❌ More manual operations are required during use.

Structure of a Mini Crane

Mini rotating cranes have a structure that differs from other hydraulic lifting equipment such as hydraulic lift tables. Instead of using a conventional lifting platform, mini hook cranes use a crane arm to lift goods and can rotate 360 degrees.

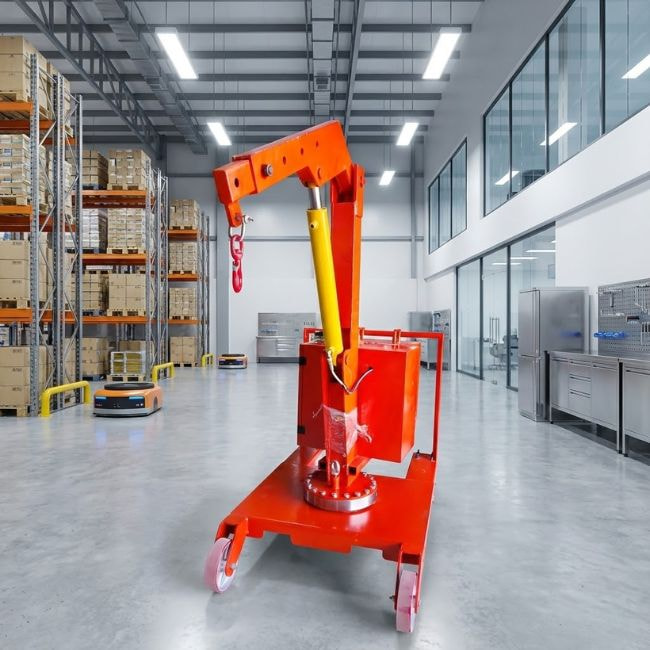

Crane Frame

This is the main load-bearing component of the equipment. The frame is typically made of steel with appropriate thickness and dimensions to ensure rigidity and high load capacity.

The crane frame is commonly designed in an A-shape (mini A-frame crane) or E-shape (mini E-frame crane), helping distribute force evenly and enhance stability during operation.

Crane Arm

The crane arm is mounted on the frame and can rotate 360 degrees, allowing easy access to materials from multiple positions. It is typically made of steel with suitable dimensions.

Accessories such as hooks, pulleys, and lifting cables can be installed on the crane arm to support lifting operations.

Lifting System

Currently, mini manual cranes usually operate using a hydraulic lifting system. Mini hydraulic cranes are popular due to their high stability, affordable cost, and strong load-bearing capability.

This lifting system is responsible for raising and lowering the crane arm.

Control System

This system includes buttons or levers used to control rotation direction, lifting height, and lifting speed.

The control system can be mounted on the crane frame or on a handheld control unit.

Crane Base

The crane base secures the mini crane in place. It is made from steel plates with appropriate size and weight to ensure stability during operation.

Most mini cranes today feature a movable base, known as mobile mini cranes, improving flexibility during use.

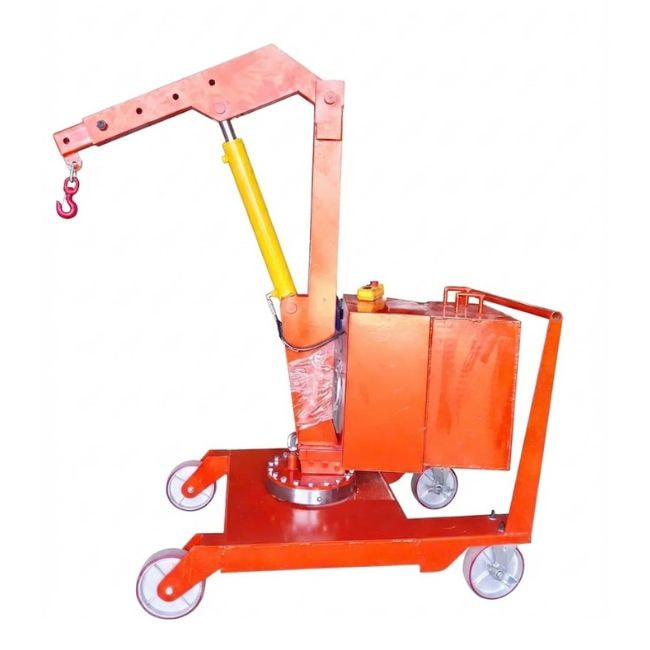

Wheels

The wheel system is attached to the crane base, allowing the equipment to move on flat surfaces. Wheels are typically made of rubber or plastic and sized according to the crane’s load capacity.

Operating Principles

Mini hydraulic cranes operate based on two fundamental principles: hydraulic principles and lever principles.

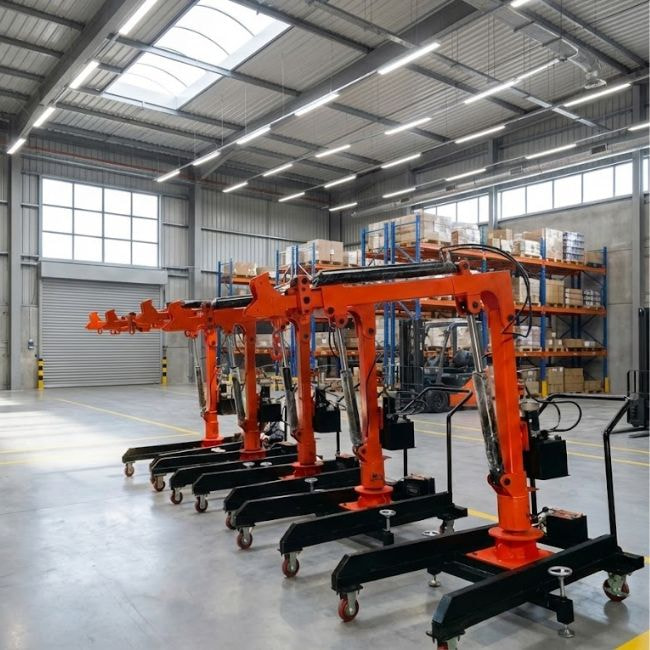

Hydraulic Principle

This principle is used to raise and lower the crane arm as desired by the operator. When the electric motor operates, force is transmitted through the hydraulic pump to generate oil pressure. The oil pressure acts on the hydraulic cylinder, pushing the piston and transmitting force to the crane arm.

Lever Principle

The crane frame and arm are designed based on lever principles to optimize lifting force. The fulcrum, usually the rotation axis, has a significant impact on the lifting capacity of the mini crane.

Basic Operating Process:

Step 1: Start-Up

The operator powers on the equipment by supplying electricity to the hydraulic system from a pre-charged battery.

Step 2: Adjust Rotation and Position

Adjust the rotation and position of the mini crane by moving it to the location of the materials to be lifted. Ensure the safety latch is released before operation.

Step 3: Control

Use buttons or levers on the control system to adjust the lifting height so that hooks, pulleys, or lifting cables can raise or lower the materials.

Step 4: Move

After securing the load to the crane arm, lock the safety latch and move the mini hydraulic crane to the desired position.

Step 5: Lower the Load

Adjust the rotation and position to lower the materials safely. Ensure the safety latch is released before operation.

Step 6: Finish

After completing the lifting operation, turn off the electric motor to stop the equipment.

Popular Types of Mini Manual Cranes

Fixed Mini Crane: Permanently installed in one location, commonly used in factories and warehouses requiring high stability.

Mobile Mini Crane: Equipped with wheels for mobility, commonly used at construction sites and workshops.

Electric Mini Crane: An electrically powered hydraulic lifting device with a compact design, suitable for confined spaces such as factories, warehouses, and construction sites.

Manual Mini Crane: Also known as a hand winch crane, operated using human force combined with a hydraulic system.

360-Degree Rotating Crane: Allows flexible rotation of the crane arm for lifting in multiple directions.

Hook Crane: Uses a hook on the crane arm to lift materials.

Mini Tower Crane: Features a structure similar to traditional tower cranes but in a more compact size.

Mini Construction Crane: Designed for construction sites with 360-degree rotation and the ability to operate in harsh environments.

Mini A-Frame Crane: Simple A-frame structure, easy to use, commonly used in small workshops for lifting light materials.

Foldable 500kg Mini Crane: Capable of lifting up to 500kg and can be folded when not in use to save space.

Cranes with Capacities of 200kg, 500kg, 1 ton, 2 tons: Suitable for a wide range of lifting requirements.

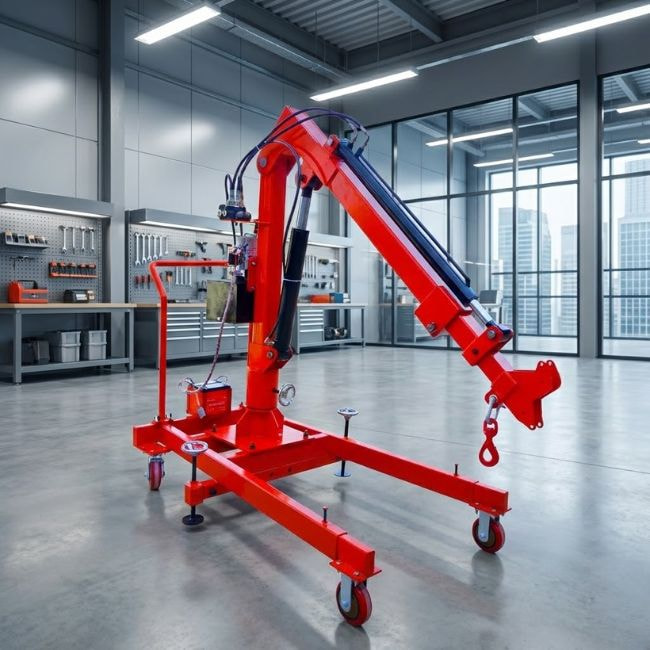

Reliable Supplier of Affordable, Versatile, and High-Quality Mini Cranes

Naltako understands customers’ needs for versatile, high-quality mini cranes at competitive prices.

We integrate the full range of features available on the market into a single product. Our mini rotating cranes meet all key criteria: mobility, flexibility, high load capacity, 360-degree rotation, easy operation, compact design, and reliable performance in harsh environments.

With over 7 years of experience in industrial lifting solutions, Naltako has established its position in the market and become a trusted partner for many businesses.

As a direct manufacturer responsible for design, production, installation, warranty, and maintenance, we offer the most competitive pricing.

Naltako Commitment:

• Supplying genuine mini cranes with high quality and competitive prices.
• Professional engineering team providing free consultation and dedicated customer support.
• Professional installation, warranty, and maintenance services.

Contact Naltako today for consultation and a detailed quotation:

• Website: https://naltako.vn/
• Hotline: 0981.977.898
• Email: nhat.mtk53@gmail.com
