Product Specifications

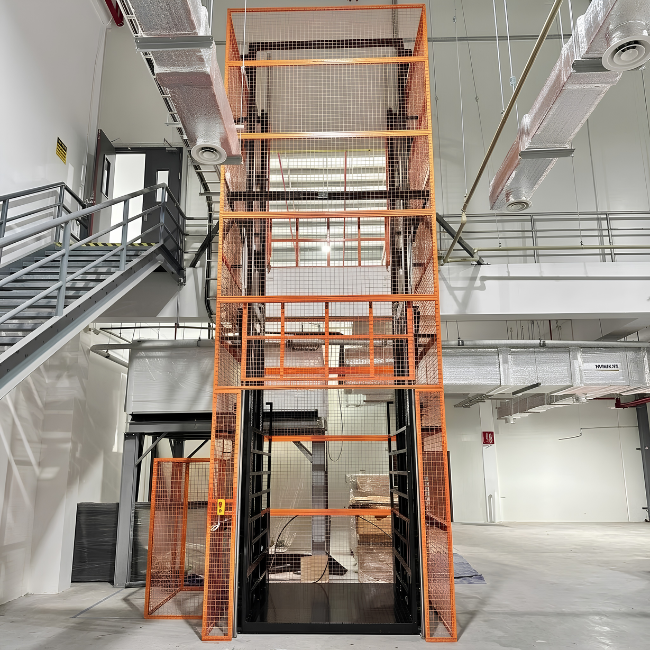

Below is the detailed technical specification table for the 1500kg hydraulic goods lift series, designed and manufactured by Naltako and completed at Token Vietnam Construction Investment Joint Stock Company:

Category	Technical Specification Details
Lifting Capacity	1500kg
Overall Dimensions	Length 2500mm × Width 2300mm
Platform Cabin Dimensions	Length 2000mm × Width 1800mm × Height 2000mm
Cabin Floor Surface	3mm thick anti-slip checkered plate, combined with high load-bearing steel frame
Protective Guardrail	1200mm high, made of 40×40mm square steel tubing
Lifting Travel	4800mm
Number of Stops	2 stops
Lifting/Lowering Speed	8 – 10 m/min
Structural Coating	Protective paint finish, customizable colors upon request
Electric Motor	Elektrim 7.5 KW capacity
Hydraulic Pump	25 L/min pump (Korea)
Oil Tank	80 liters capacity
Hydraulic Cylinders	02 lifting cylinders, diameter 63×55
Control Box	Circuit breaker, Magnetic contactor, Switching relay, Overload indicator light – Input: 380V – Output: 220V – High-grade plastic control box push buttons
Floor Access Doors	01 door/floor (Mechanical interlocking safety sliding door)
Protective Mesh Frame	Welded wire mesh, wire diameter 2mm, mesh size 50×50mm, square tube frame 40×40mm
Included Services	Turnkey transportation, installation, and handover

Note: The above specifications are for reference only. Naltako accepts custom manufacturing, design, and installation of hydraulic goods lifts according to actual dimensions and load capacities.

1000kg Goods Lift

Key Highlights of the 1500kg Hydraulic Goods Lift

The 1500kg hydraulic goods lift series is trusted and put into operation by many investors thanks to its superior capacity and lifting capabilities. Below are the advantages of the product:

Load Capacity and Smooth Operation

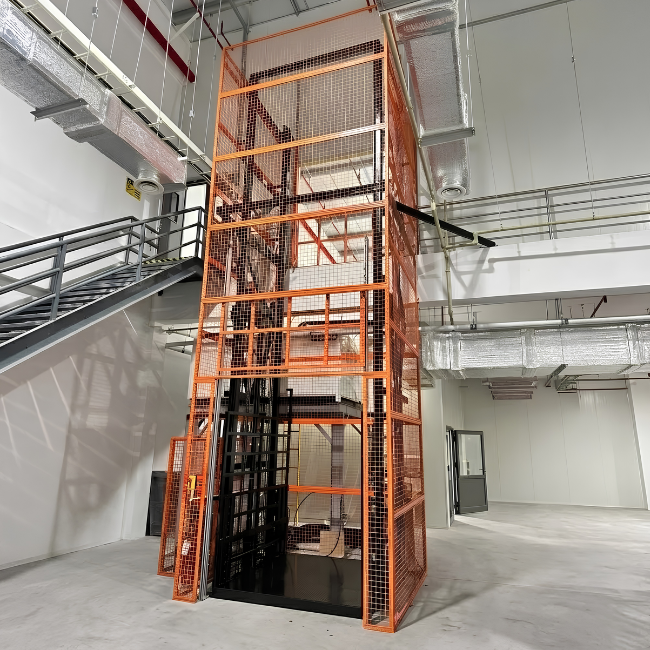

1500kg hydraulic goods lift ensures smooth and quiet cargo lifting and lowering

Equipped with a 7.5KW Elektrim motor combined with a Korean hydraulic pump and two 63×55 diameter lifting cylinders, the 1500kg hydraulic goods lift transports large volumes of cargo extremely smoothly without generating heavy noise.

Sturdy Structure and Absolute Safety

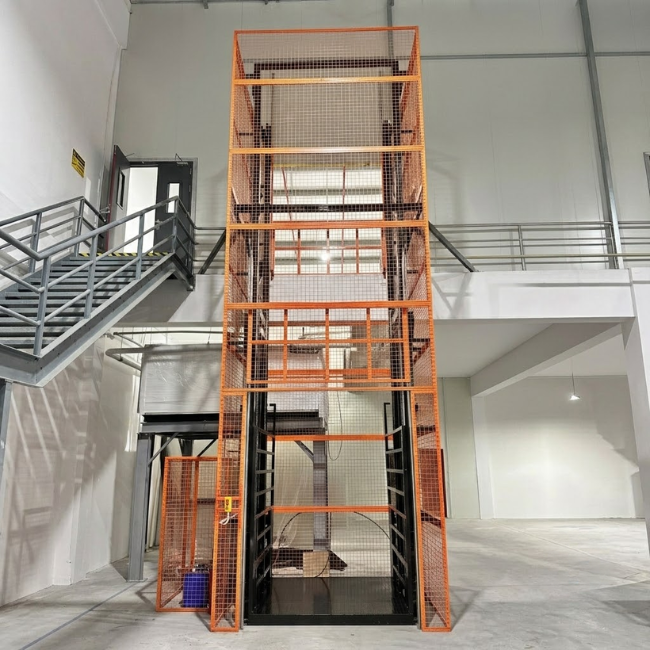

Sturdy steel frame ensures safety for personnel and cargo during operation

The cabin floor surface is covered with 3mm thick checkered plate for effective anti-slip protection, surrounded by a solid welded steel mesh frame system (50x50mm mesh). Coupled with a mechanical interlocking sliding door system and an overload indicator light, it ensures maximum safety for both cargo and operators.

Space and Cost Optimization

With a compact design (overall dimensions 2500x2300mm), the system does not require a deep pit or a complex machine room like passenger elevators, helping significantly reduce infrastructure construction costs.

2-Ton Capacity Hydraulic Goods Lift

Naltako – A Reliable Supplier of Quality Hydraulic Goods Lifts

If you are looking for an optimal lifting solution for your factory, Naltako is proud to be a leading reputable provider specializing in the manufacturing, construction, and installation of industrial lifting equipment.

Standard Quality: Committed to providing 1500kg hydraulic goods lift products that meet high-quality standards with genuine imported components.
Custom Manufacturing: Depending on the site layout and actual needs of each factory, Naltako always conducts surveys and delivers the most optimal designs.
Dedicated Warranty & Maintenance: An experienced team of engineers supports on-site transportation, installation, and is ready for fast 24/7 warranty and maintenance service.

Customers who need technical consultation and the best promotional quotes, please contact Naltako immediately for prompt assistance!
