Standard 8-Ton Forklift Ramp

What Is a Standard 8-Ton Forklift Ramp?

The standard 8-ton forklift ramp, also known as a container ramp or yard ramp, is essential industrial equipment in container loading systems and logistics warehouses. Designed to support the transportation of goods from containers to the warehouse, the forklift ramp creates a safe sloping surface, helping forklifts move easily, quickly, and efficiently. With the ability to optimize the loading process, this device is suitable for businesses using 40-foot containers in production and logistics.

There are two main types of standard 8-ton forklift ramps: hydraulic ramps utilizing a hydraulic system for lifting and lowering, and manual mechanical gear ramps operated by hand. Both help increase loading efficiency by up to 30%, meeting the needs of large and small businesses. This is the ideal solution to replace manual loading methods, minimize risks, and optimize costs.

Are you looking for a quality forklift ramp? Contact Naltako via hotline 0981 977 898 for detailed advice on the suitable solution!

Structure and Technical Specifications

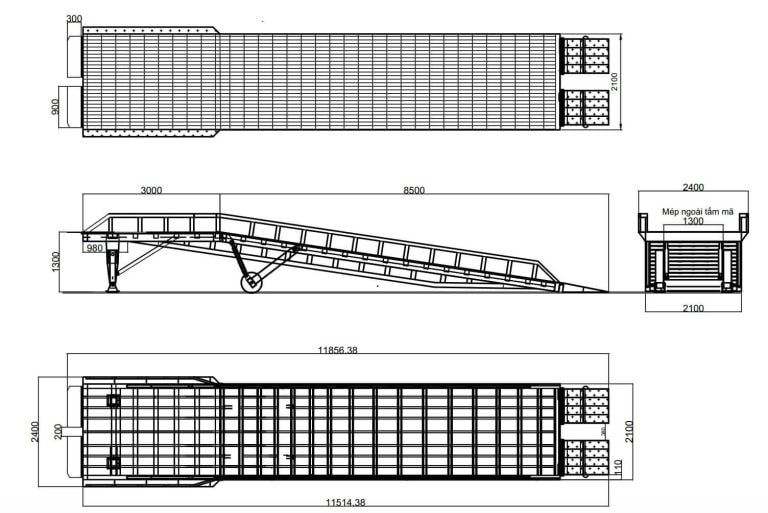

Structure

The standard 8-ton forklift ramp is designed with a sturdy structure, consisting of two main parts: the ramp body and the landing gear.

Ramp body:

• Lip (Dock plate): The part touching the ground, ensuring safe entry/exit for the forklift.
• Incline section: Approximately 8,500mm long, with a slope angle of less than 8 degrees, creating favorable conditions for forklift movement.
• Level section: 4,400mm long, the area for loading/unloading goods from the container.

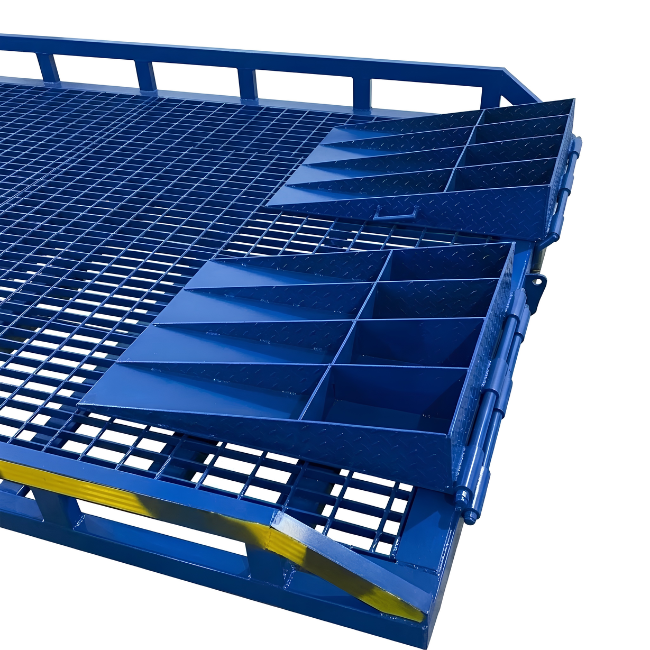

• Connecting plate: Connects the ramp to the container, ensuring stability.
• Anti-slip chain: Fixes the ramp to the container, preventing slipping during operation.

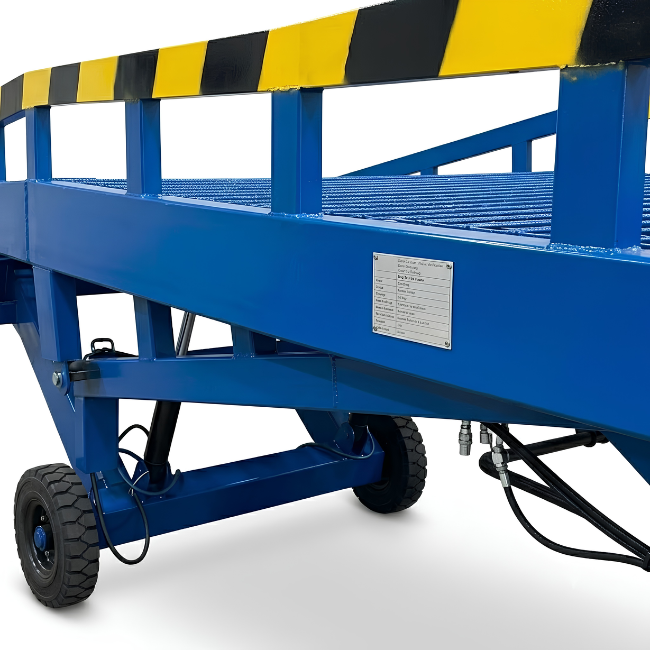

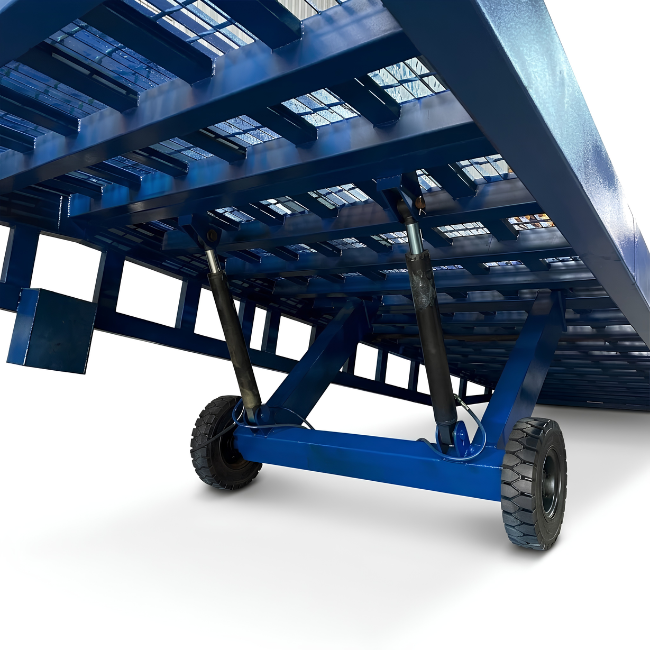

Landing gear:

• Fuwa landing gear: Height adjustable from 1,300-1,650mm, suitable for various container types.
• Cast iron PU wheels: Size D=300mm, rubber-coated, helping move the mobile ramp to different positions.

Standard Technical Specifications

• Load capacity: 8 tons.

• Overall length: 11,000-13,000mm.

• Width: 2,400mm.

• Floor plate thickness: 5mm, using checkered plate or anti-slip steel grating.

• Number of landing legs: 4 legs.

The anti-slip floor design and safe slope ensure high reliability. Explore quality forklift container ramp models at Naltako to meet your needs!

Note: The above specifications are for reference only; actual dimensions, load capacity, and materials may change according to the customer’s specific requirements.

Benefits of Forklift Ramps

Using a forklift ramp brings many superior benefits to businesses in the goods loading process:

• Time optimization: Reduce loading/unloading time by 20-50% compared to manual methods.

• Cost saving: Reduce labor costs by 15-25% thanks to automation.

• Productivity increase: Enhance labor efficiency by up to 30%.

• Labor safety: Reduce accident risks by 40% thanks to sturdy design and safety chains.

• Easy operation and maintenance: Mobile ramp, warranty up to 60 months, ensuring long-term durability.

Forklift ramps are the ideal choice for businesses wanting to optimize warehouse transport systems. Contact Naltako via hotline 0981.977.898 to get the best quote!

Classification and Price of Forklift Ramps

Forklift ramps are classified based on load capacity and operating principle:

By load capacity

• 6-ton ramp: Price from 90 million VND.
• Standard 8-ton ramp: Price from 100 million VND.
• 10-ton ramp: Price from 110 million VND (suitable for common needs).
• Ramp over 12 tons: For heavy industrial applications.

By operating principle

• Hydraulic ramp: Uses a hydraulic system, smooth operation, suitable for high frequency of use.
• Manual mechanical gear ramp: Manual operation, low cost, easy maintenance.

Do you need a cheap 6 to 15-ton forklift container ramp? Call Naltako immediately at 0981977898 for advice on genuine products, competitive prices!

How to Operate the Ramp Safely

To ensure safety when using the standard 8-ton forklift ramp, the following operating steps must be observed:

Video of safe forklift ramp operation

1. Pre-use check: Ensure the ramp surface fully contacts the container box.

2. Lower Fuwa landing gear: Adjust to suitable height (1,300-1,650mm).

3. Attach safety chain: Secure the ramp to the container to avoid slipping.

4. Lift PU wheels: Ensure the ramp is stable during operation.

5. Check load capacity: Do not carry more than the rated load (6-12 tons).

Common errors:

• Ramp surface does not contact the container box.

• Landing gear not fully lowered.

• Safety chain not attached.

• Overloading, causing damage to the ramp.

Correct technical operation helps reduce accident risks by 40%. Order at Naltako for detailed user instructions and safety assurance!

Experience in Buying Ramps

To choose the suitable forklift ramp, businesses need to note:

• Determine needs: Type of goods, load capacity (6-15 tons), usage frequency.

• Prioritize design: Choose a ramp with a long level section (4m or more) to work with multiple forklifts simultaneously.

• Material quality: Prioritize anti-slip checkered plate, durable cast iron PU wheels.

• Reputable supplier: Choose units like Naltako, providing quality products, warranty up to 60 months.

Consider carefully to ensure the reliability of the forklift ramp. Contact Naltako via 0981 977 898 for advice on the most suitable product!

Frequently Asked Questions About Ramps

What is a forklift ramp and what types are available?

A forklift ramp is equipment supporting goods loading from containers to warehouses, including hydraulic ramps and manual mechanical gear ramps, suitable for container trailers and forklifts.

How much is the current forklift ramp price?

Prices start from 90 million (6 tons), 100 million (8 tons), and 110 million (10 tons), depending on load capacity and ramp type.

What are the advantages of forklift ramps compared to traditional loading methods?

Reduce loading time by 20-50%, save labor costs by 15-25%, increase productivity by 30%, and reduce accident risks by 40%.

How to operate a forklift ramp safely?

Check safety chain, lower landing gear, lift wheels, ensure suitable load capacity and ramp surface contacts container.

In what range can the forklift ramp height be adjusted?

Height is adjustable from 1,300-1,650mm, suitable for many types of containers.

Have questions about forklift ramps? Call Naltako hotline 0981.977.898 for detailed answers!
