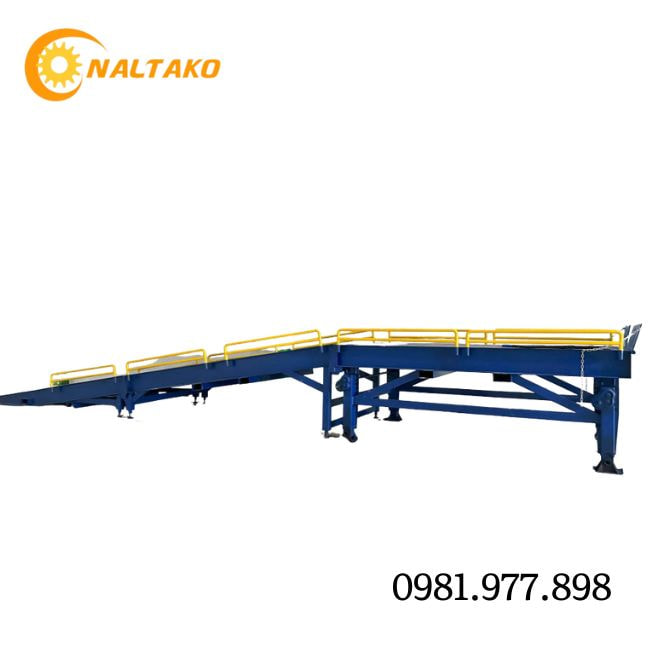

Standard 6-Ton Forklift Ramp

What Is a 6-Ton Forklift Ramp?

The standard 6-ton forklift ramp is specialized equipment used to connect forklifts with container floors or trucks, supporting safe and efficient cargo loading and unloading in the freight transport system. With a maximum load capacity of 6 tons (including the weight of the forklift and cargo), this ramp helps increase loading productivity by up to 30% and reduces the risk of labor accidents by about 40%. Forklift ramp is an indispensable solution in the logistics supply chain and industrial warehouse systems, especially for small and medium-sized enterprises.

Standard 8-Ton Forklift Ramp

Standard 6-Ton Ramp Dimensional Specifications

The dimensions of a standard 6-ton forklift ramp are a crucial factor to ensure suitability for usage needs. Common specifications include:

• Overall length: 10.3m – 13m, of which the flat section is 3-4m long and the slope section is 8-9m.
• Width: 2.1m – 2.5m, sufficient for forklifts to move comfortably.
• Adjustable height: 1.2m – 1.7m, suitable for various types of containers and trucks.

At Naltako, we provide forklift ramps with the ability to customize dimensions according to specific customer requirements, ensuring compatibility with cargo storage systems. For example, a 6-ton mobile ramp that is 11m long and 2.4m wide can flexibly adjust its height, helping connect with standard containers easily. The slope angle is designed to be less than 8 degrees, ensuring forklifts move up and down safely without causing vibration.

Standard 10-Ton Forklift Ramp

Structure of the 6-Ton Load Capacity Forklift Ramp

Naltako’s 6-ton forklift ramp is designed with a sturdy structure, including the following main parts:

• Ramp body frame: Uses high-strength I300 or U-shaped steel, ensuring durability and stability when bearing a 6-ton load.
• Anti-slip floor surface: 5-6mm thick checkered plate, integrated with anti-slip chains, helping forklifts move safely.
• Fuwa landing gears: 4-leg trailer landing gears, high load capacity, keeping the ramp fixed during operation.
• PU wheels: 300mm diameter, each wheel bears 1.5 tons, helping move the ramp flexibly within the warehouse.

This design not only ensures safety but also increases flexibility for the lifting equipment system. Naltako also adds protective guardrails and a undercarriage bracing system, helping the product achieve higher durability compared to ordinary ramps. For example, the Tan Phat forklift ramp supplied by Naltako has an anti-slip checkered plate floor, suitable for forklift types such as hydraulic hand pallet trucks or hydraulic lift tables.

Standard 12-Ton Forklift Ramp

Applications of Forklift Ramps in Warehouses

The standard 6-ton forklift ramp is widely applied in many fields:

• Logistics and import-export: Connecting forklifts with containers, supporting quick cargo loading and unloading.
• Manufacturing plants: Moving raw materials and finished products within the production line.
• Industrial warehouses: Optimizing transport processes for small and medium-sized enterprises.

How to Choose a Quality 6-Ton Forklift Ramp

To choose a quality 6-ton forklift ramp, you need to base it on the following criteria:

• Load capacity: The ramp’s maximum load capacity must be 3 times the forklift’s load capacity to ensure safety. For a 2-ton forklift, a 6-ton ramp is a suitable choice.
• Forklift type: Ensure the ramp is compatible with hydraulic hand pallet trucks or scissor lifts in terms of size and weight.
• Safety design: Prioritize anti-slip checkered plate floors, sturdy Fuwa landing gears, and durable PU wheels.

Naltako provides 6-ton hydraulic ramps with optimal design, integrated undercarriage bracing systems and protective guardrails, helping to minimize risks during operation. The product is manufactured from high-quality steel, strictly inspected to ensure durability and safety. With experience in industrial warehouse systems, Naltako is committed to bringing reliable solutions to every enterprise.

Do you want to own a high-quality 6-ton forklift ramp? Contact us immediately at 0981.977.898 for Naltako to consult on the most optimal solution!
