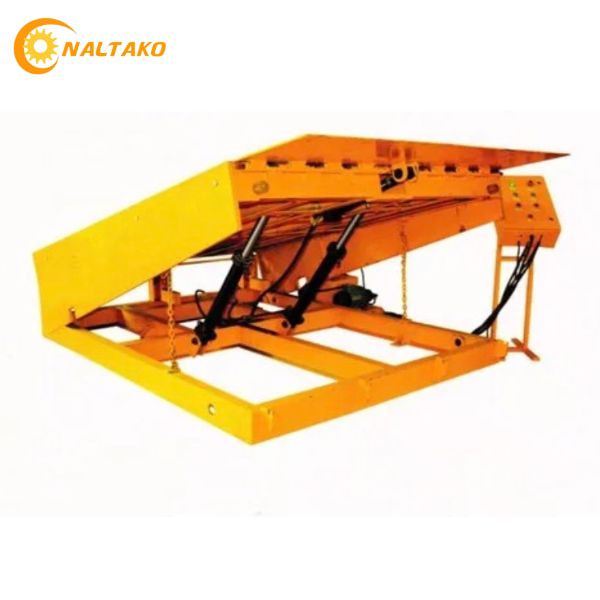

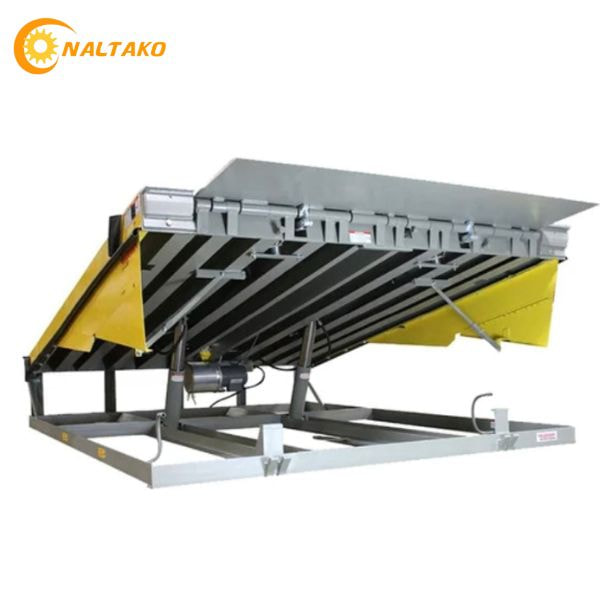

2.4×1.8m Hydraulic Dock Leveler
✔️ The 2.4×1.8m hydraulic dock leveler offers various load capacities from 8 to 12 tons, meeting the needs of cargo transportation by forklift.
✔️ Sturdy steel structure ensures safety for both forklifts and goods. Flexible working range (+400/-300mm) allows for easy connection with various types of container trucks.
✔️ Smooth and stable operation powered by a robust hydraulic system.
✔️ Quick installation and easy maintenance.
2.4×1.8m Hydraulic Dock Leveler Specifications
| Technical Specifications | 8-ton Dock Leveler | 10-ton Dock Leveler | 12-ton Dock Leveler |
| Platform dimensions (mm) | 2400 x 1800 | 2400 x 1800 | 2400 x 1800 |
| Lip dimensions (mm) | 400 | 400 | 400 |
| Working range (mm) | +400 -300 | +400 -300 | +400 -300 |
| Motor power (kw) | 0.75 | 0.75 | 1.5 |
| Pit dimensions (LxWxH) (mm) | 2600 x 1860 x 510 | 2600 x 1860 x 510 |
2600 x 1860 x 510
|
| Max tilt angle (°) | 12.5 | 12.5 | 12.5 |
| Max lifting height (mm) | 400 | 400 | 400 |
| Max lowering height (mm) | -300 | -300 | -300 |
| Hydraulic pressure (MPa) | 16 | 16 | 16 |
| Oil flow (L/min) | 10 | 10 | 14 |
Advantages of the 2.4×1.8m Hydraulic Dock Leveler
The 2.4×1.8m hydraulic dock leveler has dimensions wide enough to create a seamless flat connection between the warehouse floor and the container floor, helping forklifts move easily and conveniently.
This size is also wide enough for forklifts to transport a variety of goods, from pallets and cartons to bulky items.
In addition, the dock leveler has a lifting range of +400/-300mm, which helps eliminate the height difference and gap between the warehouse and the container, making the loading and unloading process fast and efficient. The maximum tilt angle of 12.5° ensures safety for forklifts when moving up and down.
The 2.4×1.8m hydraulic dock leveler offers a variety of load capacities for customers to choose from, including 8 – 10 – 12 tons, meeting most current needs. Choosing the right load capacity depends on the weight of the goods and the type of forklift used in the warehouse.
The hydraulic pressure of 16 MPa and oil flow of 10-14 L/min ensure stable, powerful, and safe operation.
The 400mm lip size helps ensure a safe connection between the dock leveler and the container, minimizing the risk of occupational accidents.
The pit dimensions of 2600 x 1860 x 510mm are relatively common, making pit design and construction easier.
Reputable Supplier of 2.4×1.8m Hydraulic Dock Levelers
The 2.4×1.8m hydraulic dock leveler is a standard product of Naltako. All specifications are designed to be suitable for many users and ensure the best cost.
If customers want to customize specifications, we have a team of engineers ready to advise and serve. Contact us now: 0981.977.898 or 0986.868.003
