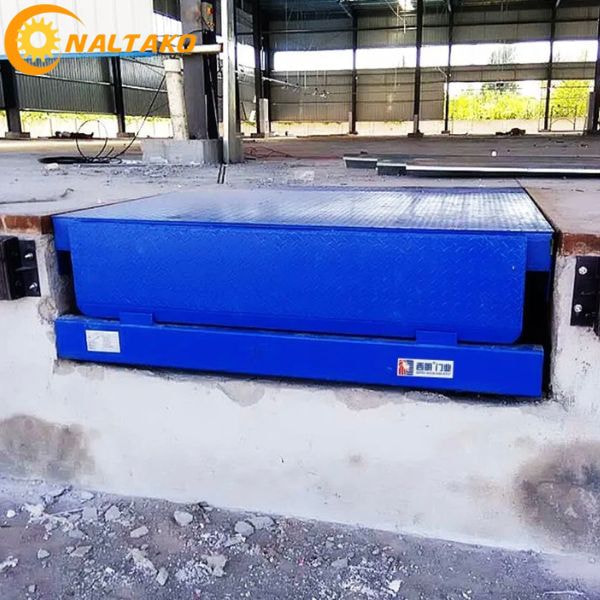

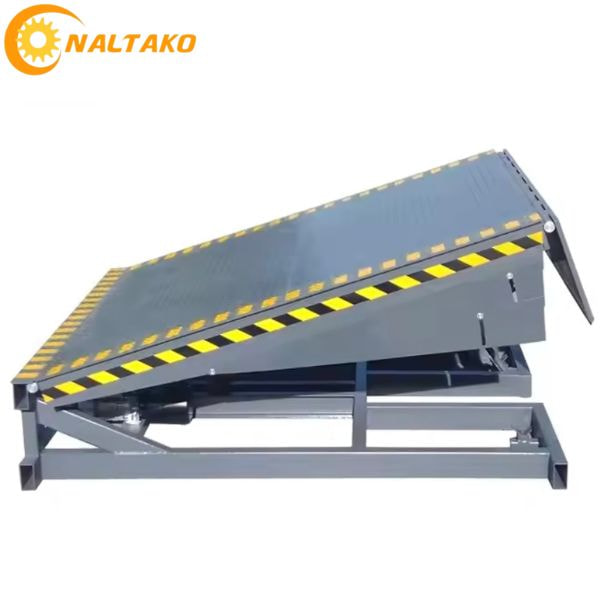

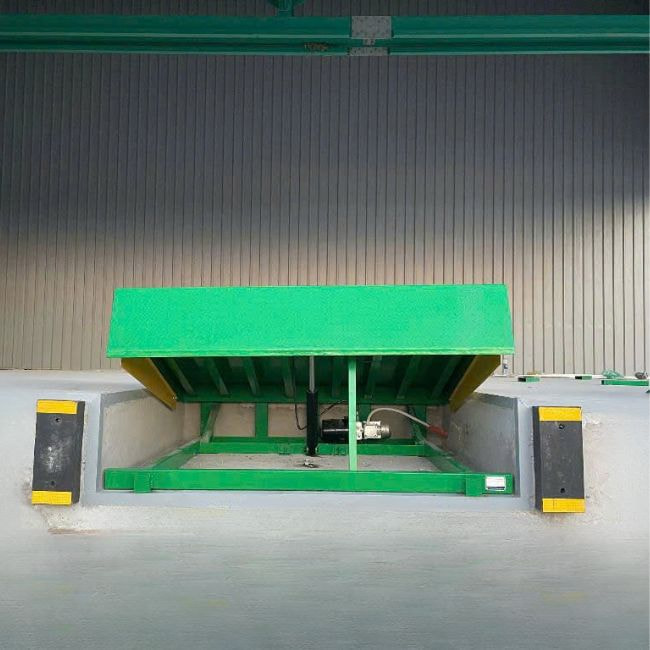

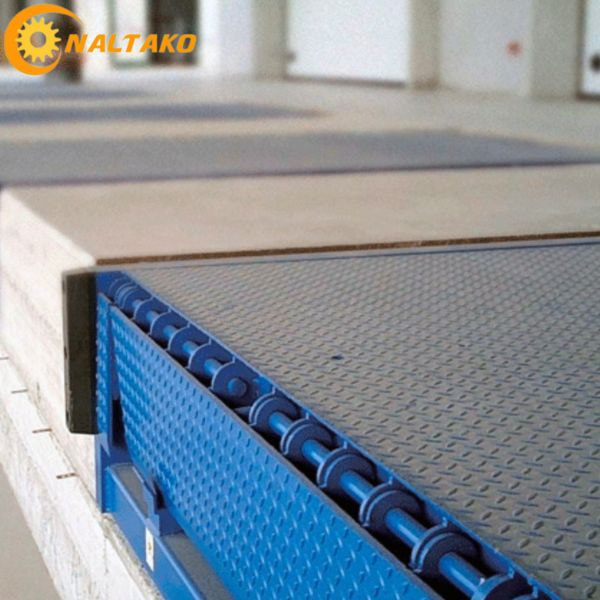

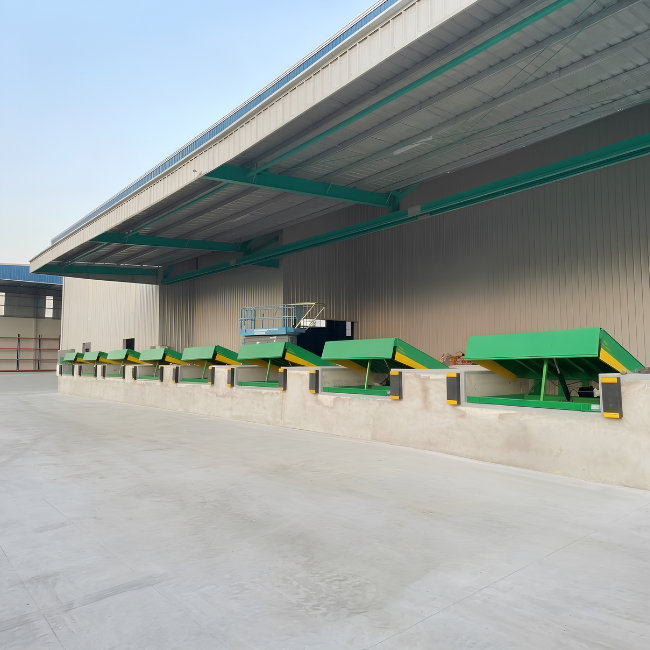

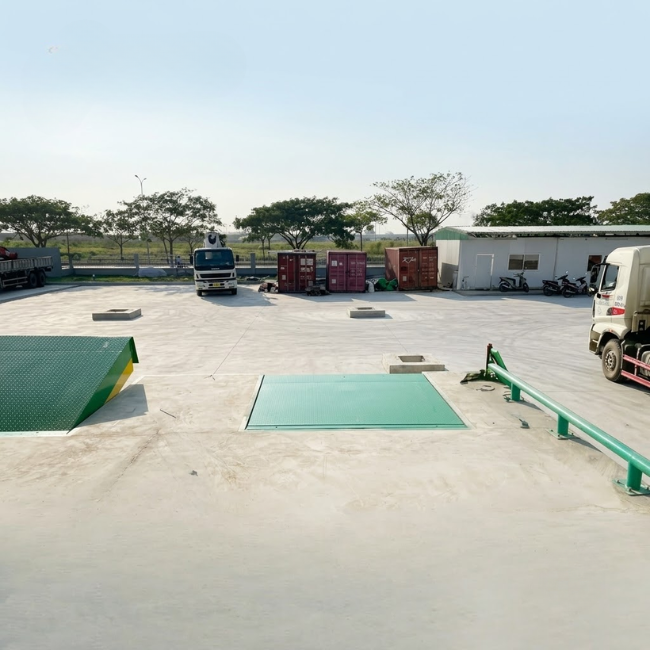

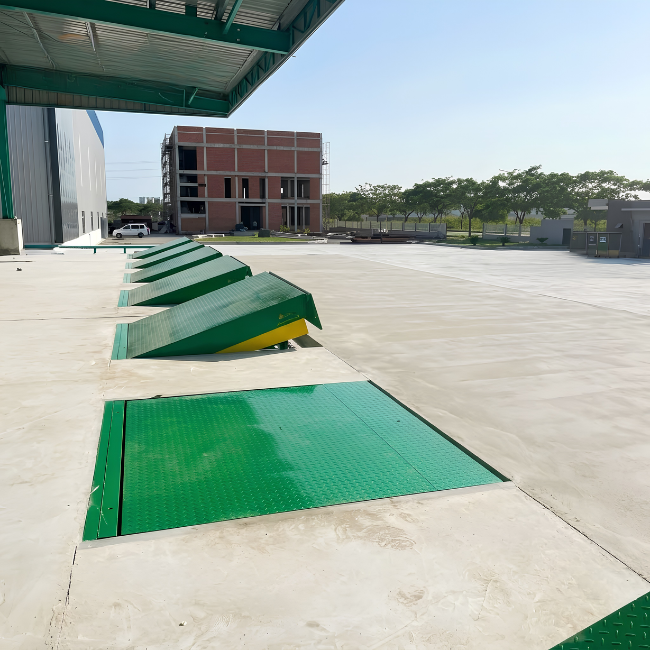

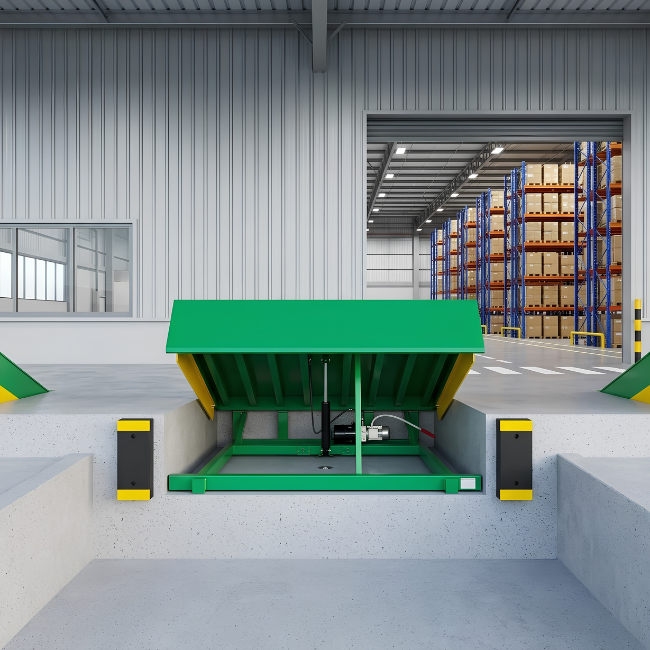

Technical specifications for 12-ton hydraulic dock leveler, 2x2m platform
| Technical Specifications | Details |
| Brand | Naltako |
| Type |
Non-standard (Custom design)
|
| Manufacturing | Domestic |
| Capacity | 12 tons |
| Platform dimensions |
2000 x 2000 mm
|
| Lip dimensions | 400 x 200 mm |
| Lifting height | 300 – 700 mm |
| Motor power |
0.75 – 1.5 kW (On request)
|
| Overall dimensions |
2000 x 2040 x 600 mm (LxWxH)
|
| Side guards |
Yes
|
| Lip hinge |
Yes
|
| Paint color |
Standard or on request
|
| Hydraulic system |
Open loop
|
| Hydraulic oil type |
AW 46 Hydraulic Oil
|
| Working pressure |
160 – 200 bar
|
| Oil flow rate |
6 – 8 liters/minute
|
| Safety valve | Yes |
| Hydraulic pump |
Gear pump
|
| Hydraulic cylinder |
Piston diameter ~100mm
|
| Voltage | 380V/50Hz |
| Control system | Push button |
| Lifting time |
~ 30 – 60 seconds
|
| Lowering time |
~ 20 – 40 seconds
|
| Dock leveler weight |
~ 1500 – 2000 kg
|
| Warranty |
24 months
|
Advantages of 12-ton dock leveler, 2x2m platform
✅ High Load Capacity
- Load capacity up to 12 tons, meeting heavy and bulky cargo handling needs in industries, warehouses, and logistics.
- Wide 2x2m platform size makes moving goods with hand pallet trucks and forklifts easy and safe.

✅ Flexible and Convenient
- Non-standard design, domestically manufactured according to customer requirements, making the dock leveler suitable for all spaces and usage needs.
- Customers can choose motor power (0.75 – 1.5kW) suitable for lifting needs.
- Lifting height from 300mm – 700mm helps connect with various types of trucks and containers.
✅ Safe and Durable
- Uses sturdy SS400 structural steel, ensuring durability and safety during operation.
- Side guards and lip hinges are appropriately added, enhancing safety when in use.
- Standard or custom paint colors help protect the dock leveler from environmental impact.
✅ Supplied by a Reputable Brand
- Naltako is a reputable hydraulic dock leveler brand in Vietnam, committed to quality and good service.
- Domestic production ensures competitive pricing and fast delivery times.
- Easy to maintain and repair with readily available replacement parts.
Contact for a quote on 12-ton hydraulic dock leveler, 2x2m platform
You can contact us for consultation and product quotation via the following channels:
- Hotline: 0981.977.898
- Zalo: 0981.977.898
- Email: nhat.mtk53@gmail.com
Or leave your contact information in the form, and our customer care team will contact you back.
