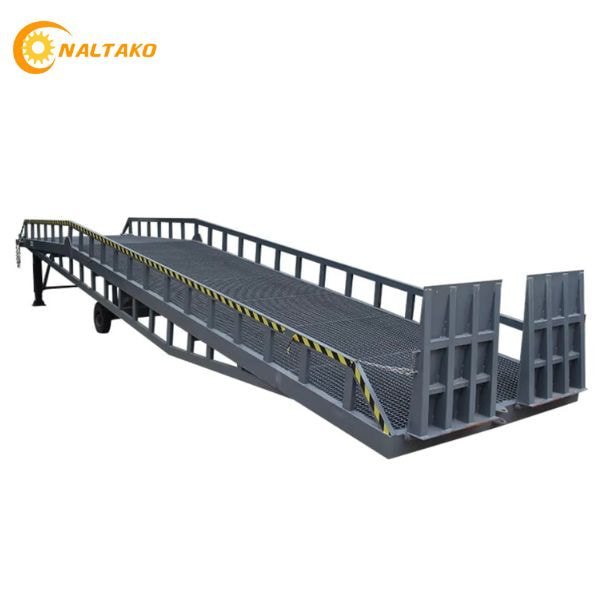

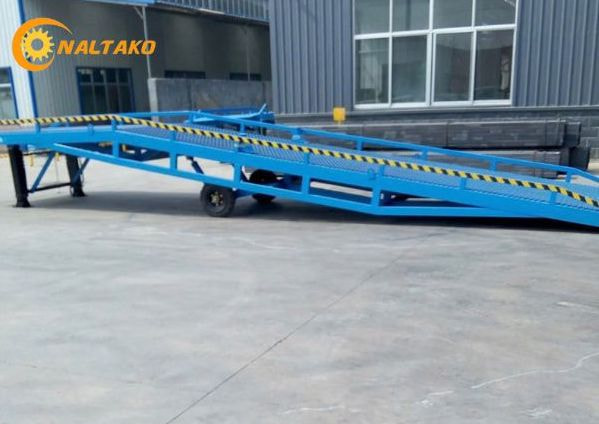

Standard 12-Ton Forklift Ramp
The standard 12-ton forklift ramp is equipment designed to support forklifts in moving up and down containers and trucks safely and efficiently. It is suitable for loading and unloading heavy goods in industrial, warehouse, and logistics sectors.
Technical Specifications:
-
Load capacity: 12,000 kg (12 tons)
-
Overall dimensions: 12,000 x 2,400 mm
-
Inner floor width: 2,200 mm
-
Lifting height: 1,200 – 1,800 mm (adjusted by manual hydraulic jack)
-
Slope length: 7,500 mm
-
Flat length: 3,500 mm
Introduction to Naltako’s Standard 12-Ton Forklift Ramp
The Naltako 12-ton ramp is specialized equipment supporting forklifts to move up and down containers, trucks, or surfaces of varying heights safely and effectively.
With a load capacity of up to 12 tons, large dimensions of 12000 x 2400mm, and flexible height adjustment from 1200 – 1800mm, Naltako ramps meet the needs of lifting heavy goods in industries, warehouses, and logistics.
Compared to lower capacity forklift ramps, the Naltako 12-ton ramp allows heavy cargo forklifts to move on the floor surface, meeting the needs of large enterprises and industrial zones. The ramp surface is processed for anti-slip, while the flip plates and protective railings help the forklift move steadily.
Naltako’s standard 12-ton forklift ramp has superior advantages over mechanical ramps; the manual hydraulic jack helps lift and lower gently, quickly, and with less effort.
The large height adjustment range (1200-1800mm) makes the ramp suitable for various types of forklifts and truck floors.
The ramp is designed with strict safety standards, ensuring safety for operators and goods. The equipment is also manufactured from high-strength steel, with electrostatic powder coating to prevent rust, ensuring durability and long service life.
The ramp is equipped with wheels, convenient for movement within the warehouse.
>>> See more: 16-ton ramp
Detailed Technical Specifications
| Technical Specifications | Value |
| Load capacity (kg) | 12000 |
| Overall dimensions (mm) | 12000 x 2400 |
| Inner floor width (mm) | 2200 |
| Lifting height (mm) | 1200 – 1800 |
| Slope length (mm) | 7500 |
| Flat length (mm) | 3500 |
| Grounding plate length (mm) | 1000 |
| Flip plate length (mm) | 300 |
| Maximum slope angle (%) | 15 |
| Minimum turning radius (mm) | 4500 |
| Hand pump stroke (mm) | 200 |
| Number of hand pump strokes | 20 – 30 |
| Ramp weight (kg) | 2500 |
| Main material |
High-strength steel
|
| Safety standards |
EN 1398, ASME B56.6
|
Contact for consultation and quote for standard 12-ton forklift ramp
Naltako commits:
✔️ High-quality products, meeting safety standards.
✔️ Competitive prices, attractive discounts.
✔️ Dedicated consultation, 24/7 technical support.
✔️ Fast delivery, professional installation.
Contact Naltako immediately for free consultation and the best quote!
Hotline: 0981 977 898 – 0986 868 003
Email: nhat.mtk53@gmail.com
- Factory: Dong De Village, Phu Yen, Chuong My, Hanoi.
- Representative Office: 4th Floor, SME Hoang Gia Building, To Hieu, Ha Dong, Hanoi
