Hydraulic lift tables are indispensable equipment in modern factories, workshops, and warehouses. With the ability to lift and lower goods from 150kg to 5 tons safely and flexibly, Naltako hydraulic lift tables are the top choice for hundreds of businesses nationwide.

NỘI DUNG BÀI VIẾT

What Is a Hydraulic Lift Table?

A hydraulic lift table (also known as a hydraulic cargo lift table, scissor lift table) is lifting equipment that uses hydraulic principles with a scissor mechanism frame structure to adjust the tabletop height. This device helps optimize workflows, minimize manual labor, and improve production efficiency.

Tabletop height can be changed to suit various needs

Operating Principle: When hydraulic oil is pumped into the cylinder, the generated pressure expands the crossed scissor frame bars, raising the tabletop. The lowering process is performed by opening the release valve, allowing hydraulic oil to return to the reservoir in a controlled manner.

Naltako Hydraulic Lift Table Product Line

Naltako provides a diverse range of hydraulic lift tables to meet every need:

Mobile Hydraulic Lift Tables

Load capacity: 150kg – 500kg
Lifting height: 720mm – 1500mm
Application: Suitable for tasks requiring flexible movement, lifting/lowering goods at various locations within the workshop
Classification: Electric lift tables and mechanical lift tables

Characteristics	Mechanical Lift Table (Foot Pump)	Electric Lift Table
💰 Price	8,000,000 – 15,000,000 VND	12,000,000 – 22,000,000 VND
⚡ Power Source	Human power (foot pump)	Electricity 220V – 50Hz
📦 Load Capacity	150kg, 300kg, 500kg	300kg, 500kg
📏 Lifting Height	720-1500mm	900-1500mm
⏱️ Lifting Time	15-25 seconds	8-15 seconds
🔋 Power Consumption	0 kWh ✅	0.5-1 kWh/day
👷 Operators	1 person (good health required)	1 person (no effort required)
📊 Recommended Frequency	< 20 times/day	> 30 times/day
🔧 Periodic Maintenance	Every 6 months	Every 4 months
🛡️ Durability	8-10 years	7-9 years
📍 Usage Location	Small warehouse, workshop, office	Factory, logistics, production
✅ Key Pros	Cheap, durable, no electricity	Fast, labor-saving
❌ Cons	Requires manpower, slower	More expensive, electricity dependent

Fixed Hydraulic Lift Tables

Load capacity: 1 ton – 5 tons
Lifting height: Up to 6000mm
Application: Fixed installation at locations requiring frequent lifting of heavy loads.

Scissor Lift Tables

Load capacity: 500kg – 3 tons
Characteristics: Double or multi-stage scissor design, superior lifting height
Application: Equipment maintenance, construction, logistics warehousing

Detailed Technical Specifications

Mobile Mechanical Lift Table Series (Foot Pump)

Suitable for light lifting tasks (150-500kg) in small warehouses, production workshops, shops, or offices where there is no power source or infrequent use. Especially effective in lifting cartons, packages, and materials to worktables, shelves, or trolleys at appropriate heights, minimizing manual lifting effort.

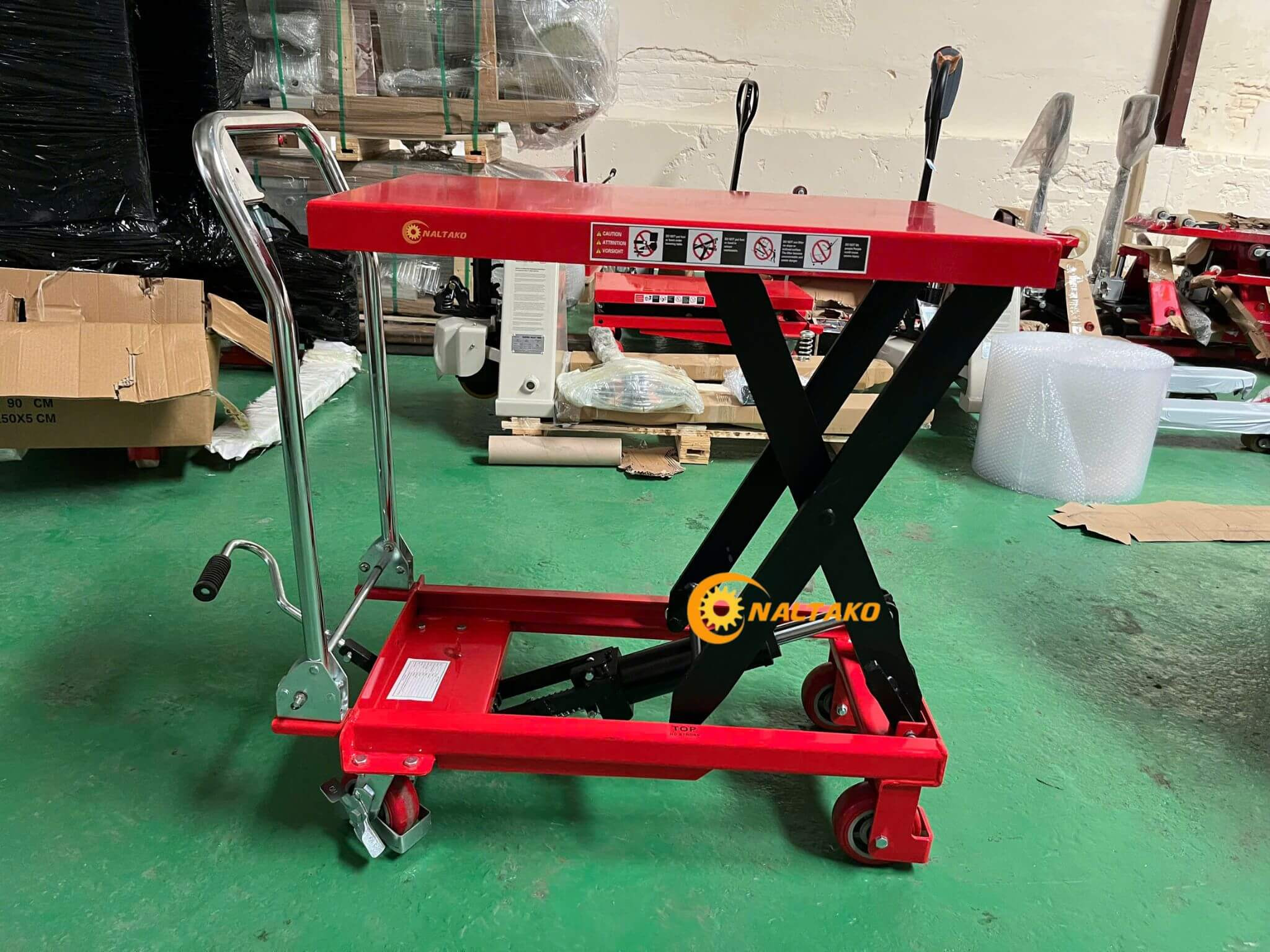

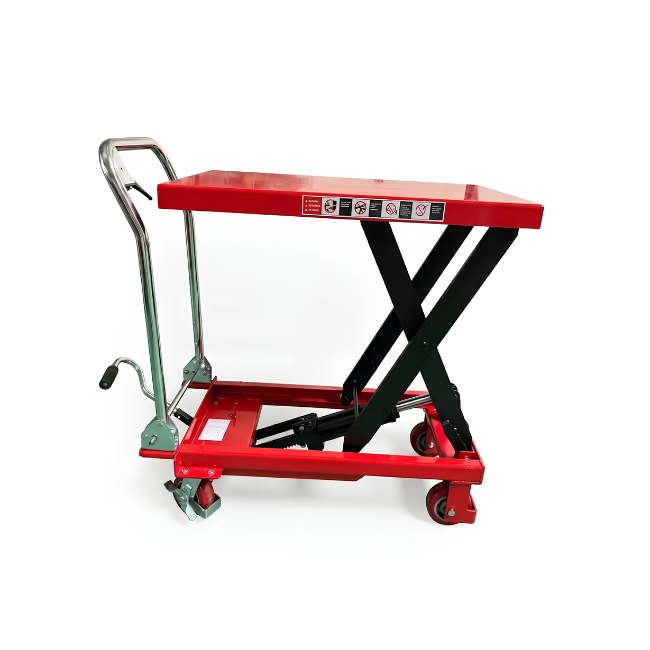

Mechanical lift table with moving wheels

Model	Load Capacity	Lowered Height (mm)	Lift Height (mm)	Table Dimensions (mm)	Lift Stroke (mm)	Lift Time	Weight (kg)	Wheels
NTK-150C	150kg	280	900	700 × 450	620	20-25s	45	PU Ø100mm
NTK-300C	300kg	300	1000	820 × 500	700	22-28s	65	PU Ø100mm
NTK-350C	350kg	300	1000	820 × 500	700	23-30s	68	PU Ø125mm
NTK-500C	500kg	340	900	855 × 500	560	25-32s	85	PU Ø125mm
NTK-500C-HD	500kg	400	1500	1000 × 600	1100	35-45s	105	PU Ø150mm

General Technical Specifications:

Lifting system: Hydraulic foot pump
Lowering system: Release valve with adjustable lowering speed
Hydraulic cylinder: Single, imported, diameter 32-45mm
Hydraulic oil: ISO VG 46 mineral oil, capacity 1-2.5 liters
Lifting frame: CT3 Steel, single scissor mechanism
Tabletop: CT3 Steel, 3-5mm thick, anti-slip
Wheels: 2 fixed wheels + 2 swivel wheels (360°) with brakes
Wheel material: Polyurethane (PU), non-marking
Surface: Powder coated anti-rust, orange/blue/yellow
Safety valve: Integrated overload protection valve
Working temperature: -5°C to +40°C
Warranty: 12 months

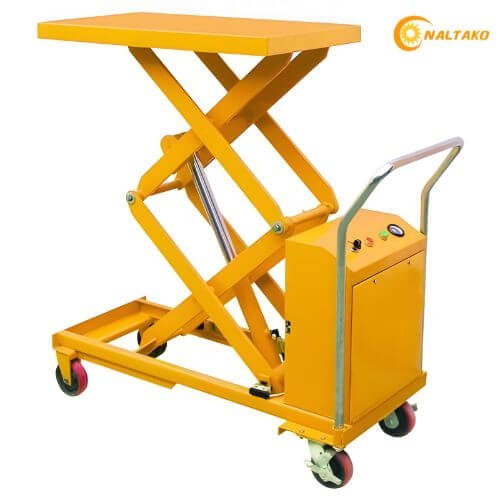

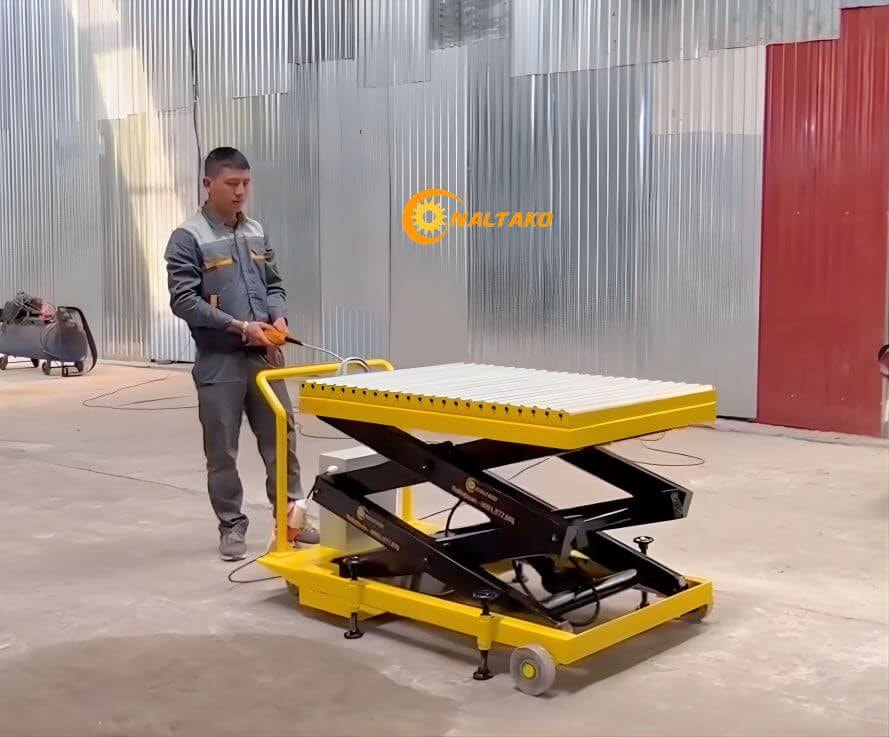

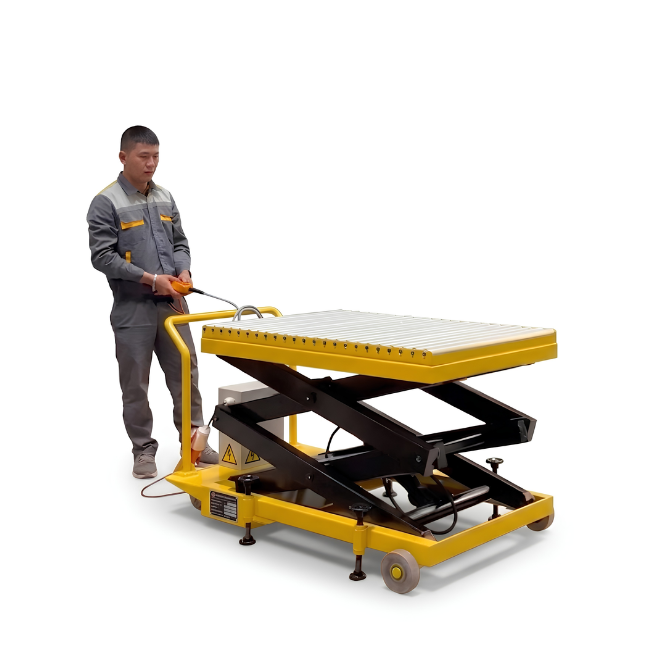

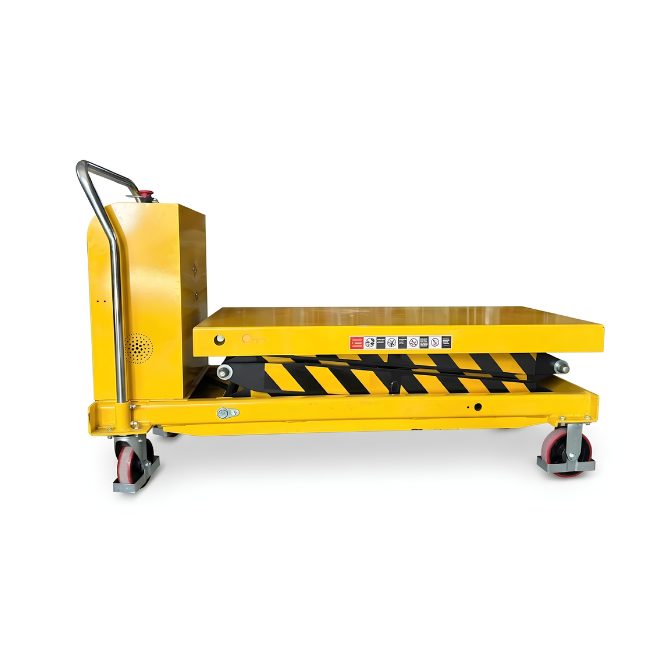

Mobile Electric Lift Table Series

Widely used in production lines, factories, mechanical workshops, and logistics warehouses to lift components, semi-finished products, paper rolls, and printing materials with high frequency.

Type 1: 220V Electric Source (Direct Plug-in)

Model	Load Capacity	Lowered Height (mm)	Lift Height (mm)	Table Dimensions (mm)	Lift Stroke (mm)	Lift Time	Motor Power	Weight (kg)
NTK-300E-AC	300kg	300	1000	820 × 500	700	10-12s	0.8kW	75
NTK-350E-AC	350kg	300	1000	820 × 500	700	11-13s	1.0kW	78
NTK-500E-AC	500kg	340	1200	900 × 600	860	12-15s	1.1kW	95
NTK-500E-HD-AC	500kg	400	1500	1000 × 600	1100	18-22s	1.5kW	115

Technical Features (AC Model – 220V):

Mobile lift table using 220V Electric Source (Direct Plug-in)

Power source: 220V – 50Hz, single-phase
Power cord: 5m cable with 3-pin plug
Control system: Up/down push button, 1.5m cable
Pros:
- Strong, stable power
- Continuous use without worrying about battery drain
- Suitable for places with fixed power sources
- Lower cost than battery models
Cons:
- Dependent on power source
- Power cord limits movement
- Cannot be used outdoors far from electricity

Type 2: Battery Power Source (Wireless)

Model	Load Capacity	Lowered Height (mm)	Lift Height (mm)	Table Dimensions (mm)	Lift Stroke (mm)	Lift Time	Battery Type	Weight (kg)
NTK-300E-DC	300kg	300	1000	820 × 500	700	10-13s	24V/20Ah	82
NTK-350E-DC	350kg	300	1000	820 × 500	700	11-14s	24V/20Ah	85
NTK-500E-DC	500kg	340	1200	900 × 600	860	12-16s	24V/30Ah	105
NTK-500E-HD-DC	500kg	400	1500	1000 × 600	1100	18-24s	24V/40Ah	128

Technical Features (DC Model – Battery):

Battery Type:
- Gel/AGM Battery 24V (Standard)
- Lithium Battery 24V (Optional – 40% lighter)
Capacity: 20-40Ah depending on model
Lifts per charge:
- Gel/AGM Battery: 80-120 times
- Lithium Battery: 150-200 times
Full charge time: 6-8 hours (standard charge), 2-3 hours (fast charge – Lithium)
Battery life:
- Gel/AGM: 500-800 charge cycles (2-3 years)
- Lithium: 2000-3000 cycles (5-8 years)
Charger: 220V/24V, integrated or external (optional)
Indicators: Battery level gauge, 4-level LED light
Battery protection:
- Automatic cut-off when battery is low (< 20%)
- Overcharge and over-discharge protection
- BMS (Battery Management System) for Lithium batteries
Pros:
- Absolutely flexible, wireless
- Usable anywhere, including outdoors
- Unlimited mobility
- Safer (no power cords)
Cons:
- Cost is 30-50% higher than AC models
- Requires periodic battery charging
- Heavier due to battery
- Battery replacement cost after 2-5 years

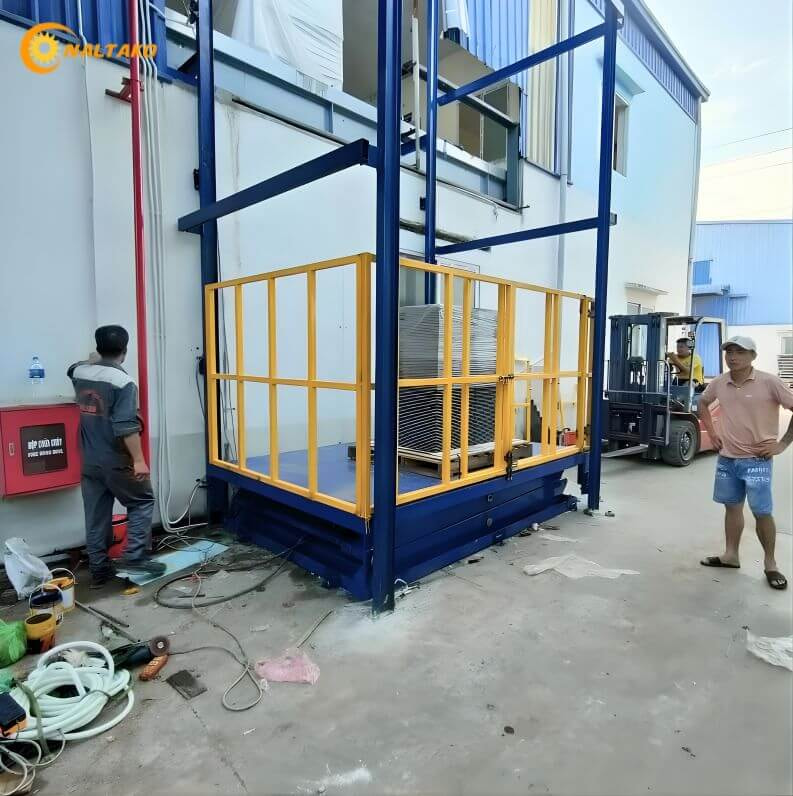

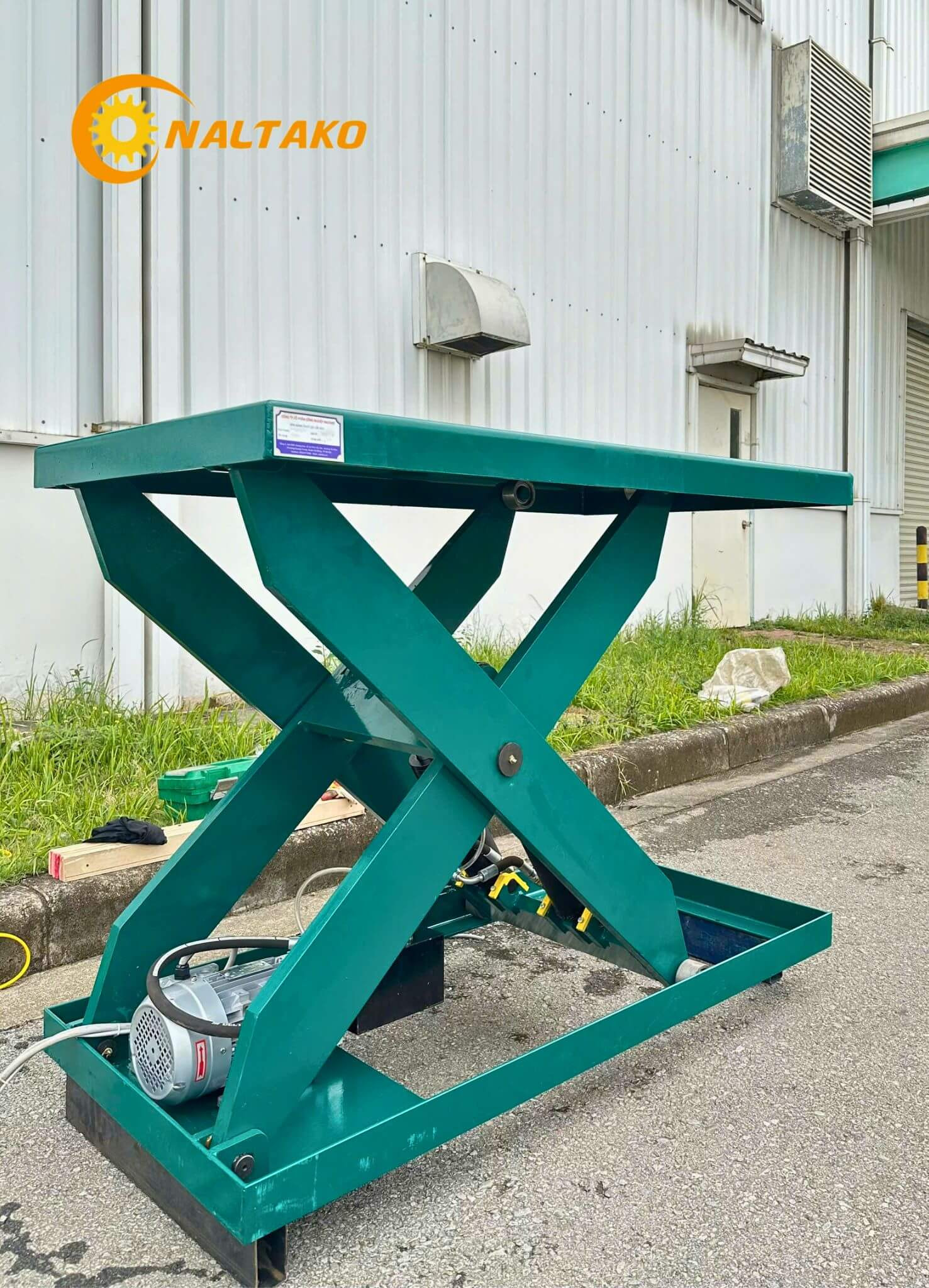

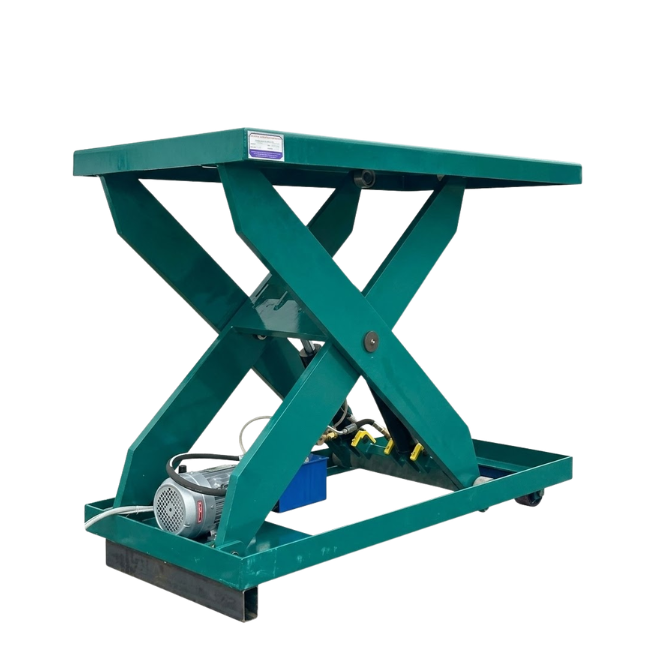

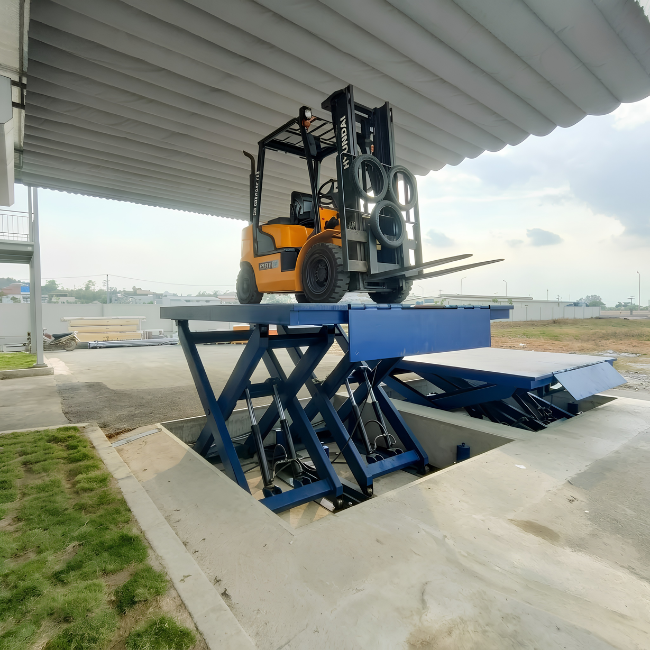

Fixed Lift Table Series

Fixed installation at locations requiring frequent lifting of heavy loads (1-5 tons) such as container bridges, loading docks, between factory floors, or integrated into automated production lines. Commonly used in large manufacturing plants, logistics warehouses, seaports, and bus stations to lift goods from the ground to truck beds, containers, or vice versa safely and efficiently.

Model	Load Capacity	Lowered Height (mm)	Lift Height (mm)	Table Dimensions (mm)	Lift Stroke (mm)	Lift Time	Power	Power Source
NTK-1000F	1000kg	445	1650	1300 × 820	1205	20-25s	2.2kW	380V-3P
NTK-1500F	1500kg	500	2000	1600 × 1000	1500	25-30s	2.2kW	380V-3P
NTK-2000F	2000kg	600	3000	2300 × 2000	2400	30-35s	3.0kW	380V-3P
NTK-3000F	3000kg	650	3500	2500 × 2000	2850	35-40s	4.0kW	380V-3P
NTK-5000F	5000kg	860	5000	2500 × 2000	4140	55-65s	5.5kW	380V-3P
NTK-8000F	8000kg	950	4500	3000 × 2500	3550	60-70s	7.5kW	380V-3P
NTK-10000F	10 tons	1000	4000	3000 × 2500	3000	65-75s	7.5kW	380V-3P
NTK-15000F	15 tons	1200	3500	3500 × 3000	2300	70-85s	11kW	380V-3P
NTK-20000F	20 tons	1500	3000	4000 × 3000	1500	75-90s	15kW	380V-3P

General Technical Specifications:

Fixed lift table custom-designed by Naltako

Power source: 380V – 50Hz, 3-phase (or 220V for models under 1 ton)
Control system:
- Wall-mounted push buttons/electric cabinet
- Wireless remote (optional)
- Integrated PLC (optional for automation)
Motor: AC motor, IP55 overload protection
Hydraulic pump: Gear or piston pump, flow 3-20 liters/minute
Hydraulic cylinder: Double or set of 4, imported from Taiwan/Japan, Ø50-120mm
Working pressure: 100-200 bar
Hydraulic oil: Mineral oil ISO VG 46, capacity 10-60 liters
Lifting frame: Rectangular/I-beam steel, single or double scissor mechanism
Tabletop: CT3 Steel, 6-12mm thick, ribbed anti-slip surface or mesh plate
Positioning mechanism:
- Anti-drop valve
- Mechanical safety locks at positions
- Upper/lower limit sensors
Safety system:
- Safety pressure valve
- Overload protection valve
- Protective barriers/fences
- Warning light + siren
- Emergency stop button
Additional options:
- Loading ramp
- Protective bellows
- Protective railings
- Pressure sensors
- Height display screen
Protection class: IP54 – IP65 (depending on environment)
Noise level: < 75dB
Working temperature: -10°C to +45°C
Duty cycle: 25% (15 min ON / 45 min OFF) or continuous (optional)
Standards: ISO 9001, CE (optional)
Warranty: 24 months for mechanical, 12 months for electrical

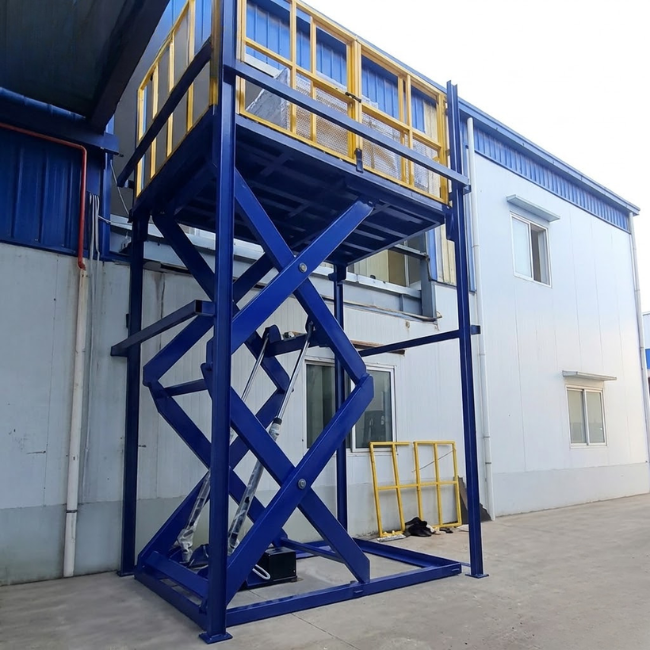

Scissor Lift Table Series

The scissor lift table series is specially designed for lifting people (also known as scissor man lifts), or lifting goods and equipment to great heights (1650-4000mm) for maintenance, repair, ceiling/wall installation, electrical/water system installation, and industrial equipment inspection. Commonly applied in construction, factory maintenance, auto repair (car lifting), warehouses with high shelves, commercial centers, and projects requiring safe work at heights with protective railings.

Lift table specially designed for lifting people

Model	Load Capacity	Lowered Height (mm)	Lift Height (mm)	Table Dimensions (mm)	Lift Stroke (mm)	Lift Time	Power	Type
NTK-500S	500kg	500	1650	1000 × 800	1150	18-22s	1.5kW	Mobile
NTK-500S-HD	500kg	650	2500	1200 × 800	1850	28-35s	2.2kW	Mobile
NTK-1000S	1000kg	650	2500	1500 × 1000	1850	30-38s	2.2kW	Mobile
NTK-1000S-HD	1000kg	800	3500	1800 × 1200	2700	45-55s	3.0kW	Fixed
NTK-2000S	2000kg	800	3500	2000 × 1500	2700	40-50s	4.0kW	Fixed
NTK-3000S	3000kg	950	4000	2500 × 2000	3050	55-70s	5.5kW	Fixed

General Technical Specifications:

Power source:
- 220V – 50Hz, single-phase (mobile models ≤ 500kg)
- 380V – 50Hz, 3-phase (models ≥ 1 ton or fixed)
Frame type:
- Single scissor: Up to 2500mm
- Double scissor: 2500-4000mm
Hydraulic cylinder: Symmetrical double cylinders, Ø50-80mm
Working pressure: 120-180 bar
Hydraulic pump: Gear pump, flow 2-8 liters/minute
Hydraulic oil: ISO VG 46, capacity 5-20 liters
Structural frame: Box steel 50×50 to 100×100mm, 3-6mm thick
Tabletop: Ribbed anti-slip steel 4-8mm thick

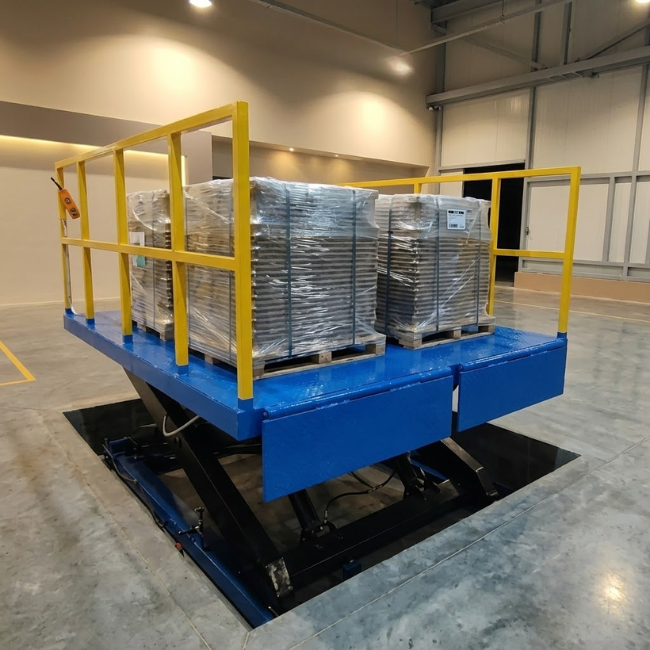

Scissor lift table series used for lifting goods

Protective railing:
- 4 sides, height 1000-1100mm
- With spring loaded gate
- Optional: Foldable railing, expandable railing
Safety system:
- Anti-drop valve
- Backup safety cable (for mobile models)
- Anti-collision sensor
- Emergency stop buttons at 4 positions (4 corners)
- Automatic braking when lifting (mobile models)
Wheels (mobile models):
- 4 PU wheels Ø150-200mm
- 4 wheels with electromagnetic brakes
- Automatic brake lock when lifting
Controls:
- Push buttons on tabletop
- Wireless remote (standard)
- Ground control (fixed models)
Additional options:
- LED lighting
- Power outlet on tabletop
- Tabletop expansion plate
- Special wheels (anti-static, non-marking)
- Stainless steel tabletop (for food, pharmaceutical industries)
Protection class: IP54
Noise level: < 72dB
Working temperature: -10°C to +40°C
Maximum floor inclination: 3° (mobile models)
Standards: EN 1570, CE (optional)
Warranty: 24 months

Outstanding Features & Technology

Advanced Hydraulic System

High-quality imported hydraulic cylinders, superior durability
Safety valves to prevent overload and sudden drops
High-pressure oil hose system, leak-proof

Sturdy Steel Frame Structure

Scissor frame designed for optimal force distribution
Premium CT3 steel, good load-bearing capacity, no deformation
Anti-rust treated surface, extending lifespan

Naltako conducting load testing on hydraulic lift table

Flexible Mobility System (Mobile Models)

4 premium PU wheels: 2 fixed + 2 swivel 360°
Integrated foot brake on swivel wheels, holding firm during operation
Smooth movement, no noise

Simple Controls

Mechanical lift table: Hydraulic foot pump, easy operation
Electric lift table: Push-button control, labor-saving
Remote control integration available upon request

Practical Industrial Applications

Factories & Production Workshops

Lifting and lowering materials and semi-finished products between production stages, helping to balance the height between machinery and workstations, minimizing effort for workers.

Warehousing & Logistics

Lifting goods to a height suitable for container trucks and pallet racks, optimizing loading and unloading processes, saving time and labor costs.

Maintenance & Repair

Lifting equipment and machinery to a convenient height for inspection and maintenance. Especially useful in the automotive and precision engineering industries.

Construction & Installation

Supporting ceiling and wall construction, electrical and water system installation at heights, replacing traditional scaffolding, safer and more efficient.

Printing & Packaging Industry

Lifting paper rolls and printing materials onto machines, adjusting height to suit each production stage.

Why Choose Naltako Hydraulic Lift Tables?

✓ Guaranteed Quality

100% genuine imported hydraulic components
Production process according to ISO standards
Strict quality inspection before factory shipment

✓ Custom Design

Naltako accepts design and manufacturing of lift tables according to specific dimensions and load capacities of each business, meeting every unique need.

✓ Superior Warranty Policy

24-month warranty for the entire device
Lifetime warranty on the steel frame system
24/7 technical support, free periodic maintenance for the first year

✓ All-in-one Service

In-depth consultation, free on-site survey
On-site installation, detailed operation instructions
Supply of genuine spare parts, ready for quick support

✓ Competitive Price

As a direct manufacturer, Naltako commits to the best market price with superior quality. See detailed Hydraulic lift table price list.

Guide to Choosing the Right Lift Table

Step 1: Determine load capacity

Choose a lift table with a load capacity 20-30% greater than the actual weight needed to be lifted to ensure safety and durability.

Step 2: Determine lifting height

Accurately measure the distance from the ground to the lifting position, noting the minimum height when lowered.

Step 3: Choose lift table type

Mobile: If frequent movement between locations is needed
Fixed: If lifting/lowering at a fixed point with high frequency

Step 4: Power source

Mechanical lift table: Suitable where there is no power source, small loads
Electric lift table: Saves labor, suitable for heavy loads, frequent use

Step 5: Consult catalog

View Naltako hydraulic lift table catalog for more details on models and specific applications.

Frequently Asked Questions (FAQ)

1. Do hydraulic lift tables need periodic maintenance?

Yes. You should check and change hydraulic oil every 6 months, and grease joints every 3 months to ensure smooth operation.

2. Delivery and installation time?

In-stock items: 2-3 days. Custom-designed items: 7-15 days depending on complexity.

3. Can mechanical lift tables be upgraded to electric?

Yes. Naltako supports upgrading and renovating old equipment to optimize performance.

4. Can lift tables operate outdoors?

Yes, but they need protection from direct rain and a high corrosion-resistant version should be chosen.

Contact for Advice & Quote Now

Naltako’s engineering team is ready to provide free consultation, helping you choose the optimal hydraulic lift table solution for your business.

Hotline: 0981 977 898 – 0986 868 003

Manufacturing Plant: Dong De Village, Phu Yen, Chuong My, Hanoi

Office: 4th Floor, SME Hoang Gia Building, To Hieu, Ha Dong, Hanoi

👉 Request a quote now to receive special offers for new customers!
