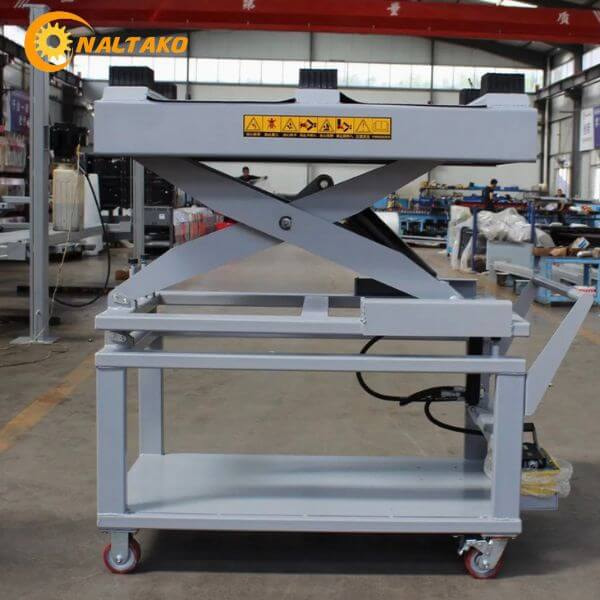

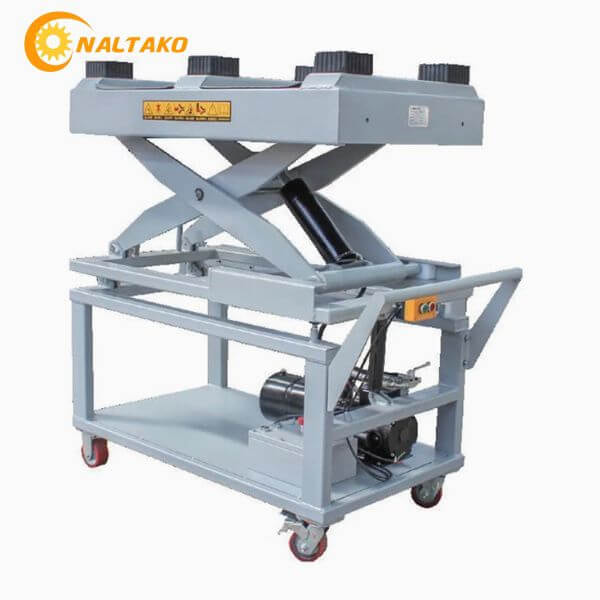

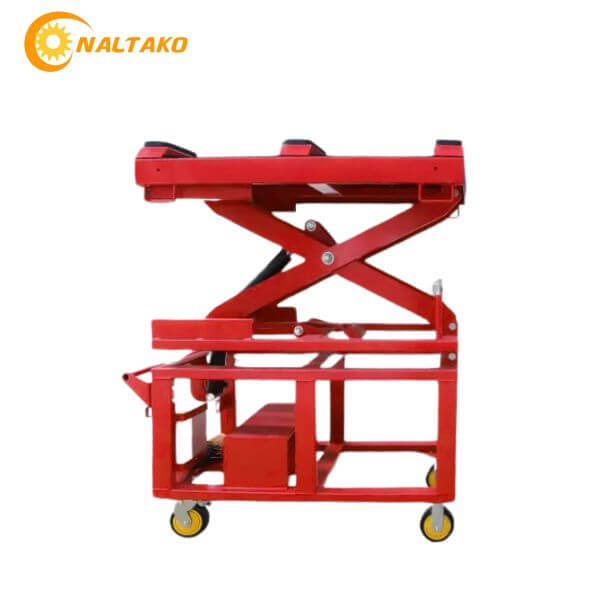

General Introduction to Electric Vehicle Battery Lift Tables

An EV battery lift table is a specialized device designed to support the process of removing and installing electric vehicle (EV) batteries safely and efficiently. With a hydraulic lifting system and flexible customization capabilities, the lift helps technicians perform work quickly, accurately, and ensures safety throughout the working process.

This hydraulic lift table is particularly suitable for electric vehicle repair shops, manufacturing plants, and EV maintenance centers.

Main Functions of the EV Battery Lift Table

The EV battery lift table is designed with the primary function of supporting the easy and safe removal and installation of electric vehicle batteries.

The device helps technicians save time and effort in disassembly and assembly, while ensuring accuracy and preventing damage to vehicle parts.

The electro-hydraulic lifting system, combined with tilting capabilities and height adjustment, creates a convenient workspace suitable for various user needs.

5 Outstanding Features of the EV Repair Lift Table

High Load Capacity: The electric car battery lift table can lift loads up to 1500kg, meeting the requirements for most types of EV batteries.

Electric car battery lift table capable of lifting up to 1500kg

High Mobility: Equipped with omni-directional wheels, the lift table moves easily within the workspace.

Flexibility: Tilt can be adjusted up to 7 degrees, helping to remove/install batteries when the vehicle is not in a horizontal position.

Safety: High-voltage insulating protection plates protect technicians from the risk of electric shock.

Custom Design: Naltako offers product customization services according to customer requirements, meeting all special needs.

Reference Specifications for EV Battery Lift Table

1000kg Hydraulic Electric Vehicle Battery Lift Table

Technical Specifications	Details
Brand	Naltako
Lifting Capacity	1 ton (1000kg)
Lifting Type (Double Cylinder)	Voltage 220V 1-phase 50Hz 2.2kW
Design	Scissor
Condition	New
Max Lifting Height	1850mm
Min Lifting Height	1100mm
Tilt Angle	7 degrees
Hydraulic Oil Volume	1.2L

1500kg Hydraulic Electric Vehicle Battery Lift Table

Technical Specifications	Details
Brand	Naltako
Lifting Capacity	1.5 tons (1500kg)
Lifting Type (Double Cylinder)	Voltage 220V 1-phase 50Hz 2.2kW
Design	Scissor
Condition	New
Max Lifting Height	1720mm
Min Lifting Height	1050mm
Platform Length	1200mm
Tilt Angle	7 degrees
Hydraulic Oil Volume	1.2L

Applications of Specialized EV Lift Tables

EV battery lift tables are widely used in EV repair service workshops, EV manufacturing plants, and battery maintenance and testing centers.

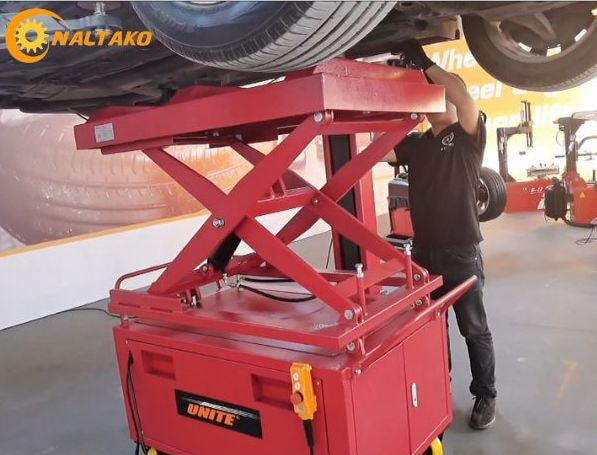

The device is widely used in EV repair service workshops

Additionally, the lift table can be used for removing and installing other vehicle parts such as engines, gearboxes, drive shafts, suspension systems, brakes, and chassis, helping to optimize the car repair process.

Safety and Convenience Features

The electric hydraulic lift table can tilt 7 degrees, making it easy to remove and install batteries when the vehicle is not in a completely horizontal position; this is especially useful when the car cannot be placed in an ideal position.

High-voltage insulating protection plates protect users from the risk of electric shock while working with high-voltage batteries.

The EV repair lift table is equipped with heavy-duty 360-degree swivel wheels, making it easy to move and lock in place when necessary.

Lifting height is adjustable from 1100mm to 1800mm, suitable for various vehicle types and work requirements.

The specialized EV lift table can be used without complex installation, saving time and effort for technicians.

Instructions for Using the EV Lift Table

Step 1: Ensure the EV battery lift table is placed on a solid surface and the wheels are locked.

Step 2: Adjust the height of the EV battery lift table to match the height of the battery.

Step 3: Use the control system to raise the table and adjust the tilt if necessary to align the battery position.

Step 4: Once the battery has been removed/installed, lower the lift table and move it to the required location.

Common Problems and Solutions

Motor Issues:

Solution: Replace the 220V motor with a 380V motor or replace with a dual-speed motor if necessary.
Wiring Connection: Ensure that the wires are connected correctly to ensure safety.

Pressure and Force Issues:

Solution: Adjust the machine’s working pressure to fix weak pressing force (bead breaking).

Noise Issues:

Solution: Check the motor and gearbox to identify the source of the noise and fix it promptly.

Scratch and Rim Protection Issues:

Solution: Adjust the mounting head and use appropriate oil to protect the rim from scratches.

Pedal Issues:

Solution: Check and adjust the pedal if it does not return to the original position.

Why Choose Naltako Electric Hydraulic Car Lift Tables?

Products are manufactured domestically with reasonable prices, suitable for the budgets of many customers.
Long-term warranty, timely consultation, and 24/7 customer support.
Spare parts and repairs are diverse and cheaper than imported goods.
