800kg Hydraulic Lift Table (or lift table cart) is a powerful support device for lifting and moving heavy goods, helping to save labor and improve work productivity. With a compact design, ease of use, and reasonable price, the 800kg load capacity hydraulic lift table is widely applied in many fields, from warehouses and manufacturing workshops to stores and supermarkets.

NỘI DUNG BÀI VIẾT

Technical specifications of 800kg hydraulic lift table

Technical Specifications	Details
Lifting capacity	800 kg
Max lifting height	1000 mm
Min lowered height	420 mm
Lifting stroke	580 mm
Platform dimensions	1000 x 510 mm
Overall length	1150 mm
Table thickness	2 mm
Wheels	4 moving wheels with positioning brakes, diameter 100mm, PU material
Hydraulic pump type	Manual / Electric pump
Lift frame material	Alloy steel
Total weight	115 kg
Brand	Naltako
Origin	Vietnam
Warranty	24 months

Structure of 800kg hydraulic lift table

The 800kg hydraulic lift table is composed of 6 main parts:

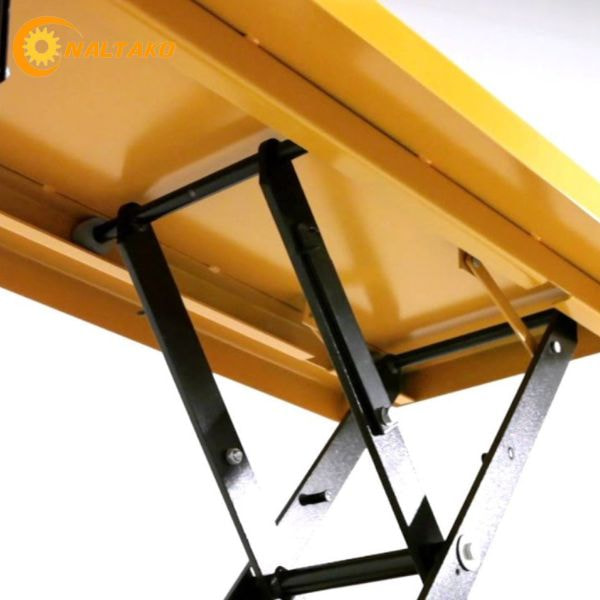

Lift frame: Sturdy with X-shaped cross-woven solid steel design, ensuring durability and stable lifting capability.
Platform (Table top): Spacious, electrostatic powder coated to prevent rust, protecting the surface and increasing longevity.
Hydraulic system: Responsible for lifting and lowering goods gently and efficiently.
Foot pedal: Made of sturdy steel, used to activate the hydraulic system, pumping oil into the cylinder, creating pressure to push the lift frame up.

- Release handle: Designed in a convenient position for the user (usually on the handle of the lift table), used to control the hydraulic release valve, allowing oil in the cylinder to flow back to the reservoir, thereby lowering the table.
