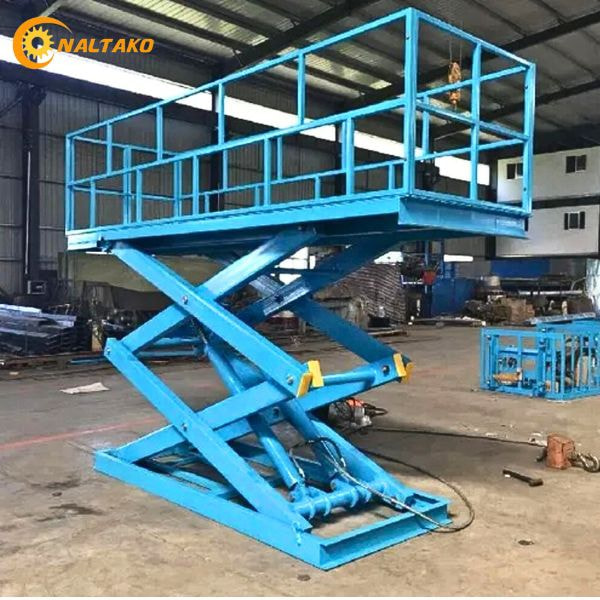

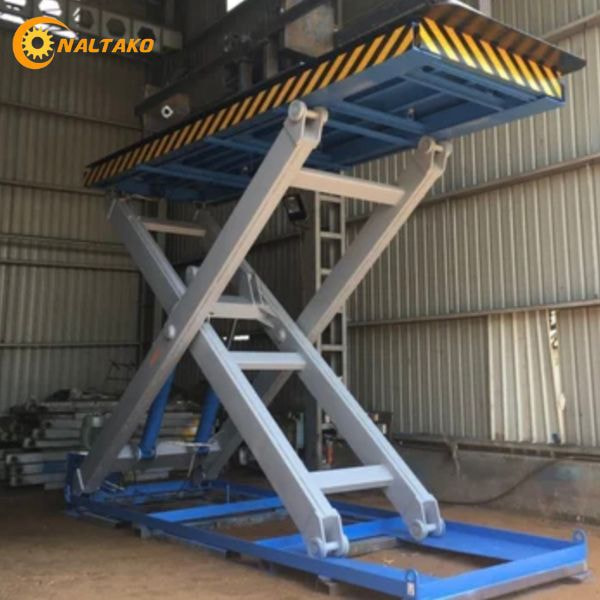

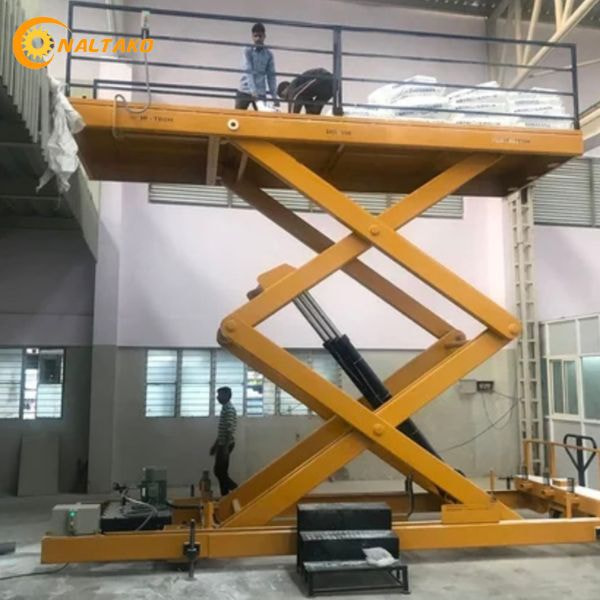

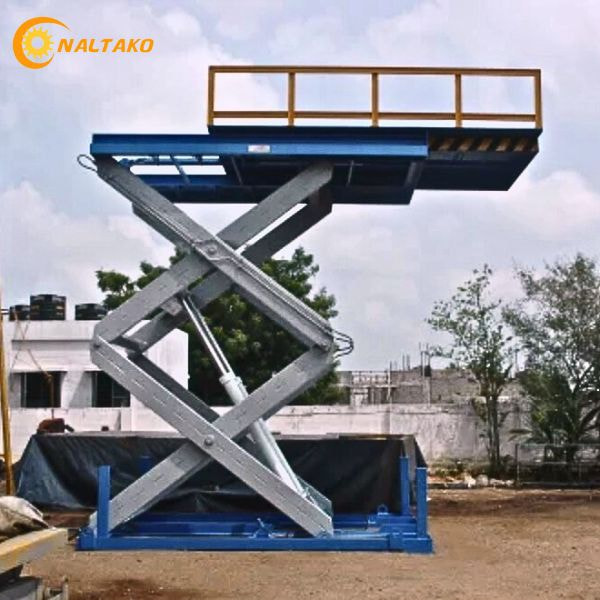

What is a 4m to 9m High Lift Table?

A 4m to 9m high lift table is a type of hydraulic lift table capable of lifting goods to a height of 4 meters to 9 meters (lifting height). This is a lift table with a large lifting height, used in industries, warehouses, production workshops, etc., to lift heavy, bulky goods to high places safely and effectively.

This equipment also features diverse lifting capacities, from 1 ton to 3 tons, meeting the needs of lifting various types of goods.

Similar to standard hydraulic lift tables, the product is equipped with a safety system, is simple to operate, and easy to control.

Detailed Specifications of 4m to 9m High Lift Tables

Lifting Capacity (kg)	Lifting Height (mm)	Maximum Height (mm)	Minimum Height (mm)	Platform Size (mm)	Lifting Time (s)
1000	4000	4630	630	2000 x 2000	40
2000	4000	4720	720	2000 x 2000	40
3000	4000	4780	780	2000 x 2000	40
1000	5000	4750	750	2000 x 2000	60
2000	5000	5860	860	2000 x 2000	60
3000	5000	6030	1030	2000 x 2000	60
1000	6000	6970	970	2000 x 2000	70
2000	6000	7100	1100	2000 x 2000	70
3000	6000	7120	1210	2000 x 2000	70
1000	9000	10250	1250	2500 x 2000	100
2000	9000	10390	1390	2500 x 2000	120

Notes:

Lifting height: The distance the lift table platform moves from the lowest position to the highest position.
Maximum lifting height: The distance from the ground to the highest position the platform can reach.
Formula: Maximum lifting height = Lifting height + Minimum height

Advantages of Naltako 4/5/6/7/8/9m Lift Tables

✔️ Naltako 4m to 9m high lift tables are capable of lifting goods to heights ranging from 4m to 9m, meeting lifting needs in spaces with high ceilings such as warehouses, large production workshops, logistics centers, etc.

✔️ Lifting capacities ranging from 1000kg to 3000kg allow for lifting various types of goods with different weights, from packaged goods and pallets to machinery and equipment.

✔️ Lifting time from 40s to 120s helps improve work productivity, minimize waiting time, and increase goods transport efficiency.

✔️ The large platform size (2000 x 2000mm to 2500 x 2000mm) helps lift bulky goods easily and safely.

✔️ Installation and operation of the equipment are relatively simple, requiring no complex technical skills.

✔️ The 4/5/6/7/8/9m lift tables are designed to be sturdy, ensuring safety for goods and operators during use.
