What is a 2-ton Moveable Dock Ramp?

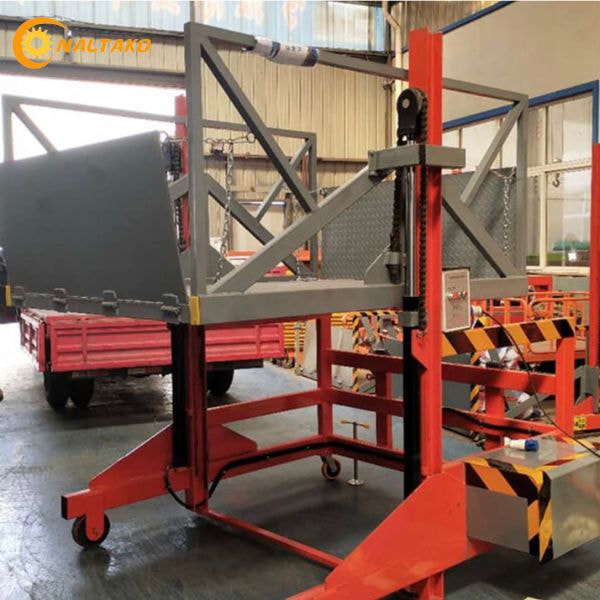

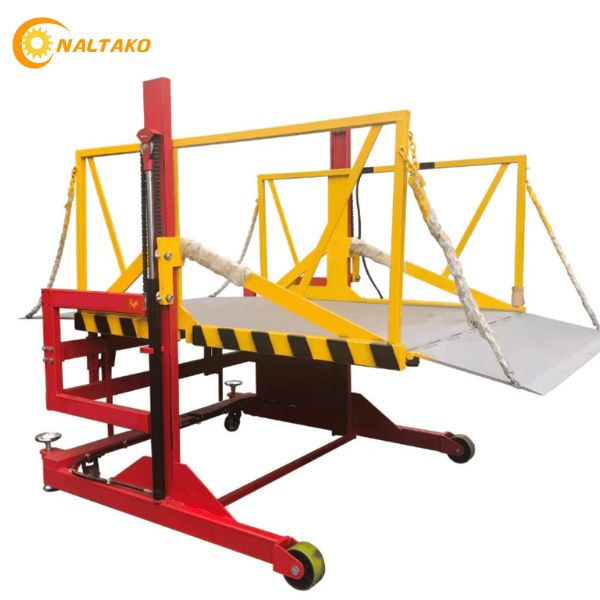

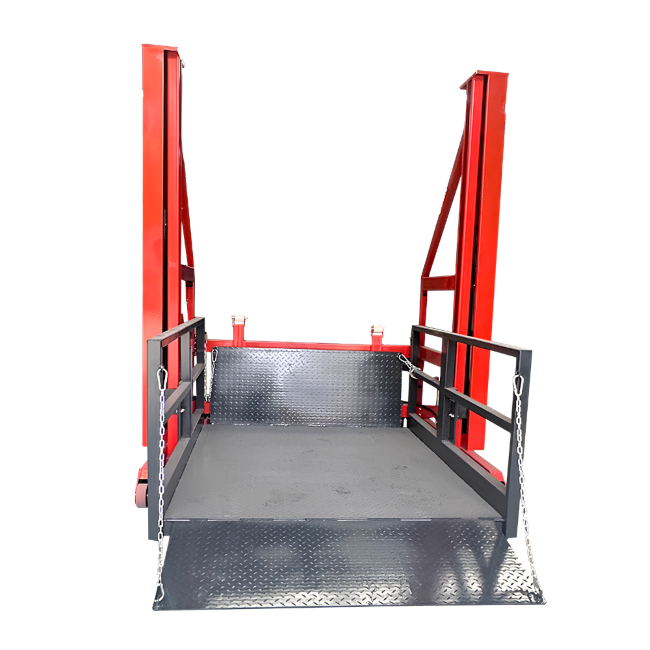

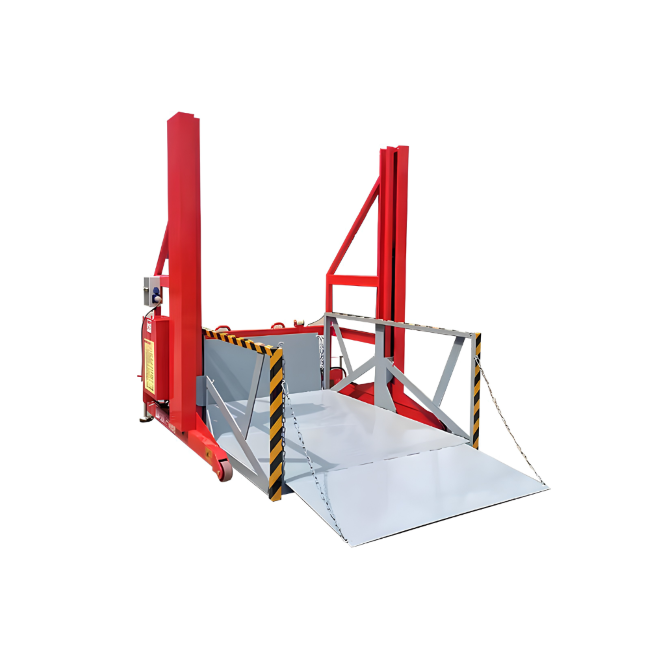

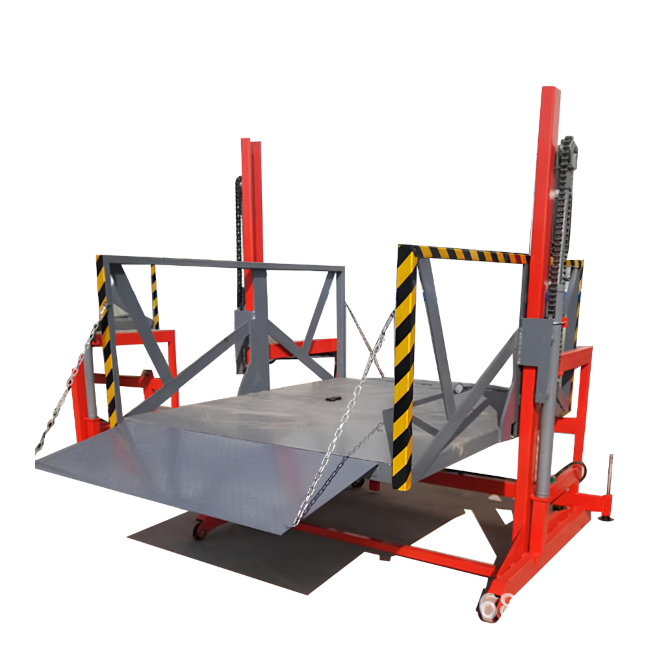

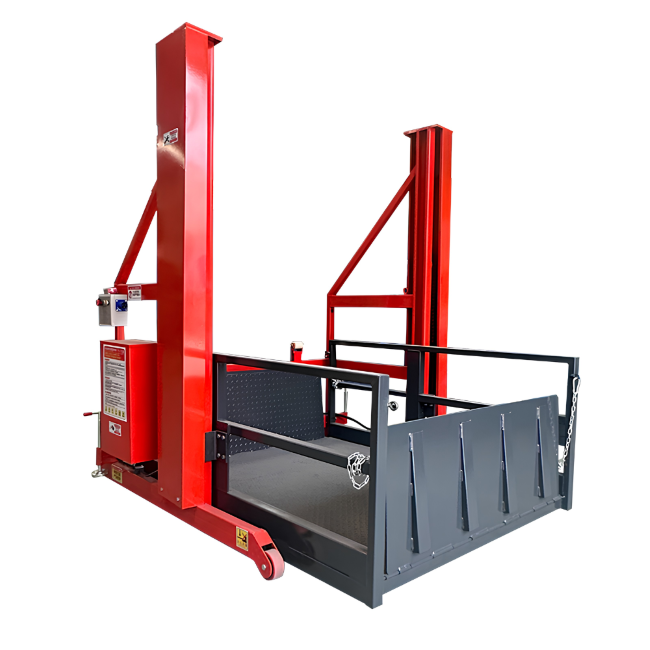

The 2-ton Moveable Dock Ramp is a hydraulic lifting device and a variant of the traditional dock leveler. Instead of being fixed in one position, the 2-ton moveable dock ramp can be moved to any location within the warehouse thanks to a wheel system to lift and lower goods, or to facilitate forklifts moving up and down container trucks.

With a safe lifting capacity of up to 2000kg and flexible height adjustment from 90mm to 1600mm, the equipment operates smoothly thanks to a hydraulic system combined with an electrical system featuring a remote control.

The biggest advantage of the moveable dock ramp is its ability to completely replace fixed docks, significantly saving construction investment costs. The device can be easily moved by a forklift or on wheels between workstations, creating high flexibility during use. It comes with safety features such as overload valves, hydraulic dampers, and a remote control system.

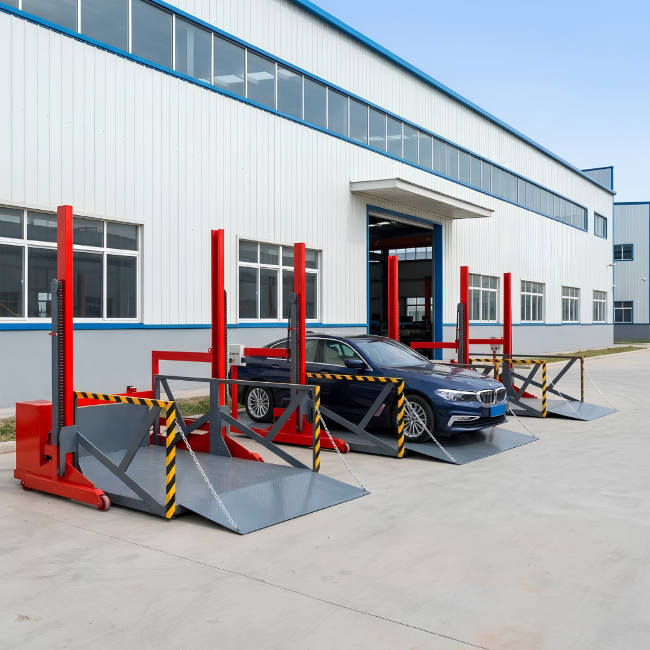

The 2-ton moveable dock ramp is commonly used in warehouses, factories, logistics centers, container yards, and commercial centers – places with frequent cargo handling needs requiring high mobility in operations.

Reference: 1-ton Moveable Dock Ramp

Technical Specifications

Technical Characteristics	Parameters
Brand	Naltako
Capacity	2000kg
Lifting Range	1600mm
Lowered Height	90mm
Table Dimensions (LxW)	2000 x 1600mm
Motor Power	3.0kW
Power Supply	DC24V / AC380V-3P
Lifting speed with load	2.5 m/min
Max operating gradient angle	8-10°
Lift table weight	850kg
Wheels	4 wheels (2 fixed, 2 swivel with brakes)
Operating temperature	-10°C ~ +40°C
Operating noise level	≤ 70 dB(A)
Surface material	Anti-slip steel
Control system	Electric cabinet
Motor protection rating	IP54
Safety standards	CE, ISO Standards
Origin	Vietnam
Warranty	24 months

User Manual for 2-ton Moveable Dock Ramp

Step 1: Preparation

Ensure the 2-ton moveable dock ramp is operating normally; the working area must be clear and flat.
Ideal operating conditions: Ground slope ≤ 10° / Lifting load not exceeding 2000kg.

Step 2: Moving

Lower the dock ramp to its lowest position.
Use a forklift or push/pull it to the working position.
Lock the wheels and align the position appropriately.

Step 3: Operation

Connect to a 380V power source (3-phase) and adjust the platform height to match the truck/container using the control cabinet to simultaneously control and open the lip. The forklift will move back and forth on the platform to load and unload goods.

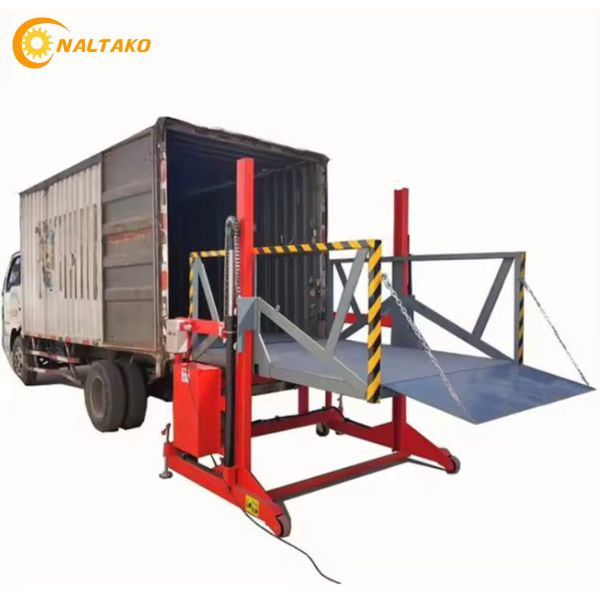

Adjust the height of the 2-ton moveable dock ramp to match the truck bed height

During operation, absolutely do not stand under the platform when lifting, do not move the device while loaded, and press the emergency stop button if any abnormality is detected.

Step 4: Finishing

Perform the operations in reverse order of Step 3 and Step 2: Retract the lip -> lower the platform -> turn off the power -> Unlock the wheels -> Move to storage area.
Note: The working process of the 2-ton moveable dock ramp only ends when there are no goods on the platform or the forklift has left the platform surface.
