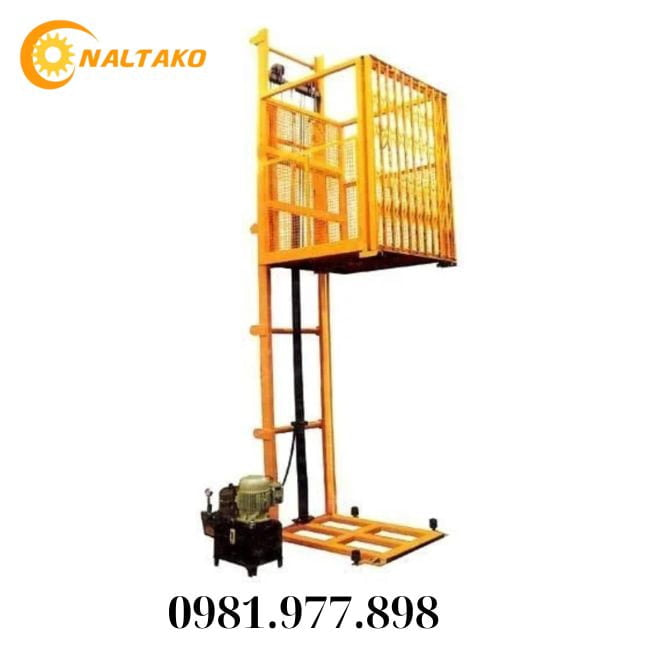

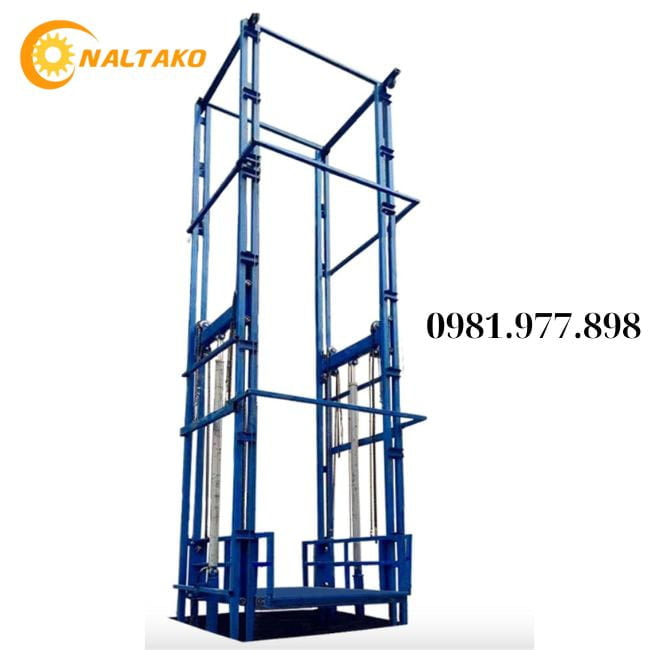

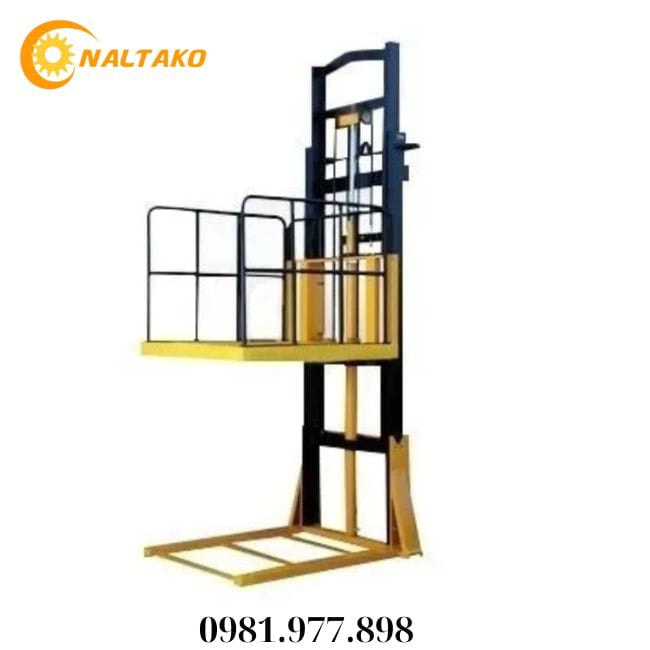

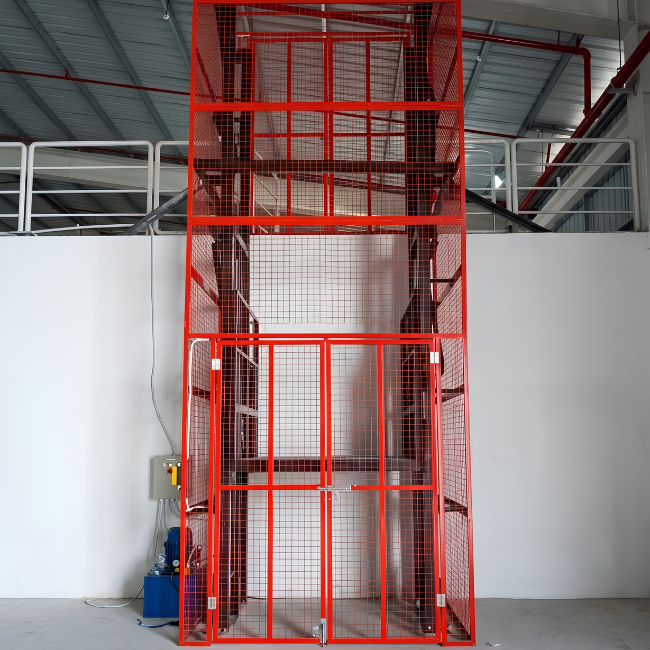

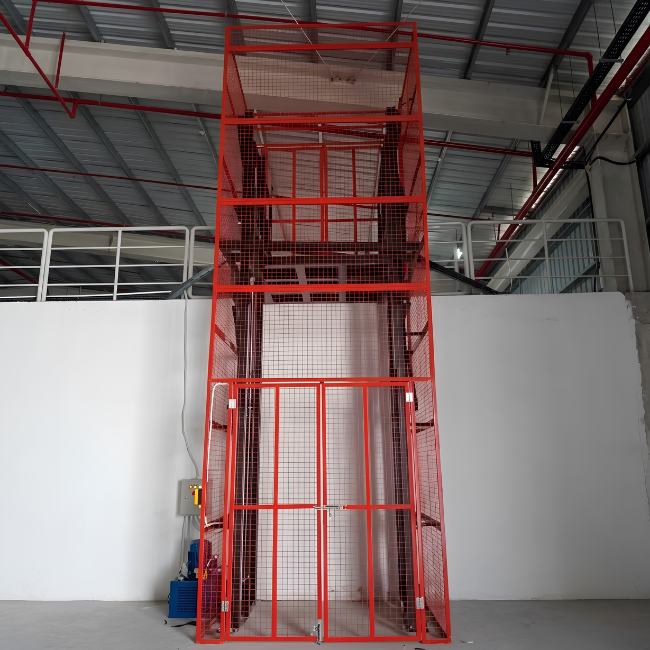

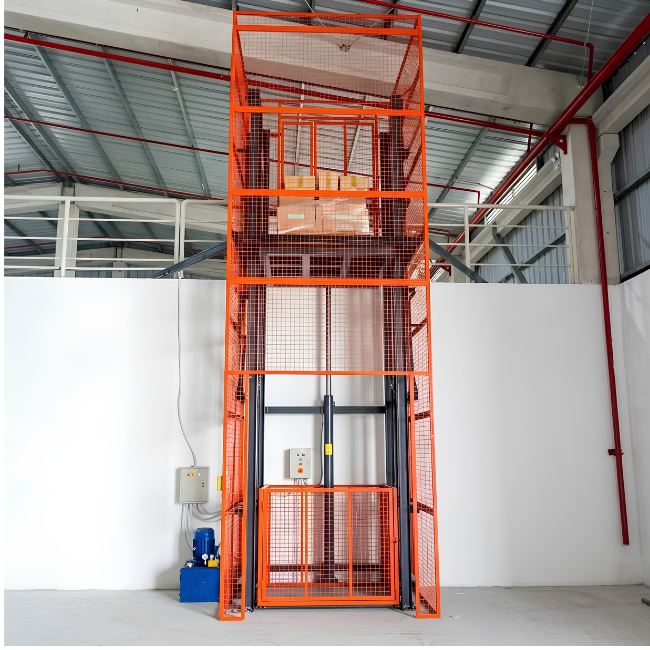

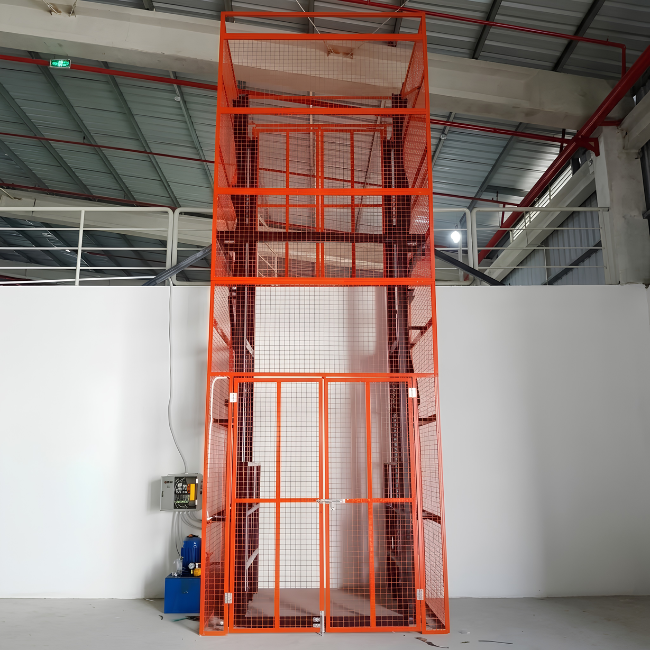

1000kg Freight Elevator

What makes Naltako’s 1000kg freight elevator stand out?

Powerful hydraulic lifting system:

Using modern hydraulic technology, ensuring the lifting process is smooth, stable, and safe. At the same time, it maximizes energy savings and minimizes operating costs.

Competitive pricing:

As a direct design, manufacturing, and distribution unit, Naltako commits to bringing high-quality products at the best market prices, without intermediaries.

Genuine imported components:

The components constituting the elevator are all imported from reputable brands, ensuring superior quality and durability.

Professional engineering team:

With over 7 years of experience in the field of lifting equipment, Naltako’s engineering team is always ready to consult, support, and resolve all technical issues related to the product.

Reputation and experience:

Naltako is proud to be a pioneer in the field of designing, manufacturing, and supplying hydraulic lifting equipment such as cargo winches… in Vietnam.

With the above advantages, Naltako’s 1000kg freight elevator deserves to be the top choice for every business, meeting the maximum needs for efficient and safe cargo transportation.

Reference:

300kg Cargo Lift

Reference technical specifications for 1000kg freight elevator

Basic specifications

• Maximum lifting capacity: 1000kg (1 ton)
• Maximum lifting height: Customized upon request (From 2m to 10m)
• Lift table dimensions: Customized upon request (From 1m x 1m to 2m x 2m)
• Power supply: 220V/50Hz or 380V/50Hz
• Motor power: Depends on lifting height and speed (From 1.5kW to 3kW)
• Lifting speed: Customized upon request (From 4m/min to 8m/min)

Hydraulic system

• Hydraulic cylinder: High-strength steel, diameter customized according to load and lifting height
• Hydraulic pump: Genuine import, capacity suitable for the motor
• Hydraulic valve: Precisely controls lifting/lowering speed, ensuring operational safety
• Hydraulic oil: Specialized hydraulic oil, viscosity suitable for operating conditions

Control system

• Control cabinet: Integrated with overload, overcurrent, and phase loss protection devices, ensuring electrical safety
• Control buttons: Simple design, easy to use, conveniently arranged for the operator
• Emergency stop system: Stops operation immediately in case of incidents, ensuring safety for people and goods

Structure

• Elevator frame: High-strength steel, electrostatic powder coating against rust
• Lift table: Anti-slip steel plate, thickness suitable for load capacity
• Wheel system: Easy to move when not in use

Safety features

• Hydraulic safety valve: Prevents overload, ensures system safety
• Mechanical lock: Keeps the lift table fixed during power outages
• Limit switch: Limits lifting/lowering travel, avoids collision
• Protective fence: Prevents labor accidents

Note: These are only reference specifications. Actual specifications may vary depending on specific customer requirements and Naltako’s design.

Applications of 1-ton hydraulic freight elevator

Naltako’s 1000kg hydraulic freight elevator is not only an optimal cargo transportation solution but is also flexibly applied in many different fields, especially combining cargo lifting and personnel lifting, bringing superior efficiency to businesses.

• Lifting goods, construction materials to high shelves, onto trucks…
• Lifting people up to repair machinery, install equipment, construction parts, paint walls…

Quotation for 1000kg freight elevator

The price of Naltako’s 1000kg hydraulic freight elevator depends on many factors such as: lifting height, lift table size, lifting speed, safety features, control system…

To get the most accurate quotation, please contact Naltako directly via hotline or website. Our team of consultants will support consultation and detailed quotation based on your specific needs.
