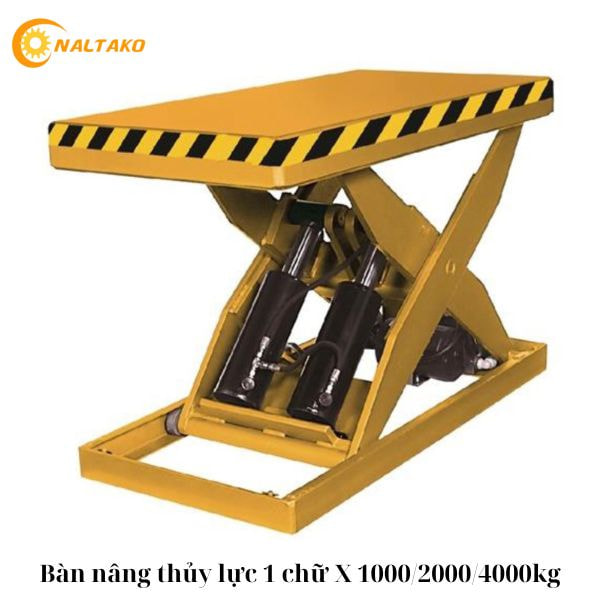

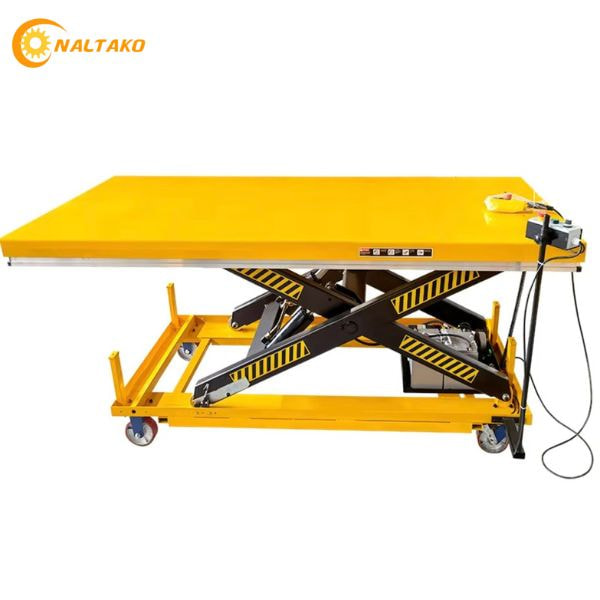

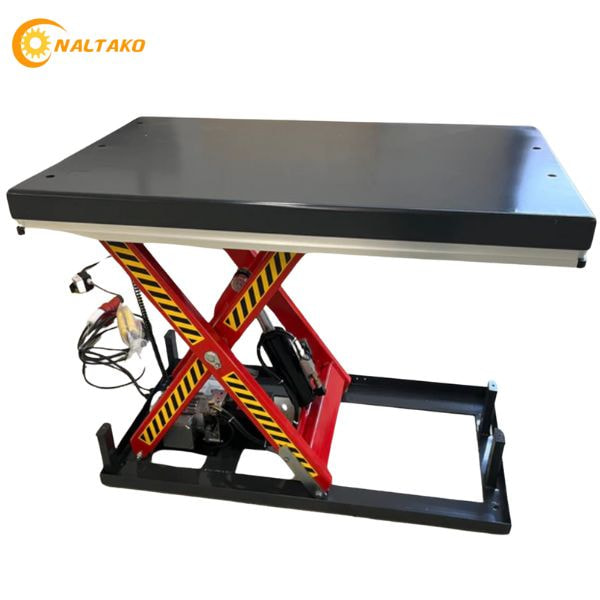

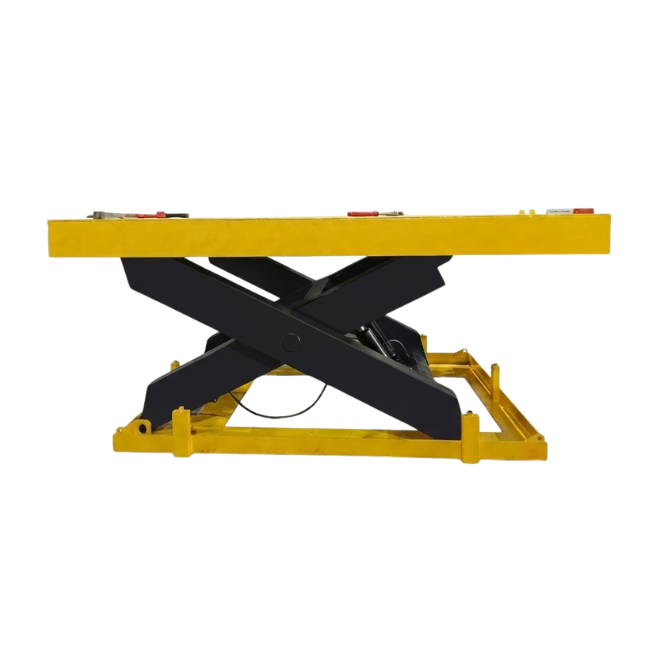

Introduction to Single Scissor Lift Table 1000/2000/4000kg

The 1000/2000/4000kg Single Scissor Lift Table is lifting equipment commonly used in factories, warehouses, and production workshops, helping to lift goods to a certain height easily and safely. With a simple, compact design and easy operation, the single scissor lift table is increasingly favored for the efficiency and economy it brings.

The single scissor Hydraulic lift table has a simple, compact structure and is easy to move. Compared to double or triple scissor lift tables, this product has a cheaper price, saving costs.

However, the 1000/2000/4000kg single scissor lift table has a low lifting height, unsuitable for tasks requiring lifting goods higher than 1.5 meters.

Specifications of Naltako 1000/2000/4000kg Single Scissor Lift Table

Load capacity 1000kg

Parameter	Value
Lifting capacity (kg)	1000
Table size (mm)	1300×820 – 2000×1700
Min/max lifting height (mm)	205/990 – 240/1300
Lifting time (s)	20-40
Motor power (kW)	0.75 – 1.5
Voltage (V)	220/380
Self-weight (kg)	150 – 400
Hydraulic system	Hydraulic pump, hydraulic cylinder
Control box	Push-button box, remote control integration available
Overall dimensions (mm)	1400x900x1200 – 2500x2000x1500
Oil flow rate (liters/min)	4 – 6
Oil type	Hydraulic oil AW 46
Platform material	Anti-slip checkered plate
Frame material	U, I shaped steel
Control system	Push button
Safety standard	EN 1570, ASME B20.1

Load capacity 2000kg

Parameter	Value
Lifting capacity (kg)	2000
Table size (mm)	1300×850 – 2000×1800
Min/max lifting height (mm)	230/1000 – 250/1400
Lifting time (s)	20-35
Motor power (kW)	1.5 – 2.2
Voltage (V)	220/380
Self-weight (kg)	200 – 500
Hydraulic system	Hydraulic pump, hydraulic cylinder
Control box	Push-button box, remote control integration available
Overall dimensions (mm)	1500x1000x1300 – 2600x2100x1600
Oil flow rate (liters/min)	6 – 8
Oil type	Hydraulic oil AW 46
Platform material	Anti-slip checkered plate
Frame material	U, I shaped steel
Control system	Push button
Safety standard	EN 1570, ASME B20.1

Load capacity 4000kg

Parameter	Value
Lifting capacity (kg)	4000
Table size (mm)	1700×1200 – 2200×1800
Min/max lifting height (mm)	240/1050 – 350/1300
Lifting time (s)	30-45
Motor power (kW)	2.2 – 3.0
Voltage (V)	380
Self-weight (kg)	350 – 650
Hydraulic system	Hydraulic pump, hydraulic cylinder
Control box	Push-button box, remote control integration available
Overall dimensions (mm)	1800x1300x1400 – 2700x2200x1700
Oil flow rate (liters/min)	8 – 10
Oil type	Hydraulic oil AW 46
Platform material	Anti-slip checkered plate
Frame material	U, I shaped steel
Control system	Push button
Safety standard	EN 1570, ASME B20.1

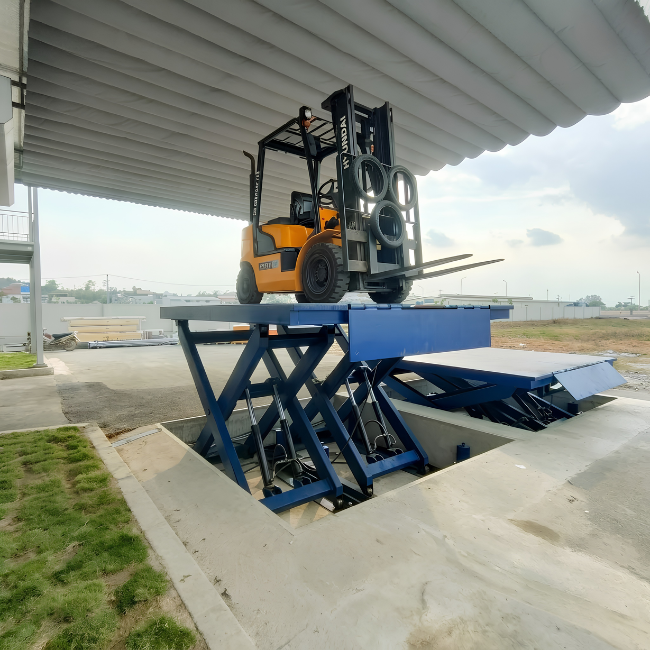

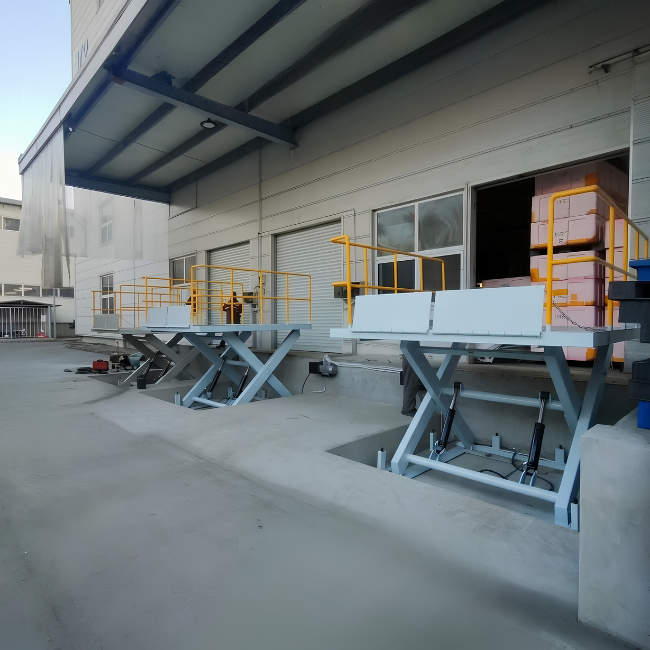

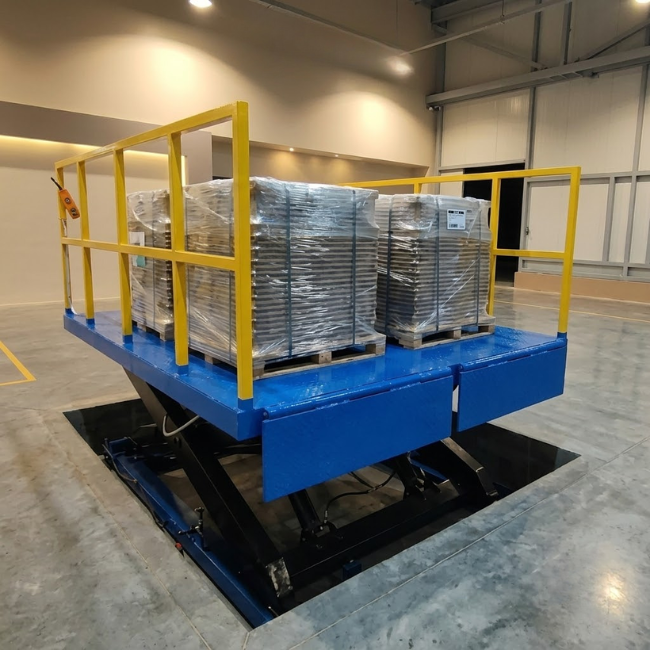

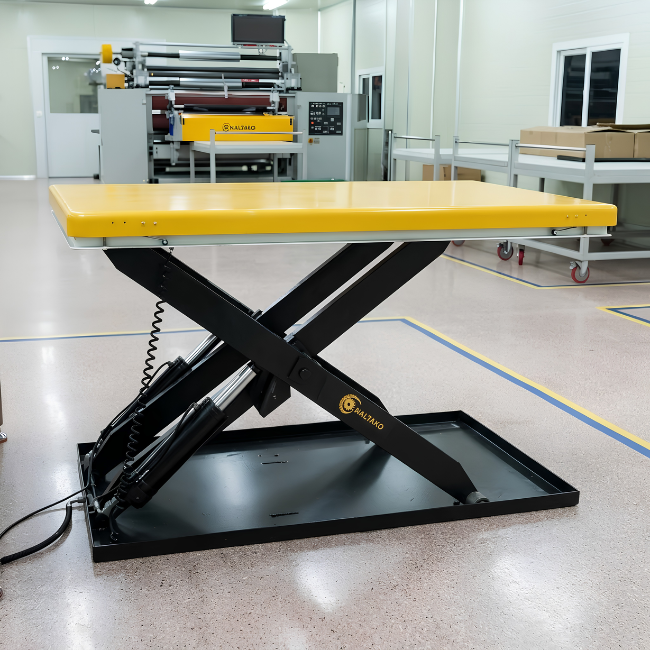

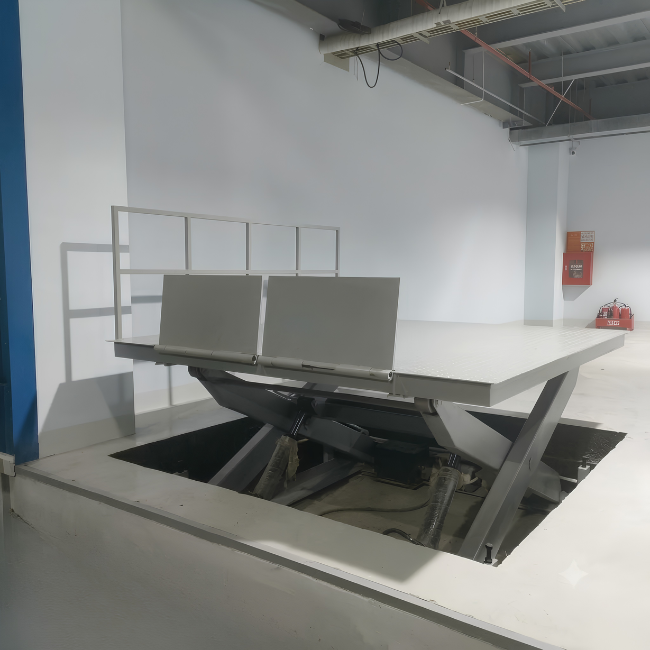

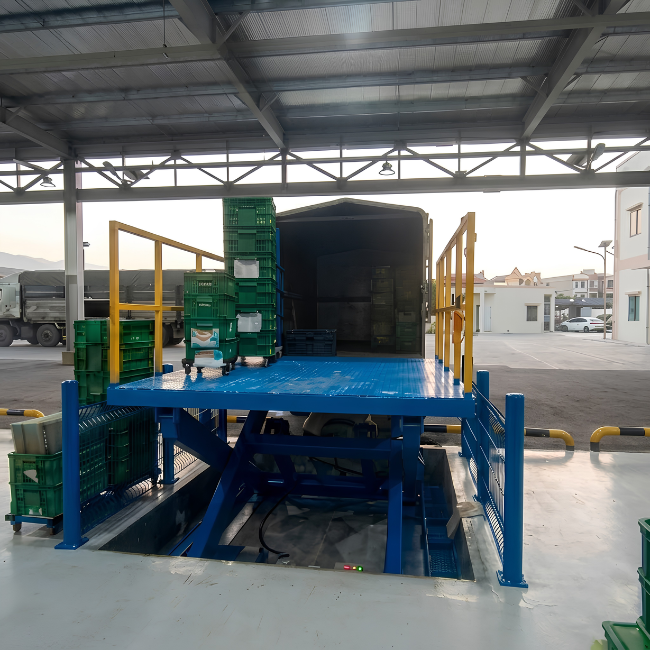

Applications of Single Scissor Lift Table

✔️ Lifting goods in factories, warehouses, production workshops.

✔️ Supporting assembly and repair of machinery and equipment.

✔️ Lifting pallets, cargo packages.

✔️ Used in production and packaging lines.

The product is an ideal solution for businesses, production facilities, and stores needing to lift light and medium goods in limited spaces. With advantages in cost, convenience, and efficiency, the single scissor lift table helps optimize production processes and improve labor productivity.

Contact Naltako for consultation and detailed quotation:

Factory: Dong De Village, Phu Yen, Chuong My, Hanoi.
Representative Office: 4th Floor, SME Hoang Gia Building, To Hieu, Ha Dong, Hanoi.
Hotline: 0981 977 898 – 0986 868 003
Email: nhat.mtk53@gmail.com
