Are you struggling with lifting heavy goods, wasting time and effort? The U-shaped lift table is the perfect solution to help you solve this problem!

The U-shaped hydraulic lift table features a sturdy design, smooth lifting system, and high load capacity, helping you lift goods safely, efficiently, and cost-effectively. Let’s explore this useful product in the article below.

NỘI DUNG BÀI VIẾT

What is a U-shaped Lift Table?

The U-shaped lift table is a type of manually controlled Hydraulic Lift Table. The device is specialized for lifting pallets onto shelves or conveyors; hand pallet trucks can also be driven directly into the lift table to deposit goods.

Key Features of the U-shaped Hydraulic Lift Table

– U-shaped lifting table.

– The U-shape is specially designed for lifting pallets, requiring no pit or loading dock.

– Load capacity from 600kg – 1500kg.

– Remote power unit with pedestal and controls.

– Upper platform fitted with safety bar to prevent obstruction contact.

– 24V control box with UP and DOWN buttons and emergency stop.

– External power pack equipped with a relief valve to prevent overload and a flow control valve to control lowering speed.

– Hose burst safety valve to stop the lift table from lowering in case of hose rupture.

Reference Specifications

Model	Unit	NTKU600	NTKU1000	NTKU1500
Load capacity	kg	600	1000	1500
Outer platform size	mm	1400*900	1400*1100	1600*1100
Inner U-shape size	mm	1335*947	1335*947	1335*947
Max lifting height	mm	85/860	85/860	105/860
Min lifting height	mm	85	85	105
Lifting time	s	25-35	25 ~ 35	20 to 40
Power supply	V/Hz	380V/50Hz	380V/50Hz	380V/50Hz
Net weight	kg	207	280	380

Advantages of U-shaped Hydraulic Lift Tables

The U-shaped lift table possesses many outstanding advantages compared to other types on the market, bringing optimal efficiency and safety to users:

The product has many outstanding advantages

☑️ Specialized product for lifting pallets safely and effectively without a pit or loading dock.

☑️ U-shaped structure helps disperse force evenly, increasing stability during operation.

☑️ The table top of the U-shaped lift is designed to be spacious, capable of holding multiple pallets at once.

☑️ The product is equipped with an intelligent control system, easy to use and operate.

☑️ The lift table has diverse load capacities starting from 500kg, meeting various lifting needs. It can handle tasks of hydraulic lifts from 1000kg to under 1500kg.

☑️ The device has a simple structure, easy to use and maintain. Parts are easily disassembled and replaced when necessary, saving repair costs and time.

Applications of U-shaped Hydraulic Lifts

👉 The device is commonly used in warehouses and workshops to lift palletized goods safely and effectively.

👉 Additionally, the product strongly supports lifting and moving heavy goods with high load-bearing capacity and good stability.

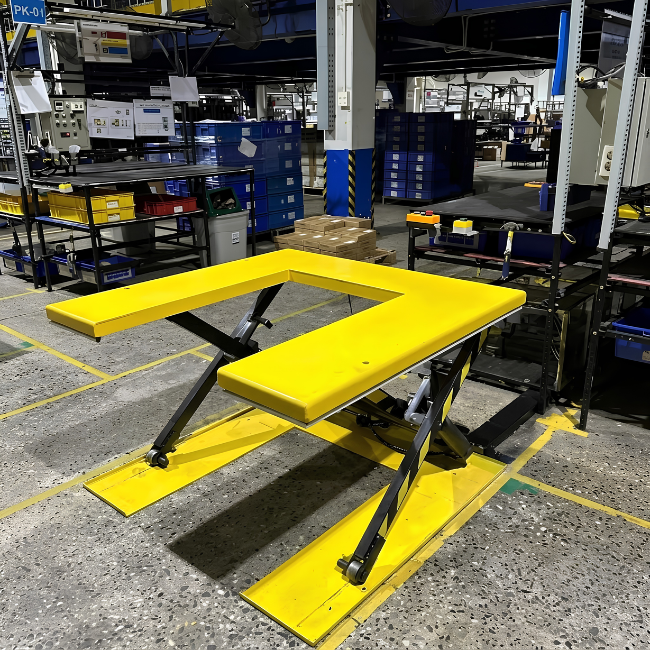

U-shaped lift table applied in many industries

👉 The U-shaped lift table is also used in many other industries such as: Manufacturing, construction, food processing, restaurants, hotels to lift raw materials and finished products.

In summary, the lifting device can be used for many other purposes depending on the user’s needs.

Reputable Supplier of U-shaped Lift Tables

Naltako Company is a unit specializing in providing reputable U-shaped lift tables in Vietnam. With over 7 years of experience in this field, Naltako has affirmed its position in the market and become a trusted partner of many businesses.

We are also a direct manufacturer, designer, installer, and provider of warranty and maintenance, ensuring the best prices.

U-shaped lift table at Naltako

Naltako commits:

Provide genuine, high-quality hydraulic lift tables at competitive prices.
Team of highly professional engineers, free consultation, and dedicated customer support.
Professional installation, warranty, and maintenance services.

Contact Naltako now for consultation and detailed quotes:

Website: https://naltako.vn/
Hotline: 0981.977.898
Email: nhat.mtk53@gmail.com

Conclusion

With modern design, superior features, and reasonable cost, the U-shaped lift table is the perfect choice for businesses needing to lift goods safely, efficiently, and cost-effectively.
