Truck Dumper – Container Tipper

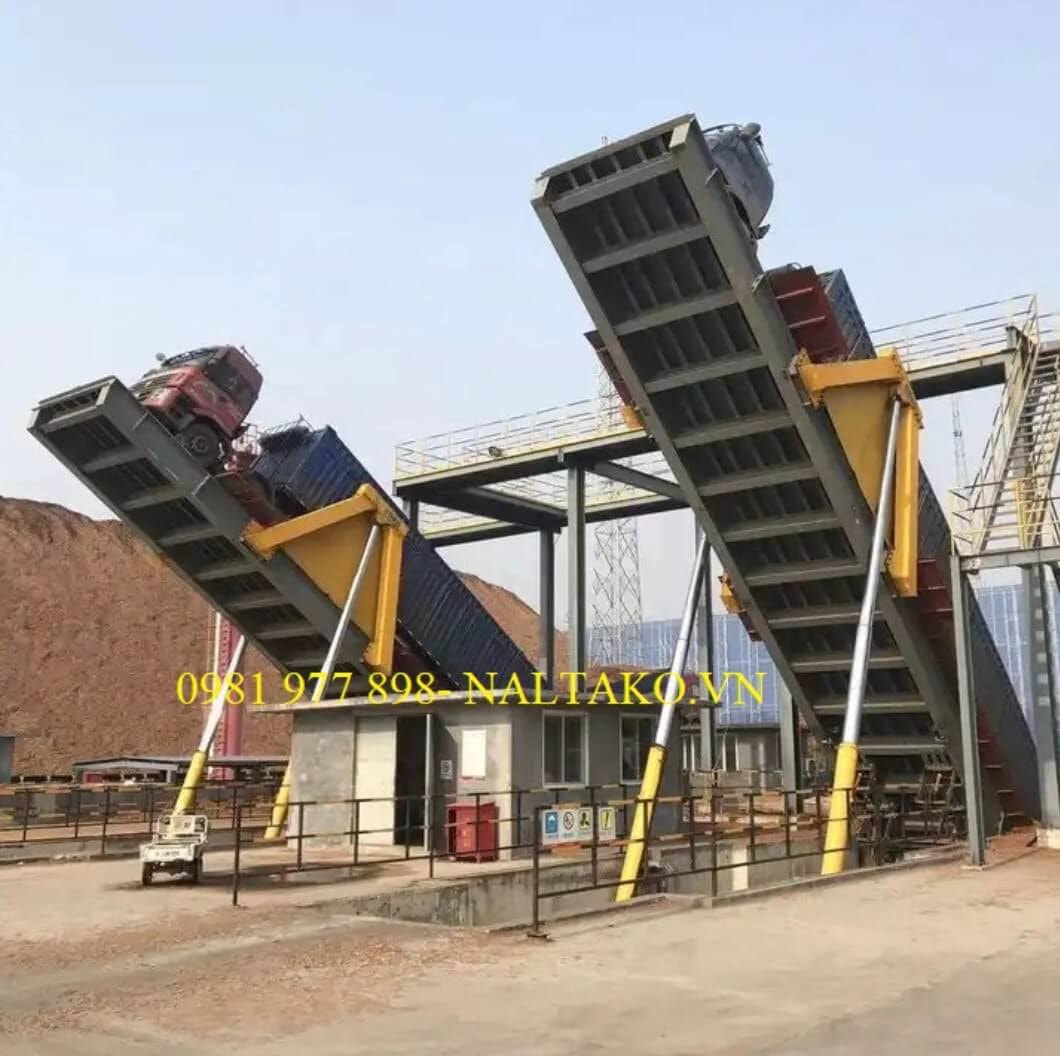

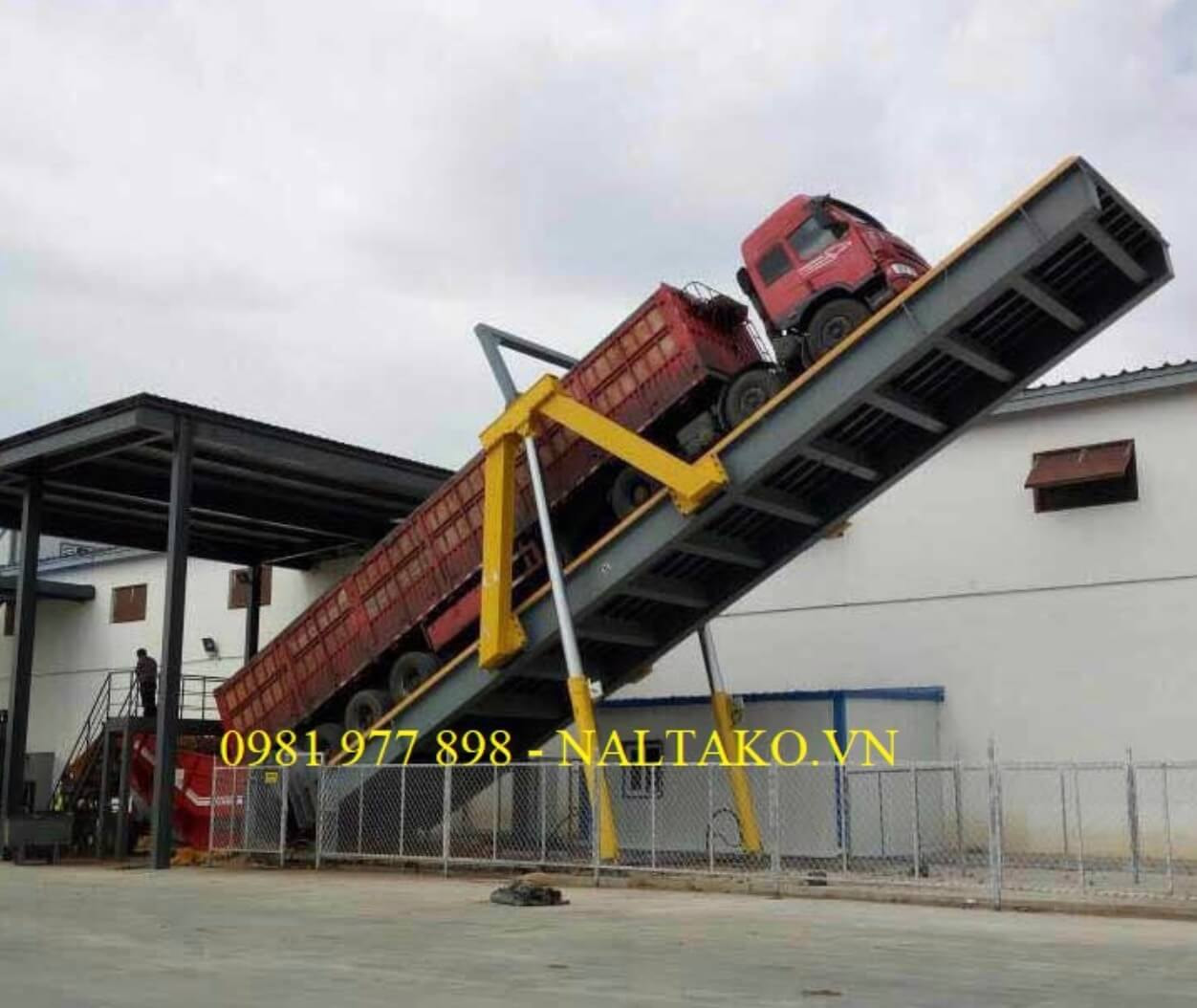

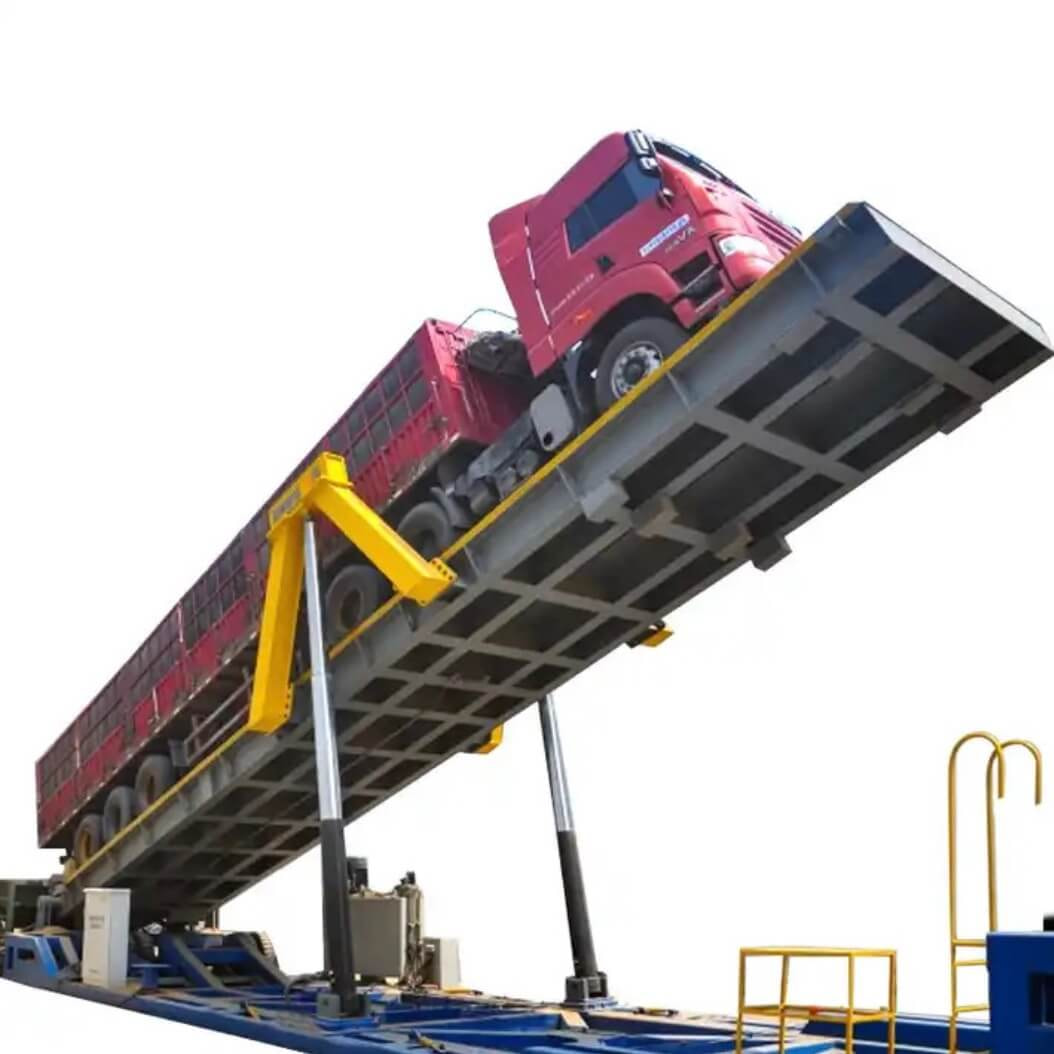

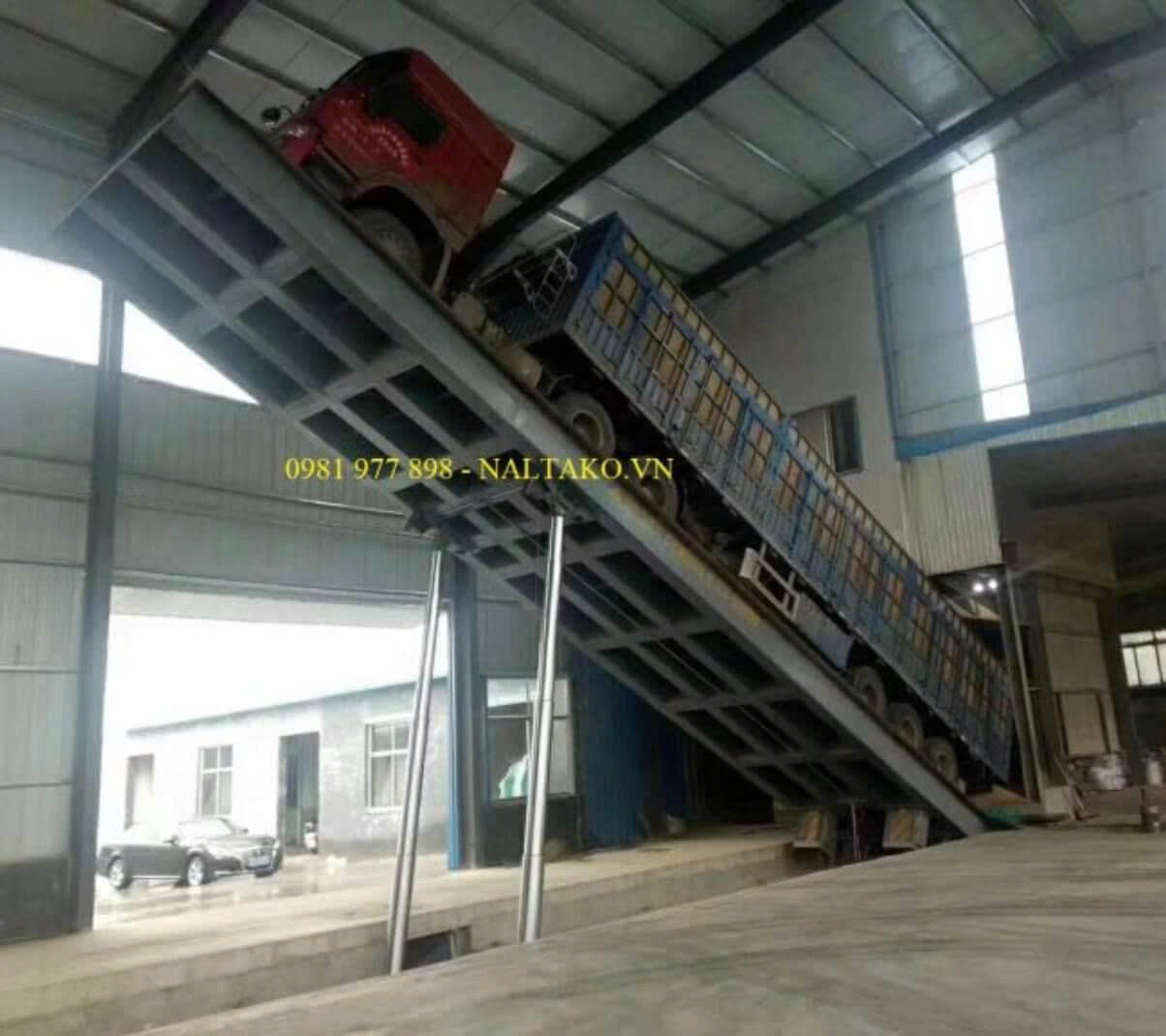

A truck dumper is a hydraulic device used to lift trucks or containers to a desired height and inclination angle. This process facilitates the discharging of materials or goods from the vehicle into a receiving hopper or a designated location.
Customers should select the appropriate lift table based on the type of goods and the dimensions of the trucks or containers. Learn more about the product to select the container tipper that best suits your needs.
What is a truck dumper?
A truck dumper, also known as a container tipper, is a device that uses a hydraulic system to lift and automatically dump materials from trucks or containers into a receiving hopper. It is commonly used in industries such as:
Construction: Construction sites, building material yards, building material manufacturing plants
Food: Flour mills, cassava flour mills, sugar cane, beer, animal feed,…
Minerals: Stone powder plants, coal processing,…
Wood: Wood factories, wood chips, wood chip export ports,…
And many other industries requiring bulk material unloading.
See more: Material feeding lift table
Outstanding features of the container dumping lift table
High lifting capacity: 150-ton dumping lift table, meeting diverse needs.
Flexible control system: Easy to operate, adjust height and tilt angle.
Sturdy design: High load-bearing steel frame, ensuring durability.
Wide application: Suitable for various types of trucks, containers, and materials.
Technical specifications of the truck dumper
Dimensions:
- Lift table dimensions: 18.5m x 3.6m
- Lift table length: 9m, 12m, 14m, 18m, 22m, 28m (optional)
Lifting capability:
- Maximum lifting angle: 40º, 47º, 52º, 55º (optional)
- Lifting/lowering speed: 8 minutes
Total design load: According to customer requirements
Actual lifting load: According to customer requirements
Hydraulic lifting system:
- Hydraulic cylinders: 02 sets EU/G7
- Working pressure: 170 Bar
Liftable vehicle types:
- Trucks, 3-axle, 4-axle, 5-axle
- Container trucks 20, 40 feet
Note:
The above technical specifications may change according to customer requirements.
Naltako provides consulting and design services for truck dumpers suitable for each customer’s needs. Additionally, you can refer to more detailed information about Naltako hydraulic truck dumpers via:
- Website: https://naltako.vn/
- Hotline: 0981.977.898
- Email: nhat.mtk53@gmail.com
- Factory address: Dong De Hamlet, Phu Yen, Chuong My, Hanoi.
