To connect a container with a forklift, you need a sturdy and reliable “bridge”. The standard 10-ton forklift ramp, 10 – 12m long, is the perfect solution for your heavy cargo handling needs.

NỘI DUNG BÀI VIẾT

Detailed specifications of standard 10-ton forklift ramp

Load capacity	10 tons
Overall length	11000/12000 mm
Overall width	2400mm
Height adjustment range	1300 to 1650mm
Slope length	~8000mm-9000mm
Platform length	~3000mm-4000mm
Maximum gradient	~7° – 10°
Number of landing gears	4
Number of wheels	4
Deck plate thickness	5mm
Anti-slip design	Ribbed steel bar/Steel grating
Included accessories	Anti-slip chain/Towing chain

Structure of the 10-ton ramp

The standard 10-ton forklift ramp, 10 – 12m long, is designed and manufactured to be sturdy, ensuring safety during use. Let’s explore the product’s structure in detail:

Load-bearing ramp frame

The body frame of the forklift ramp is made from interlaced I300/U100 shaped steel. The ramp frame creates a solid structure capable of withstanding a load of up to 10 tons.

Anti-slip ramp surface

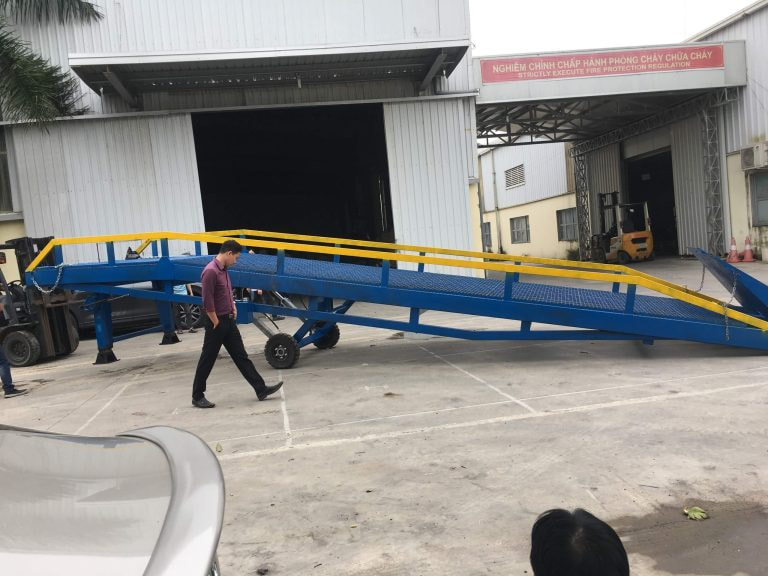

Forklift ramp surface designed with anti-slip features — The ramp surface is designed to be anti-slip

The ramp surface is designed to be anti-slip by combining 4-5mm checkered plate with ribbed steel bars or grating. This design ensures safety for the forklift when moving up/down the ramp. Thereby preventing slipping, even when the surface is wet or oily.

>>> See more: 12-ton forklift ramp

Landing gears

The standard 10-ton forklift ramp uses trailer landing gears capable of lifting from 1300mm to 1700mm. These landing gears not only increase the load-bearing capacity of the ramp but also allow for height adjustment to suit many different types of vehicles. Wheels

The ramp is equipped with rubber-coated cast iron PU wheels, helping the ramp move easily from one location to another. The wheels have high durability, good load capacity, and generate little noise when moving.

Operating principle of the standard 10-ton forklift ramp

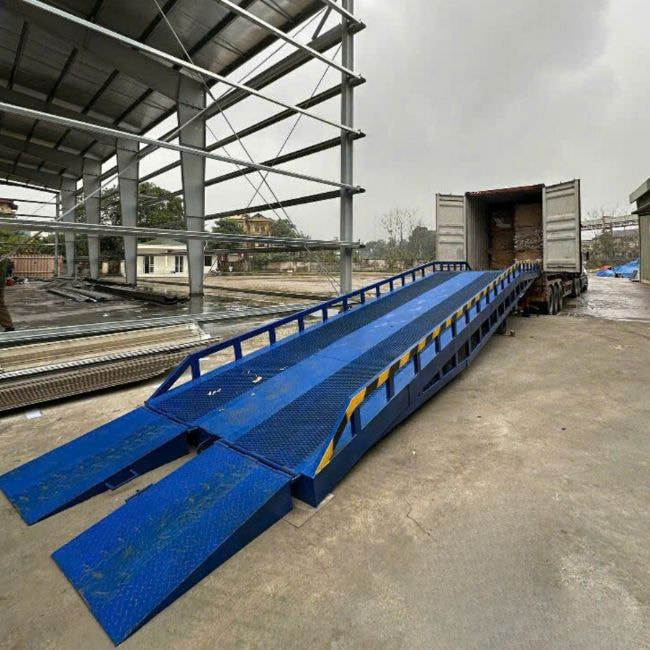

Operating principle of the forklift ramp — Operating principle of the ramp

The forklift moves the ramp to the loading/unloading position between the warehouse floor and the trailer. Ensure the contact surface between the landing gears and the ground is flat to guarantee safety.

Height adjustment: Use the hand crank to adjust the ramp’s height so the ramp edge is level with the trailer floor height.
Connect to trailer: After adjusting height, lower the lip plate to connect the ramp with the trailer floor. The lip plate acts to lock the ramp to the trailer. The lip plate ensures safety for the forklift when moving up and down.
Move the forklift: The forklift begins moving up the ramp and into the trailer to load/unload goods. Note to move slowly and steadily; do not exceed the allowed load capacity of the ramp.
Retract the ramp: After completing the loading/unloading process, the forklift moves out of the trailer. Raise the lip plate, then use the hand crank to lower the ramp. Finally, the forklift moves the ramp back to its original position.

Naltako – The address for supplying high-quality 10 – 12m long 10-ton ramps

In the current hydraulic lifting equipment market, Naltako is a familiar name trusted by everyone. With a team of experienced technicians and skillful hands creating quality products.

Naltako - reputable address for supplying forklift ramps — Naltako – reputable address for supplying ramps

Naltako’s 10-ton ramp, 10 – 12m long, is meticulously designed and manufactured. It seems the technical team has breathed life into the designs through modern products. Not only that, they also ensure ramp repair and maintenance whenever customers need it. The dedicated consulting team helps customers choose the suitable product.
