What is a mini lift table?
Mini lift tables, mini electric hydraulic lift tables, or mini hydraulic lift tables are types of stationary hydraulic lift tables with small dimensions and load capacities. Specifically:
Dimensions
The platform size has a small area, only enough to place one or a few small types of goods. The platform width and length usually range from about 400mm to 800mm. Some types of ultra-mini lift tables may have platform dimensions of only about 100mm x 100mm.
The overall dimensions of the hydraulic lift table are also quite limited. The lowered height is only from 150mm to 300mm, and the maximum lifting height usually does not exceed 1.5 meters.

Load capacity:
The lifting capacity of stationary mini lift tables (without wheels) usually ranges only from 300kg to 1000kg (1 ton). This capacity is suitable for lifting and lowering items and goods with small and medium mass such as light construction materials, tools, small equipment…

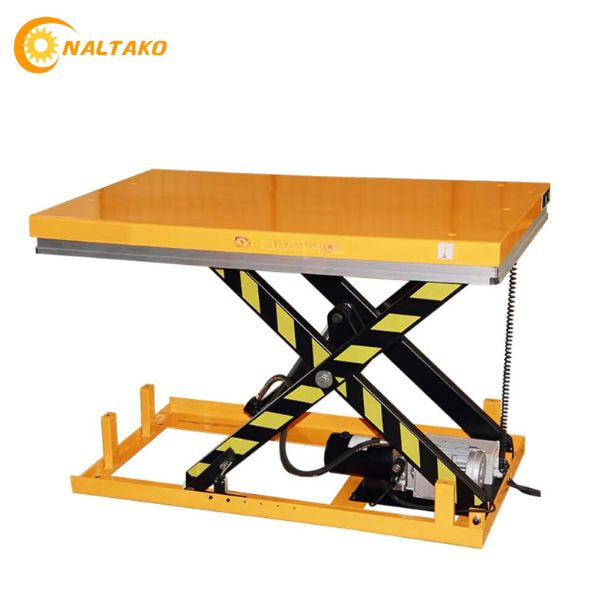

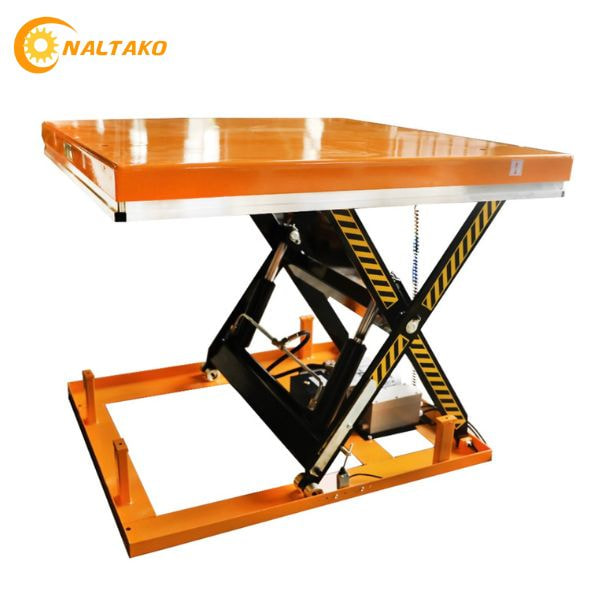

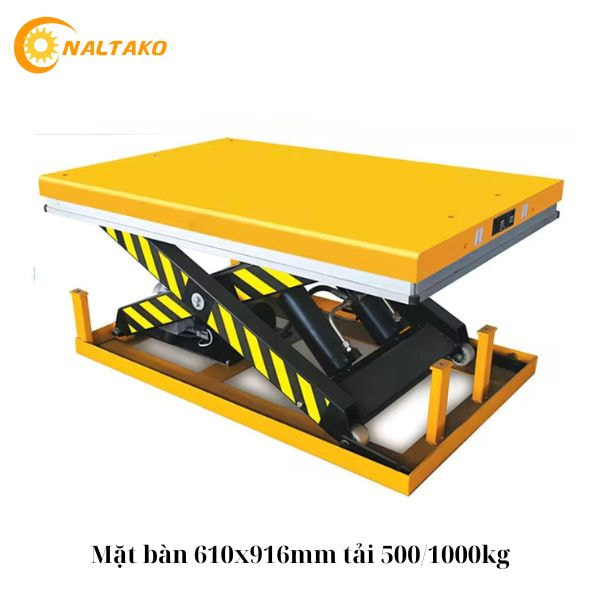

Introduction to Naltako’s 610x916mm platform mini lift table
Technical Specifications
| Load capacity (kg) | 1000 | 500 |
| Lowered height (mm) | 180 | 180 |
| Raised height (mm) | 770 | 950 |
| Platform size (mm) | 610 x 916 | 610 x 916 |
| Base frame size (mm) | 585 x 896 | 585 x 896 |
| Lifting time (seconds) | 15-20 | 17-22 |
| Power supply | 380V/50Hz, AC 1.1kw |
380V/50Hz, AC 1.1kw
|
| Weight (kg) | 115 | 160 |
Advantages
✔️ The 610x916mm platform size is quite spacious compared to standard mini lift tables. The platform allows users to lift and lower various types of goods and items of diverse sizes simultaneously, increasing labor productivity.
✔️ Naltako’s mini lift table has a lifting capacity of up to 1000kg, which is large in the mini lift table segment, meeting the diverse needs of customers.
✔️ The maximum lifting height from 770mm – 950mm is suitable for most lifting needs in warehouses, manufacturing workshops, stores… today.
✔️ Unlike the small manual hydraulic lift table type with wheels, the stationary type has a base frame designed with dimensions of 585 x 896mm, creating stability for the lift table and ensuring safety during operation.

✔️ The product is equipped with a wired handheld controller that helps users operate the lift table easily.
✔️ The mini lift table has a quick lifting/lowering time (15-22 seconds), helping to save time and effort for businesses.
Contact for consultation and quotation
If you are interested in the product, please contact us for detailed consultation and quotation. Naltako’s 610x916mm platform mini lift table is committed to good prices and high quality.
- Hotline: 0981 977 898 – 0986 868 003
- Email: nhat.mtk53@gmail.com
- Factory: Km19, National Highway 6, Phuc Tien TDP, Bien Giang, Ha Dong, Hanoi.
- Representative Office: 4th Floor, SME Hoang Gia Building, To Hieu, Ha Dong, Hanoi
