What is an electric mini hydraulic crane?

Electric mini hydraulic cranes, or electric mobile cranes, are a type of mini cargo crane that uses a hydraulic system to lift and lower heavy objects. The special feature of this crane is using electricity as an energy source, instead of human strength like manual mini hydraulic cranes.

Operating principle of mini electric crane

Lifting and lowering principle

Electric mini hydraulic cranes operate through a combination of electricity and hydraulic oil. When the switch is turned on, the electric motor generates power, transmitting it to the hydraulic pump. This pump sucks oil and pushes it at high pressure through the control valve.

High-pressure oil is sent to the hydraulic cylinders, pushing the metal rod inside outward, causing the crane boom to rise. To lower objects, the control valve changes the direction of the oil, causing the metal rod to retract and the crane boom to descend.

After completion, the oil returns to the tank for reuse.

Moving principle

Most electric mini hydraulic cranes are equipped with wheels and handles so that users can easily pull or push the crane to the desired location.

See more:

Homemade Mini Crane

Advantages of electric mini hydraulic cranes

Electric mini cargo cranes are far superior to traditional lifting methods thanks to the following advantages:

✅ No human strength required, reduces fatigue and injury, increases productivity.

✅ Compact design, simple operation, some models are self-propelled.

✅ Crane arm can rotate 360 degrees to access many lifting positions.

✅ Stable hydraulic system, integrated safety features such as overload protection valves.

✅ Diverse load capacities, flexible application in many industries.

✅ Uses quality materials, long lifespan, few breakdowns.

✅ Uses electric energy, does not cause environmental pollution.

See more:

Manual or electric hydraulic crane? Pros and cons

Where to buy reputable electric mini hand cranes?

Naltako is a unit specializing in designing, manufacturing, and distributing electric mini hydraulic cranes with guaranteed quality and competitive prices. Naltako’s products are diverse in design, load capacity, and lifting height, meeting the needs of many different industries.

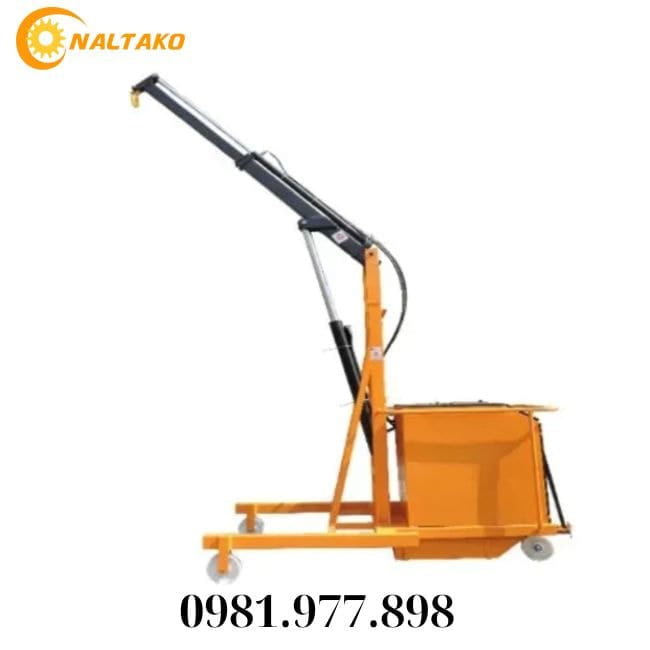

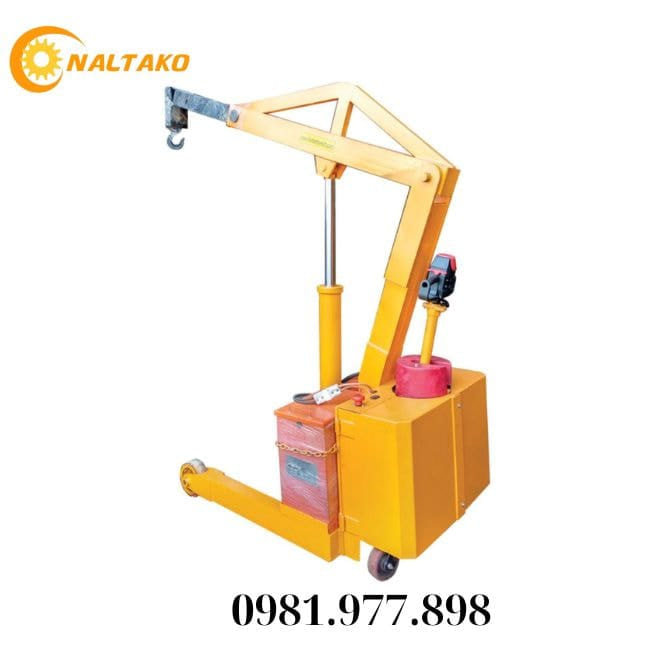

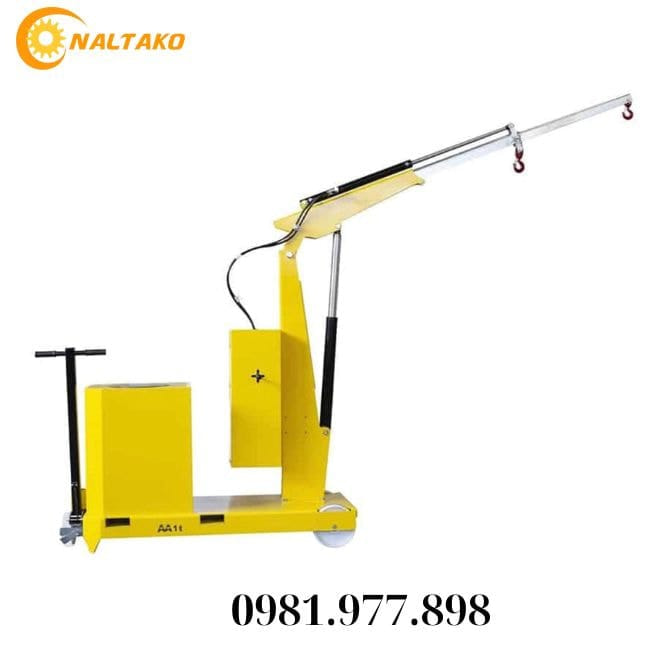

Naltako's mini electric crane — Naltako’s mini electric crane

Advantages when buying electric mini cranes at Naltako:

High-quality electric mini cargo cranes, strictly inspected.
Experienced technical team, dedicated advice, installation support, and thoughtful warranty.
Competitive prices, many attractive offers.
Fast delivery, on-site nationwide.

Contact Naltako immediately for advice and detailed quotes:

Website: https://naltako.vn/
Hotline: 0981.977.898
Email: nhat.mtk53@gmail.com
Factory address: Dong De Village, Phu Yen, Chuong My, Hanoi.

Reference specifications of electric 360 rotating crane

Parameter	Value
Lifting capacity	100kg – 2000kg
Lifting height	1 – 1.5 meters; 2.5 – 3 meters; 2.5 – 3 meters (optional)
Power source	12V – 48V (depending on lifting load)
Motor power	0.37 – 3 kW (depending on lifting load)
Dimensions (Length x Width x Height)	1 x 0.5 x 1 meters; 1.5 x 0.8 x 1.2; 2 x 1 x 1.5 meters
Weight	Optional
Lifting/lowering speed	2 – 4 meters/minute
Material	Stainless steel, aluminum alloy
Safety features	Overload protection valve, automatic lock (optional)
Accessories (optional)	Cable, crane hook, remote control (optional)
