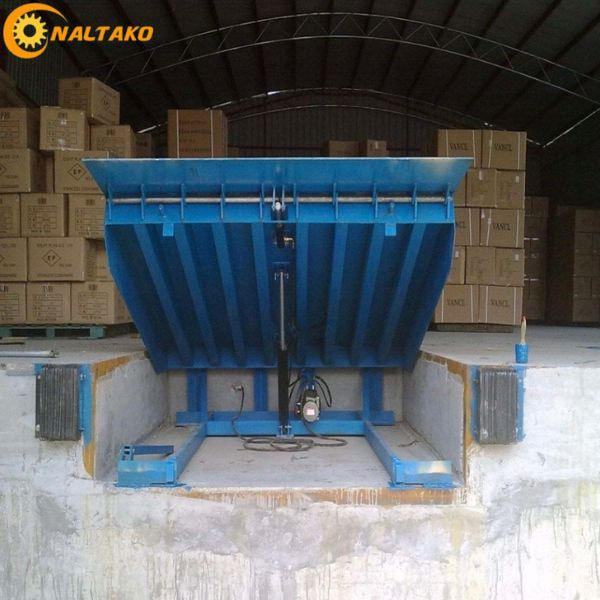

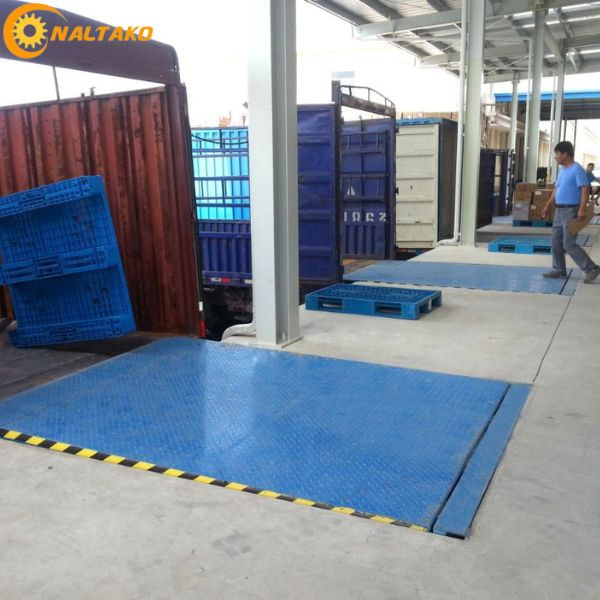

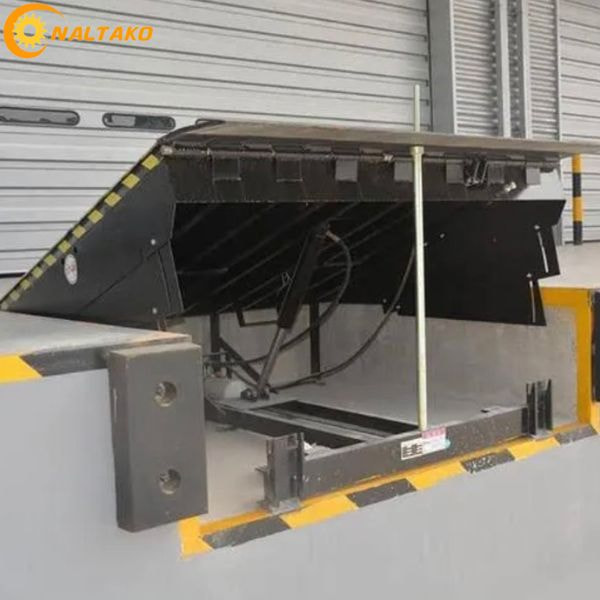

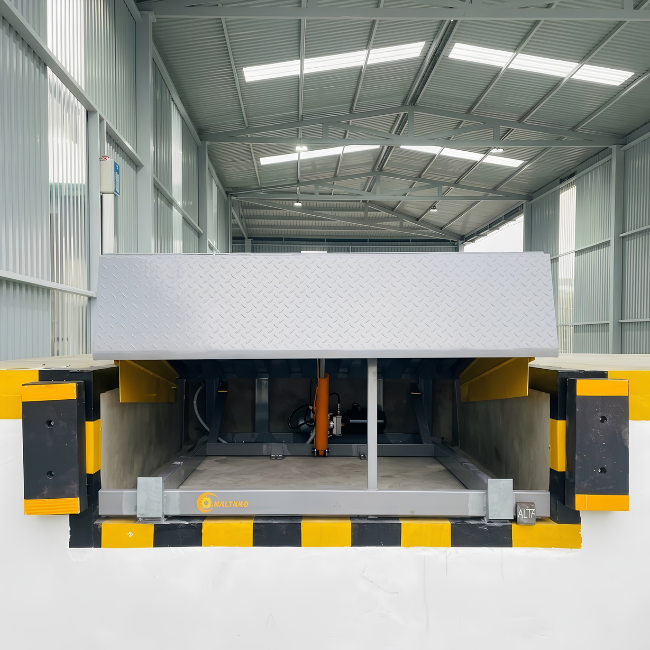

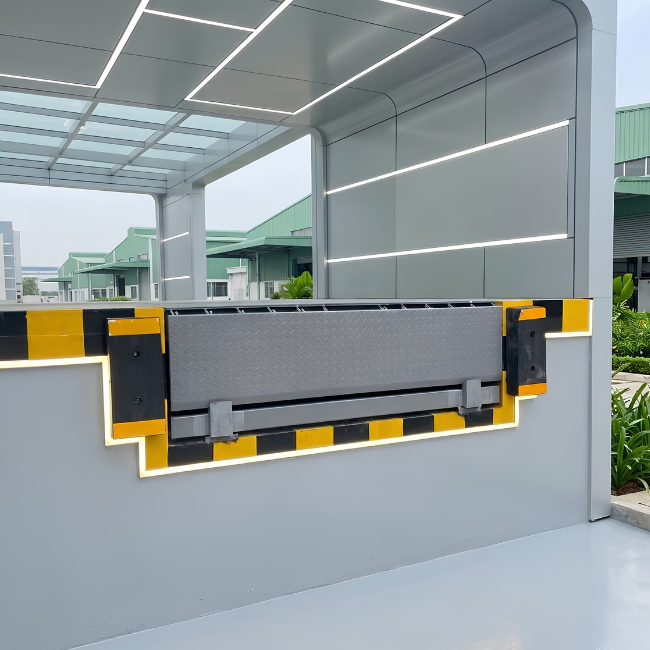

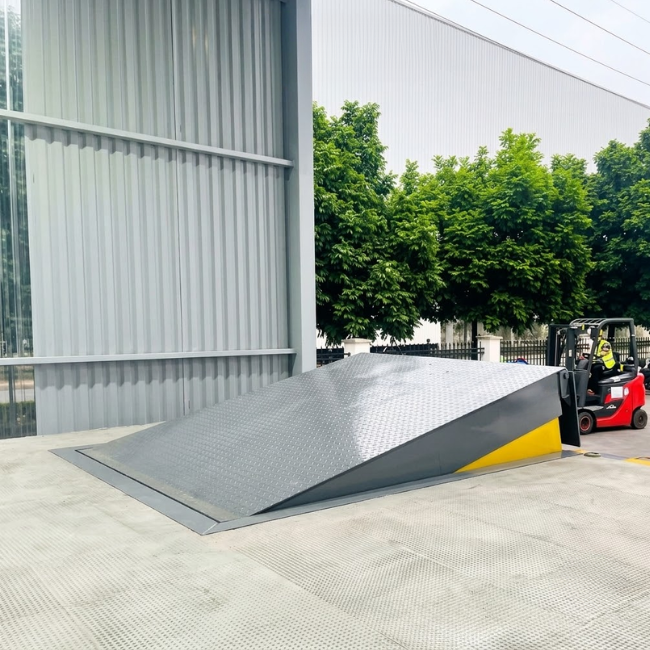

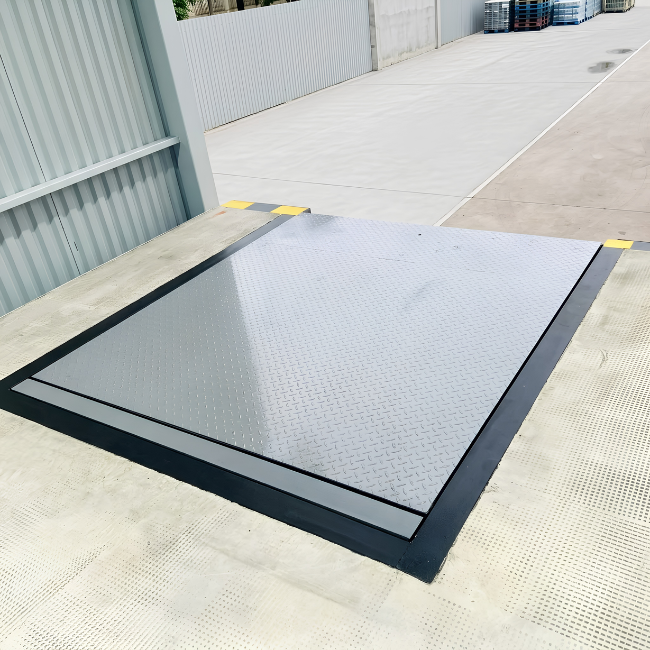

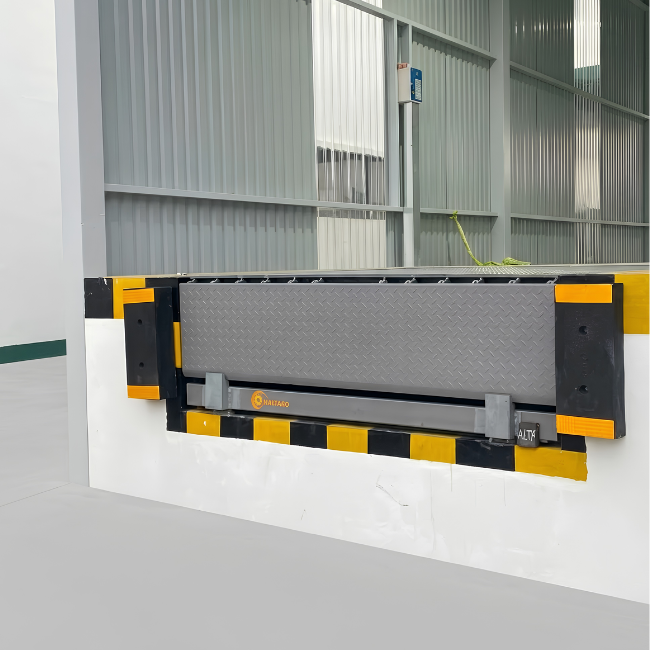

Overview of Dock Leveler with 2x2m Deck, 6000kg Capacity

The Dock Leveler has a deck size of 2mx2m. This is a common size, meeting the cargo lifting and lowering needs of most small and medium-sized enterprises. This size allows forklifts to move and load/unload goods easily on the deck.

The deck is made of checkered plate or ribbed steel plate according to customer requirements to increase friction and prevent slipping for forklifts and goods.

The dock leveler is capable of lifting and lowering goods with a total weight of up to 6 tons, meeting heavy cargo handling needs.

Additionally, Naltako’s products are made from high-durability steel with good load-bearing capacity and resistance to deformation, ensuring safety during operation. The equipment is equipped with safety devices such as overload valves and hydraulic safety valves, helping to limit accidents during operation.

The Dock Leveler with 2x2m deck and 6000kg capacity is widely used in warehouses, factories, supermarkets, logistics centers, etc., to lift and lower goods between floors and load/unload goods from trucks to the warehouse floor.

Detailed Technical Specifications

Technical Specifications	Value
Brand	Naltako
Origin	Vietnam
Type	Non-standard Hydraulic Dock Leveler
Deck Dimensions	2000×2000 mm
Max Lifting Capacity	6000kg
Lifting/Lowering Height	300-700 mm
Overall Dimensions	2000x2040x600mm (length x width x height when lowered)
Lifting Stroke	400mm (700-300 mm)
Motor Power	3kW
Voltage	380V/3 phase/50Hz
Lifting Speed	30 seconds
Lowering Speed	20 seconds
Deck Thickness	8mm
Deck Material	Ribbed steel plate
Number of Hydraulic Cylinders	2 cylinders
Cylinder Diameter	100mm
Working Pressure	20MPa
Dock Leveler Self-weight	1500 kg
Hydraulic Pump	Hydraulic gear pump
Hydraulic Valve	Solenoid valve
Control System	Up – down buttons, remote control integration available
Safety Devices	Overload valve, hydraulic safety valve, emergency stop button
Warranty	12 months

Where to buy Dock Leveler with 2x2m Deck, 6000kg Capacity?

You are looking to buy a Dock Leveler with a 2x2m deck and 6000kg capacity, and Naltako is a suitable choice for your needs.

We are a Vietnamese brand, so our products meet the climatic and environmental conditions of Vietnam well.

Additionally, due to domestic production, Naltako can provide products at more competitive prices compared to foreign brands. Especially, customers can adjust dimensions, load capacity, and other specifications according to their requirements.
