Construction Material Dumping Lift Table

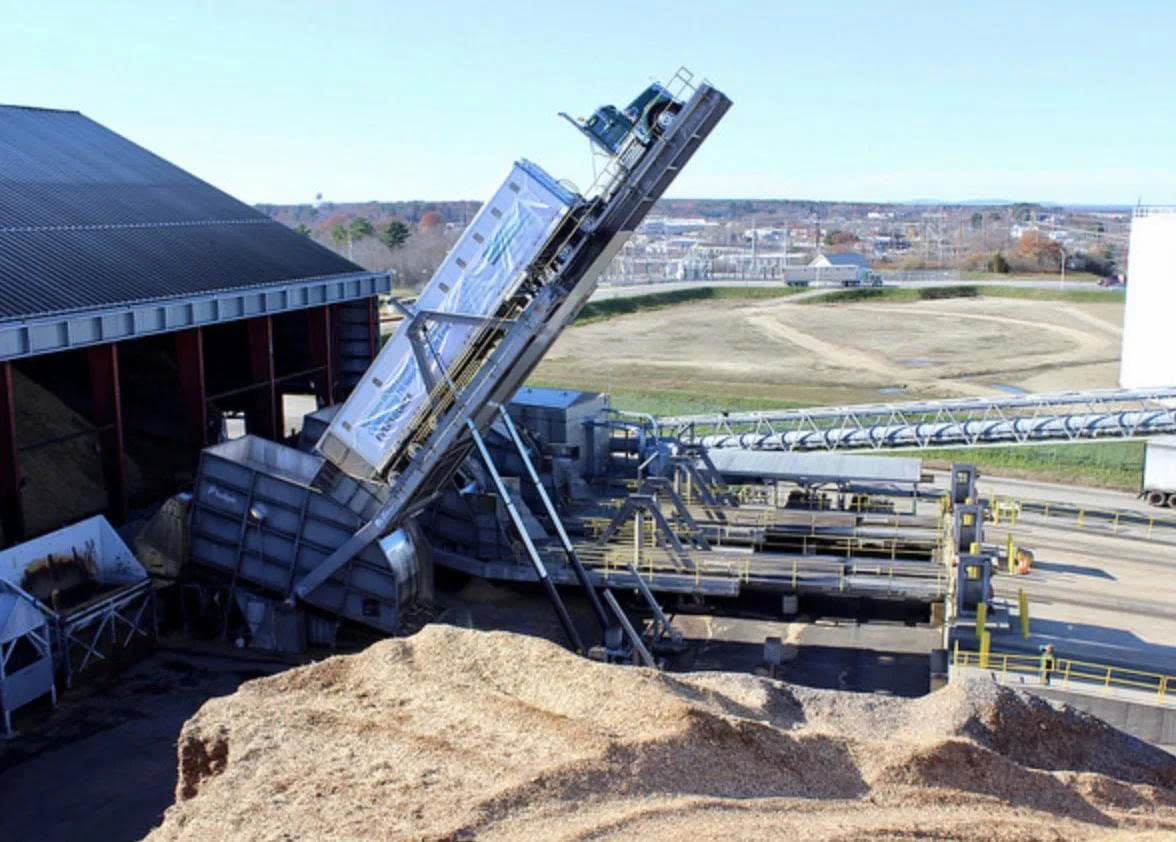

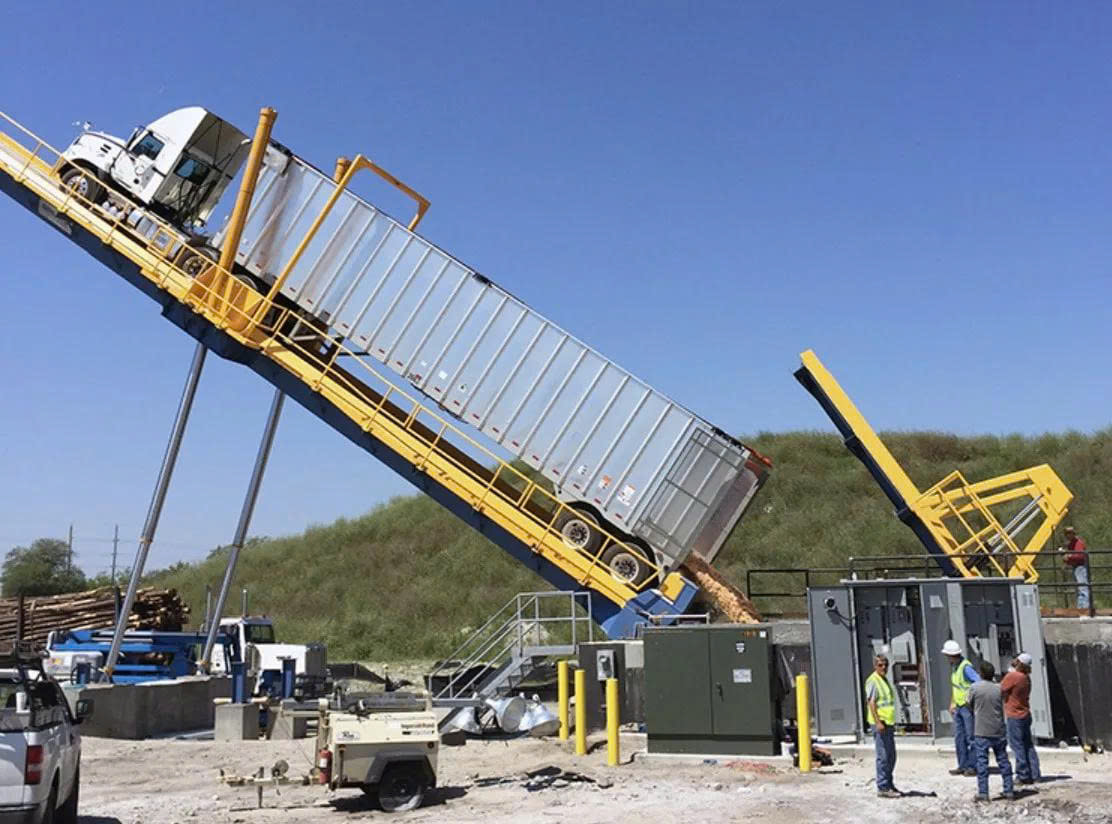

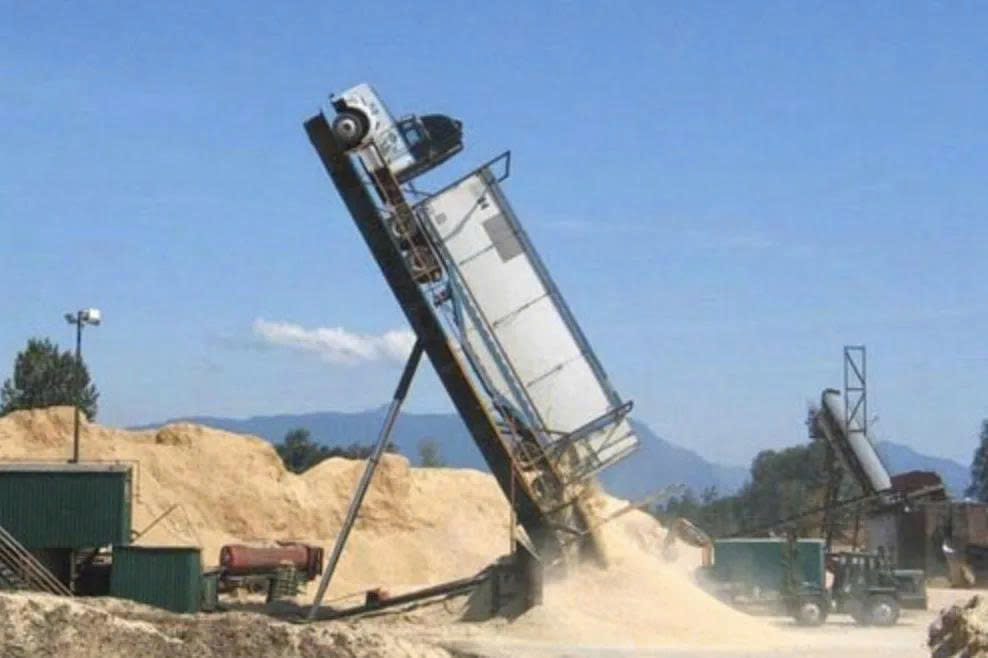

A construction material dumping lift table is a piece of specialized industrial equipment designed to lift and tilt trucks or containers holding loose construction materials such as sand, stone, gravel, cement, bricks, etc.
Under the influence of gravity, the materials inside the vehicle automatically slide down to a designated location, such as a conveyor belt, storage hopper, or material gathering area.
Common types of construction material dumping lift tables
Fixed
Fixed construction material dumping lift tables are installed permanently at a single location, typically at concrete batching plants, construction material yards, or large construction sites.
The equipment features a sturdy structure, withstands heavy loads, and usually has a higher lifting capacity compared to the mobile type.
Truck dumping lift tables are used to dump materials from trucks into conveyor systems, hoppers, or other equipment in the production line.
Mobile
Mobile construction material dumping lift tables are equipped with wheels, allowing them to move to different locations within the workspace. The equipment is suitable for small-scale construction sites or material production businesses like concrete, cement, sand, and gravel that need to unload materials at various locations.
Reference specifications for construction material truck dumping lift tables
| Technical Specifications | Reference Value |
| Brand | Naltako |
| Place of Origin | Vietnam |
| Type | Fixed |
| Lift table dimensions | 20m (length) x 4m (width) |
| Max lifting angle | 45 degrees |
| Lifting speed | ~5 minutes |
| Lowering speed | ~5 minutes |
| Total design lifting capacity | 120 tons |
| Actual lifting capacity | 150 tons |
| Hydraulic cylinders | 04 sets |
| Hydraulic power station | |
| – Oil capacity | 1200L |
| – Motor power | 22KW |
| – Pump flow rate | 63 L/min |
| Working pressure | 180 Bar |
| Material |
High-strength steel processed in Vietnam
|
| Control system |
Control panel with buttons/levers, integrated safety system (overload sensor, safety valve, etc.)
|
| Safety features |
Hydraulic safety valve, mechanical lock against table drop, alarm siren during operation, safety fence around the operating area
|
Applications
In construction sites:
Dumping loose construction materials such as sand, stone, gravel, and cement from trucks to construction spots, gathering areas, or conveyor systems.
Dumping materials directly into concrete mixers, screening machines, or other equipment during the construction process.
Lifting materials to a certain height for convenient transport or use, especially in projects with uneven terrain.
In manufacturing plants:
Supplying materials (sand, stone, cement) to concrete mixers continuously and effectively, ensuring production productivity.
Dumping raw materials (clay, limestone, additives) into crushers, mixers, or other equipment in the brick production line.
The lift table can be used to handle and transport other materials such as lime, gypsum, wall putty, etc.
In construction material yards:
Dumping materials from trucks into warehouses or storage areas.
Lifting and tilting to dump materials into different storage areas according to type or size.
Mobile construction material dumping lift tables can be used to transport materials between areas in the warehouse flexibly.
In seaports and river ports:
Dumping construction materials from ships to trucks or vice versa, serving material import and export.
