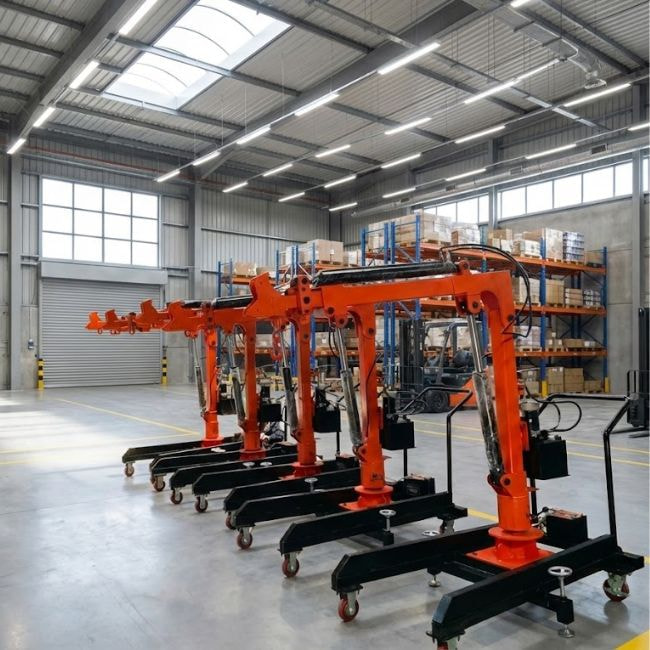

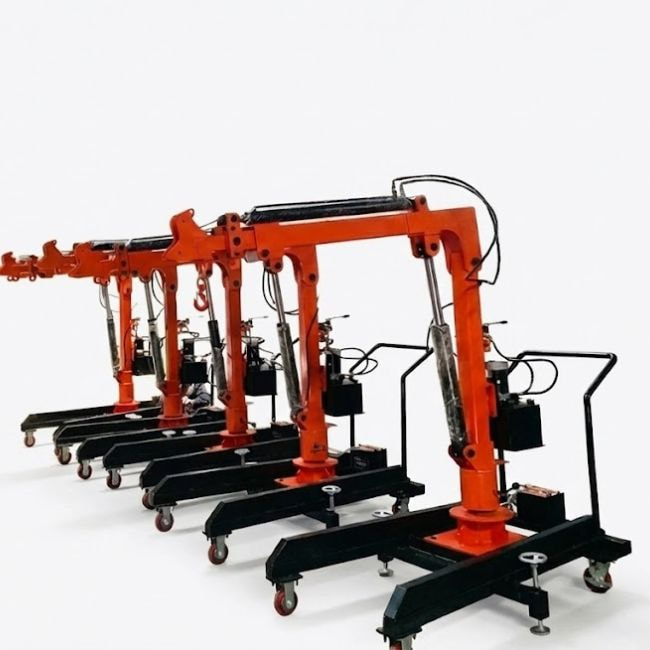

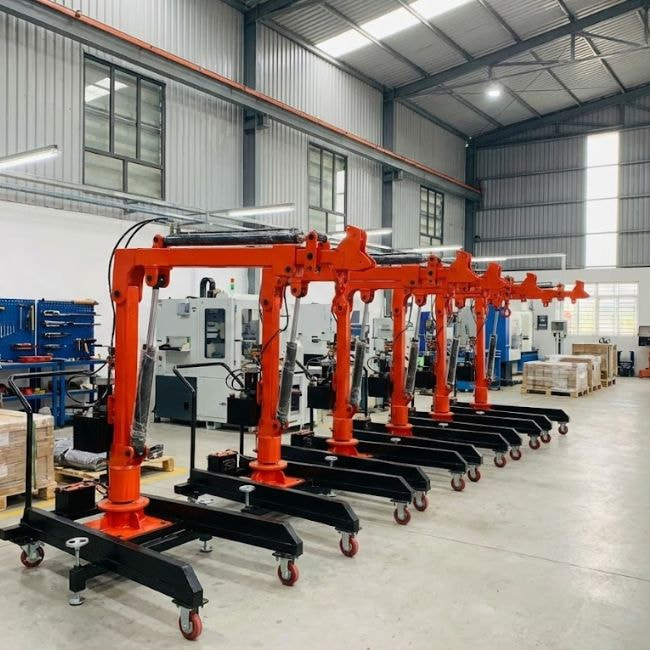

500kg Mobile Mini Crane

Product Details

“Deep reach” capability with 3-section crane arm design

The weakness of ordinary manual cranes is limited reach. However, this version of the 500kg mobile mini crane has completely overcome that drawback thanks to its unique 3-section crane arm design.

The combination of 1 fixed section, 1 section pushed by hydraulic cylinder, and 1 manually extended section allows the boom to reach a maximum of 2.75 meters. This is extremely useful when you need to insert the mini crane hook deep into a car engine compartment or retrieve molds lying deep on shelves without the body having to move too close. When heavy lifting is needed, you just need to retract the boom to 1.26 meters to achieve the maximum load of 500kg.

Easy electrical operation

Instead of having to use human strength to pump the handle like classic engine cranes, this 500kg mobile mini crane is equipped with a powerful electric hydraulic system.

With a 0.8kw – 12V hydraulic source powered by a 12V/80Ah battery, lifting becomes effortless with just the push of a button. This system not only saves labor but also ensures smoothness, avoiding jerks that could damage expensive machine details or molds.

Optimized design for narrow spaces

One of the reasons why the 500kg mobile mini crane is a best-seller at Naltako is its compactness. With a wheel leg width of only 850mm, this device easily maneuvers through narrow aisles between production lines.

The durable Ø150 Nylon wheel system helps the vehicle move smoothly without scratching the Epoxy floor paint. In particular, the manual 180-degree boom rotation feature helps the worker flexibly change the lifting direction without steering the entire vehicle.

Technical Specifications Summary

For your convenient comparison, below is the detailed configuration of the 500kg mobile mini crane:

• Load/Height: Max lifting 500kg. Peak lifting height reaches 3.5 meters (at 150kg load).
• Dimensions: Length 1.76m (when not folded), base length 1.55m creating a solid center of gravity.
• Voltage: Uses a convenient 12V/8A charger for civil power sources.
• Safety: Wheels have brakes to fix the position during hoisting.

Where to buy reputable mobile mini cranes?

If you need lifting equipment that is strong, flexible, and operates durably at high intensity, then the 500kg mobile mini crane at Hanoi Hydraulics (Naltako) is the most economical choice. We don’t just sell products; we provide safe lifting solutions with long-term warranty for electrical and hydraulic systems.

Don’t let work stagnate due to a lack of support equipment. Contact Naltako immediately to receive a detailed quote for this 500kg mobile mini crane model!
