200kg Mobile Crane Product Specifications

To evaluate the efficiency of the equipment, first we need to understand the basic technical specifications. Below is the detailed specification table of the 200kg mobile crane (Model NTKMC200kg) provided by us:

Parameter Name	Value / Feature
General Specifications
Product Code	NTKMC200kg
Max Lifting Capacity	200 Kg
Folded Dimensions (Length x Width x Height)	1300 mm x 850 mm x 1750 mm
Max Reach Length (at 130kg load)	1270 mm
Max Lifting Height (at 130kg load)	2850 mm
Rotation Angle	Manual 360° rotation
Wheel Type	PU-Ø150 Wheels (Steering wheels with lock, fixed load wheels)
Movement Method	Manual Push
Electro-Hydraulic System
Hydraulic Power	0,8 kw – 12v
Battery	12V/80Ah
Charger	12V/8A

The specification table above shows that the 200kg mobile crane possesses an impressive lifting height of nearly 3 meters and flexible reach capability, meeting most basic lifting needs in factories.

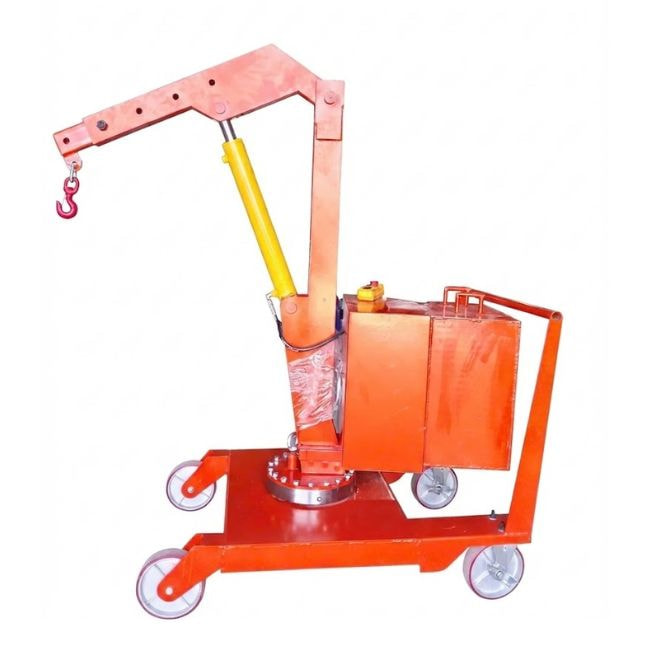

Detailed Product Structure

The superiority of the 200kg mobile crane comes from its smart design and sturdy structure, clearly demonstrated through actual images at the workshop. The main structure of the mini crane includes:

Frame and Base

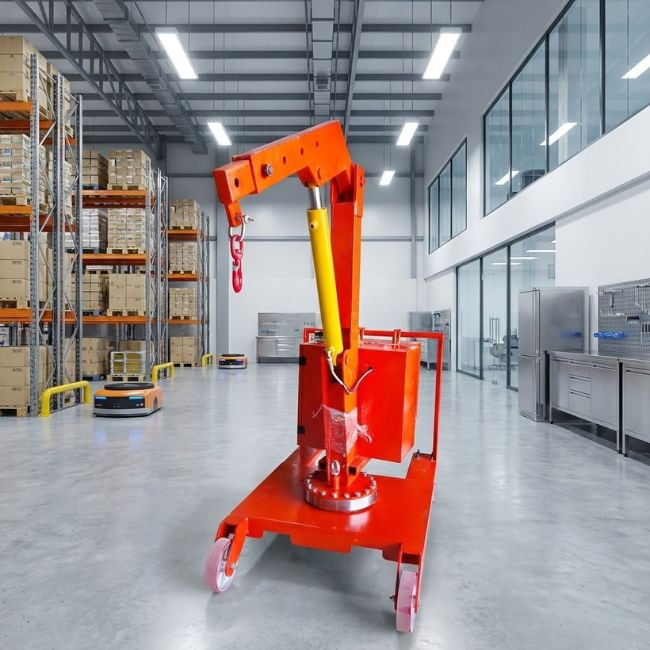

The 200kg mobile crane helps create a solid counterweight when lifting goods

Manufactured from high-grade load-bearing steel, painted with electrostatic paint to prevent rust and increase durability in industrial environments. The wide base with 4 wheels helps create a solid counterweight when lifting goods.

Lifting Boom System (Jib boom)

Designed as a reaching boom with adjustable range. A special feature is the powerful yellow hydraulic cylinder system acting as the main lifting mechanism, making lifting the 200kg load gentle and smooth. The boom tip is equipped with a sturdy crane hook with a safety latch.

Movement and Rotation System

The equipment uses PU (Polyurethane) wheels with a diameter of 150mm, allowing smooth movement without damaging the factory floor and bearing good loads. In particular, the central rotation assembly allows the crane to rotate 360 degrees manually, making picking up and placing goods extremely flexible at difficult angles.

Integrated Electro-Hydraulic System

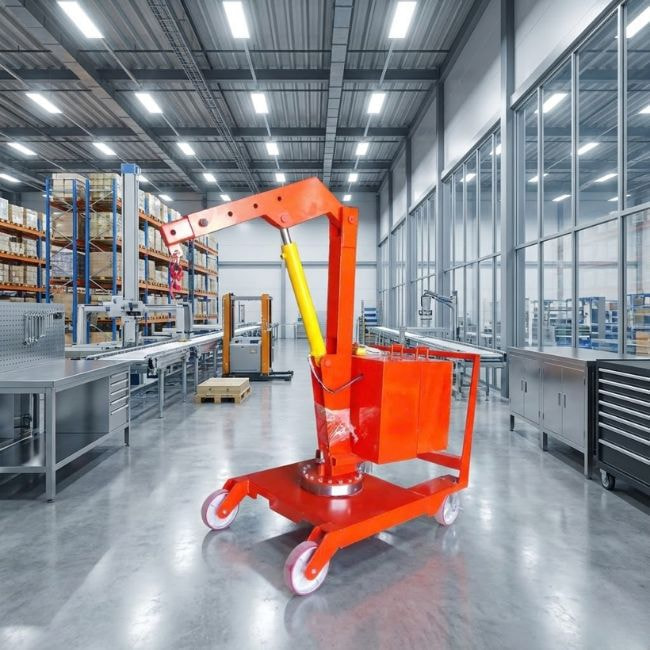

Mini crane has integrated electric and hydraulic systems

Behind the crane body is a technical box containing the hydraulic power system, 12V/80Ah battery, and integrated charger. Using electric energy from the battery helps the 200kg mobile crane operate independently, not depending on the grid power, and generating no emissions when operating indoors.

Thanks to this optimal structure, equipping a 200kg mobile crane is a smart investment to modernize your workflow.
