Outstanding Features of Naltako 200kg Mini Crane
Naltako’s 200kg mini crane possesses superior features, meeting all your lifting needs:
Max lifting capacity 200kg:
- Meets diverse material lifting needs in industries, construction, warehousing, etc.

Flexible 360-degree rotation:
- 360-degree rotating mast, allowing the mini crane to work at any angle.
- Freely rotate or lock at 8 different positions, ensuring flexibility and control during operation.
- Two handles support easy and smooth boom rotation.
Max lifting height 2850mm:
- Access materials at flexible heights, meeting diverse working needs.
Boom length extends to 1270mm:
- Increase working range with jib extension (an extension part attached to the main boom to increase boom length), helping access materials at greater distances.
Easy electric operation:
- Lift and move smoothly, effortlessly, helping minimize operator fatigue.
- Two control buttons on the handle make lifting operations easy.
- Emergency stop button ensures safety in all situations.
Compact, flexible design:
- Width only 800mm, easy to move and operate in narrow spaces.
- Two large swivel wheels and two fixed front wheels help move and position easily.
- Powder-coated steel chassis, sturdy and durable.
Safe hydraulic system:
- Check valve prevents load dropping in case of hydraulic hose rupture.
- Pressure relief valve prevents overload, protecting the crane and ensuring operator safety.
Integrated battery charger:
- Compatible with various battery types (lead-acid, AGM, gel).
- Charge level indicator helps control the charging process easily.

Safe swivel hook:
- Equipped with safety latch, ensuring load is securely fixed during lifting.
Sturdy push handle:
- Helps move the crane easily and safely.
- Detachable when not in use.
No installation permit required:
- Save time and costs for installation and operation.
With these superior features, the 200kg hydraulic mini crane will be a powerful assistant, helping you improve work efficiency and ensure absolute safety in all lifting activities.
Specifications of electric 200kg mini crane
| Specifications | Value |
| Max lifting capacity | 200kg |
| Max lifting height | 2850mm |
| Boom length (max with jib extension) | 1270mm |
| Rotation angle |
360° (free or fixed at 8 positions)
|
| Width | 800mm |
| Power source | 12V 80A Battery |
| Battery charger |
Integrated, compatible with multiple battery types
|
| Control |
Buttons on handle
|
| Hydraulic system |
Check valve, pressure relief valve
|
| Wheels |
2 swivel wheels, 2 fixed wheels
|
| Frame material |
Powder-coated steel
|
| Crane hook |
Swivel, with safety latch
|
| Push handle | Detachable |
| Origin | Vietnam |
| Brand | Naltako |
| Warranty |
2 years
|
Note:
- Specifications may change depending on product version.
- Jib extension is optional, not included with the main product.
For more detailed information and to receive a quote, please contact Naltako’s authorized distributor in Vietnam.
See more:

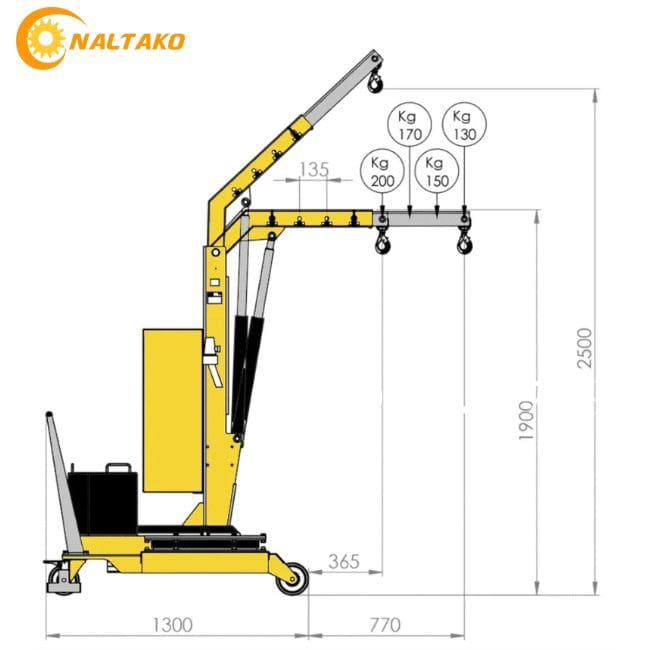

Technical Drawing

Applications of 200kg electric mini hydraulic crane
The electric 200kg mini crane is a versatile lifting solution, suitable for many industries:
- Industry: Lifting materials, components, supporting assembly, maintenance.
- Construction: Lifting construction materials, supporting equipment installation.
- Warehousing: Loading/unloading, arranging goods, moving pallets.
- Auto Garage: Lifting engines, heavy parts during repair.
- Other applications: Lifting heavy objects in homes, offices, supporting artistic activities.
With compact design, easy movement, and simple operation, Naltako’s 200kg electric hydraulic mini crane is the optimal choice for limited spaces, helping save time and effort while ensuring safety during work.
