200kg Jib Crane with Vacuum Lifter
In metalworking factories, particularly in laser cutting or press brake areas, transporting large-format metal sheets always poses a significant challenge regarding manpower and safety. The 200kg Jib Crane with Vacuum Lifter is the modern technological solution designed to comprehensively address this issue. Not only does it boost productivity, but this equipment also ensures absolute safety for both the material surface and the operator.
If your business is seeking a flexible, compact, yet powerful lifting device, let’s explore the details of the 200kg Jib Crane with Vacuum Lifter in the article below.
Product details: 200kg Jib Crane with Vacuum Lifter

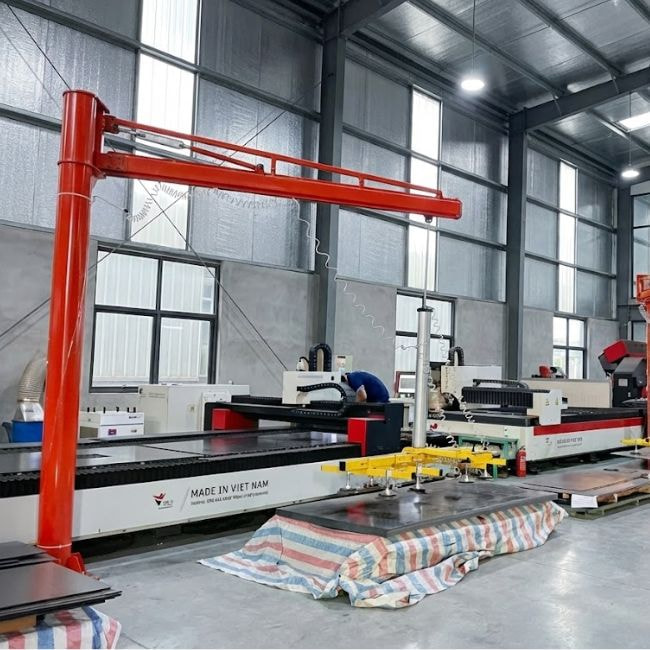

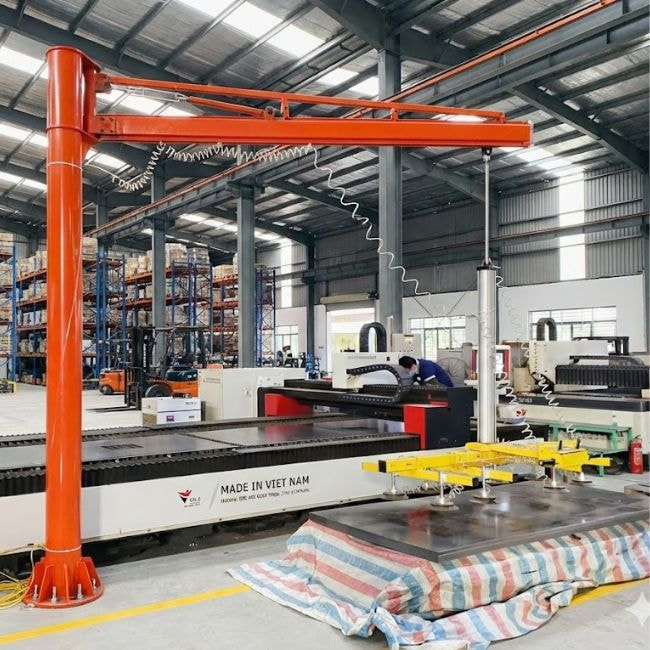

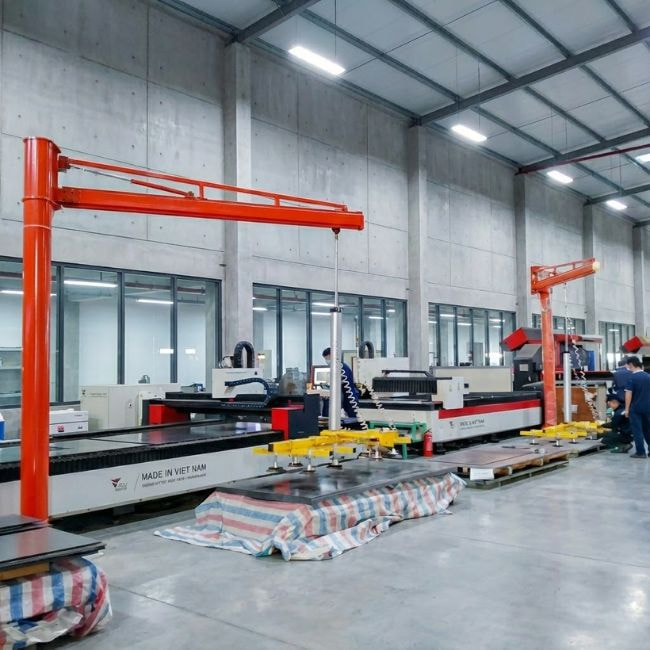

The 200kg jib crane with vacuum lifter features a sturdy structure with a striking industrial orange color tone. The equipment consists of a rotating pillar fixed to the factory floor using high-strength chemical anchor bolts, ensuring absolute stability during operation. The jib arm rotates flexibly, allowing machine operators to easily move workpieces from pallets to the CNC cutting table without physical exertion.
The most special feature of this mini crane system is the perfect combination of a pneumatic lifting mechanism and vacuum technology. The 200kg jib crane with vacuum lifter uses soft suction cups (pads) to grip tightly onto the surface of sheet metal/stainless steel/steel. This helps to completely eliminate hairline scratches often seen when using traditional hooks or iron chains, preserving the aesthetic quality of the finished product.
Product Specifications
To help customers understand the operating capabilities, below is the detailed technical specification table of model NTK – CXCK Q200 (Standard 200kg jib crane with vacuum lifter series):
- Product Name: 200kg Jib Crane with Vacuum Lifter – NTK – CXCK Q200.
- Max load: 200 Kg.
- Lifting height: 1100mm (cylinder stroke).
- Pillar height: 3400mm (suitable for most standard factories in Vietnam).
- Turning radius: 3000mm (Covering a working area up to 6m in diameter).
- Vacuum generation system: Uses 6 – 8 vacuum suction cups (customizable according to sheet size).
- Suction cup diameter: 200mm.
- Pneumatic lifting cylinder: 125mm diameter, ensuring strong and smooth lifting power.
- Transport and Installation: On-site installation support (Example: Dong Anh, Hanoi, and neighboring provinces).
With a turning radius specification of up to 3 meters, a set of 200kg jib crane with vacuum lifter can serve 2 laser cutting machines simultaneously or handle both material feeding and product offloading, optimizing factory space.
Naltako – Reputable provider of jib cranes with vacuum lifters
Currently, there are many units providing lifting equipment on the market, but finding a unit that designs, manufactures, and installs the full package like Naltako is not easy. With many years of experience in the field of hydraulics and lifting equipment, Naltako proudly brings the 200kg jib crane with vacuum lifter product with the highest quality and competitive pricing (reference price approx. 65,000,000 VND/set depending on configuration).
Why choose the 200kg jib crane with vacuum lifter at Naltako?
- Optimal Design: Carefully calculated for load-bearing capacity, ensuring absolute safety.
- Genuine Components: Cylinder, vacuum pump, and suction cups are all high-quality items with long durability.
- Professional Service: From site survey, drawing design to installation and technology transfer.
If you need consultation on installing a 200kg jib crane with vacuum lifter for your factory, do not hesitate to contact Hanoi Hydraulic/Naltako immediately for the best price quote support today.
