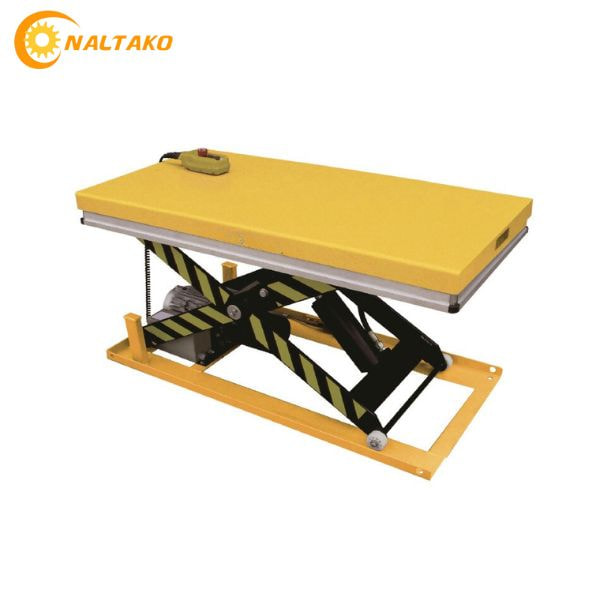

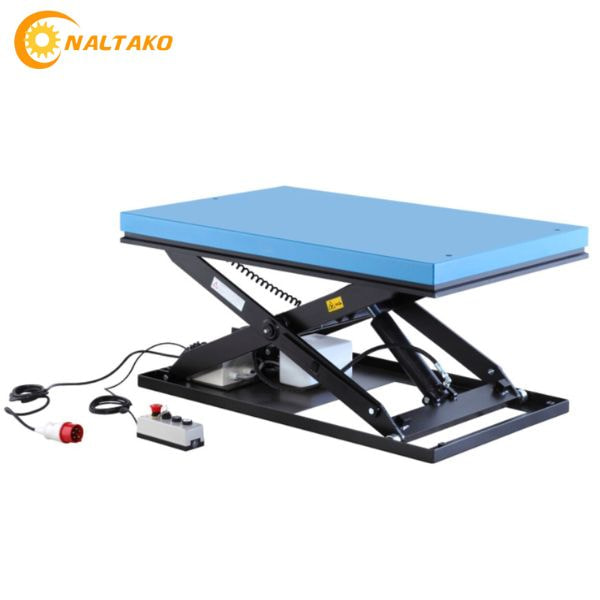

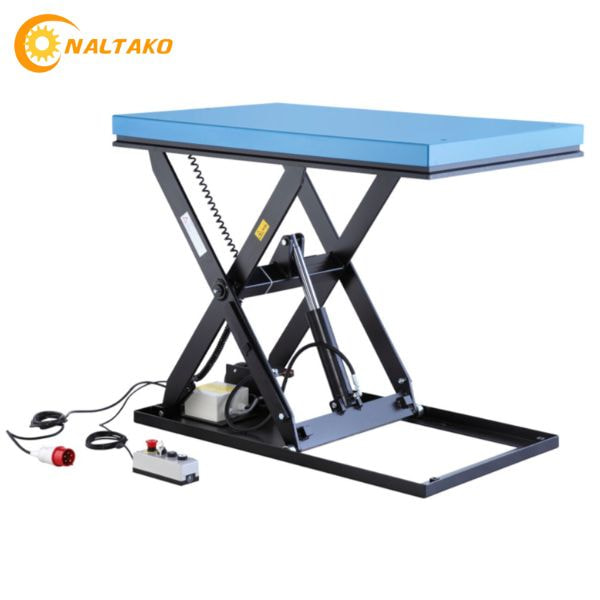

1300x800mm Platform Lift Table
Naltako’s 1300x800mm platform lift table features optional load capacities ranging from 500kg to 3000kg, catering to diverse lifting requirements. It offers a flexible lifting height from 190mm to 1010mm, with rapid lifting speeds (up to 55mm/s) and stable lowering capabilities.
Equipped with a powerful 1.1kW–1.5kW motor and a working pressure of 12–18MPa, the unit ensures durable and safe operation. Manufactured in Vietnam to high-quality standards, this product is ideal for factories and warehouses.
Introduction to the 1300x800mm platform lift table
The 1300x800mm platform lift table is a standard hydraulic lift table at Naltako. The 1300x800mm platform size was developed by engineers to meet the needs of lifting diverse types of goods while remaining compact, facilitating easy use in factories and warehouses with limited space.
This size is wide enough to lift and lower many types of medium-sized goods, from cartons and packages to compact machinery. Additionally, the equipment can support machine repair and maintenance work.
Detailed technical specifications
| Parameter | Capacity 500 kg | Capacity 1000 kg | Capacity 2000 kg | Capacity 3000 kg |
| Minimum height (mm) | 190 | 190 | 190 | 220 |
| Maximum height (mm) | 1.010 | |||
| Platform size (mm) | 1300 x 800 | |||
| Lifting time (s) | 15 | 25 | 40 | 26 |
| Full load lifting speed (mm/s) | 55 | 40 | 22 | 30 |
| Full load lowering speed (mm/s) | 40 | 35 | 33 | 40 |
| Motor power (kW) | 1.1 | 1.1 | 1.5 | 1.5 |
| Weight (kg) | 160 | 220 | 280 | 320 |
| Working pressure (MPa) | 12 | 14 | 16 | 18 |
| Power supply (V) | 380 | |||
| Brand | Naltako | |||
| Place of origin | Vietnam | |||
| Type | Standard | |||
Advantages of the 1300x800mm platform lift table
✔️ Naltako’s 1300x800mm platform lift table has various load capacities (500kg, 1000kg, 2000kg, 3000kg), meeting many different usage needs.
✔️ Full load lifting speed up to 55mm/s helps save working time and increase labor productivity.
✔️ Uses 380V power supply, a common power source in factories and industries.
✔️ 1.1kW motor power is sufficient to lift heavy loads without overloading the motor.
✔️ Especially, this is a Naltako brand product, manufactured in Vietnam, helping to reduce costs and transportation time, while also being easy to maintain and repair.
Contact for consultation and quote
If you are interested in our products, please leave your information at the contact form or call our hotline: 0981.977.898 – 0986.868.003.
We commit to bringing you quality products, professional service, and competitive prices.
