1000/2000/4000kg Double Scissor Lift Table
The 1000/2000/4000kg hydraulic double scissor lift table is designed with two stacked scissor frames, allowing for greater lifting heights compared to standard single scissor lift tables.
The product also features a spacious anti-slip platform, high motor power, and a robust hydraulic system.
Specifications of Double Scissor Lift Table 1000/2000/4000kg
| Technical Specifications | 1000kg | 2000kg | 4000kg |
| Lifting Capacity (kg) | 1000 | 2000 | 4000 |
| Min. Lifting Height (mm) | 305 | 360 | 400 |
| Max. Lifting Height (mm) | 1780 | 1780 | 2050 |
| Platform Dimensions (mm) | 1300×820 | 1300×850 | 1700×1200 |
| Base Dimensions (mm) | 1240×640 | 1220×785 | 1600×900 |
| Lifting Time (seconds) | 35-45 | 35-45 | 55-65 |
| Motor Power (kW) | 1.5 | 2.2 | 3.0 |
| Power Voltage (V/Hz) | 380/50 | 380/50 | 380/50 |
| Weight (kg) | 210 | 290 | 520 |
| Hydraulic System | Hydraulic pump, hydraulic cylinder | Hydraulic pump, hydraulic cylinder |
Hydraulic pump, hydraulic cylinder
|
| Control Box | Push-button box, integrated emergency stop | Push-button box, integrated emergency stop |
Push-button box, integrated emergency stop
|
| Oil Flow Rate (l/min) | 6 | 8 | 10 |
| Hydraulic Oil Type | AW 46 Hydraulic Oil | AW 46 Hydraulic Oil |
AW 46 Hydraulic Oil
|
| Platform Material | Anti-slip checkered plate | Anti-slip checkered plate |
Anti-slip checkered plate
|
| Lift Frame Material | High-strength steel | High-strength steel |
High-strength steel
|
| Safety Standards | EN 1570, ASME B20.1 | EN 1570, ASME B20.1 |
EN 1570, ASME B20.1
|
Advantages and Limitations of Hydraulic Double Scissor Lift Tables
Advantages
The double scissor hydraulic lift table possesses many superior advantages compared to other types, especially the single scissor lift table.

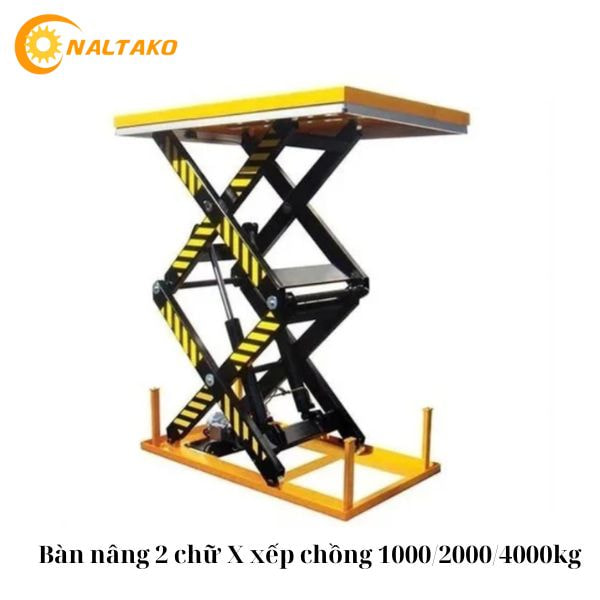

Close-up of Naltako’s 1000/2000/4000kg double scissor lift table
This design allows the lift table to achieve greater lifting heights, helping you easily access higher positions in warehouses or factories. Naltako’s 1000/2000/4000kg double scissor lift table can reach heights of over 2 meters.
The double scissor structure also helps the hydraulic lift table withstand significantly larger loads compared to the single scissor frame type, meeting heavy lifting needs (up to several tons).
The 1000/2000/4000kg double scissor hydraulic lift table is equipped with safety features such as overload valves, hydraulic safety valves, and emergency stop buttons, helping to prevent work accidents and protect goods.
Limitations
Although possessing many outstanding advantages, the double scissor hydraulic lift table also has certain downsides you need to consider before investing, such as:
Compared to the 1000/2000/4000kg single scissor hydraulic lift table of the same capacity, this product occupies more space during operation and storage.
The cost is higher than the single scissor hydraulic lift table by several million to tens of millions.
Maintenance is complex and costly due to the complicated structure.
Due to the high center of gravity, the double scissor lift table has poorer balance and stability. Therefore, when using it, customers should limit shaking and place goods in a balanced position on the platform.
For more details about the product and pricing, please contact us via hotline/zalo: Hotline: 0981 977 898 – 0986 868 003.
